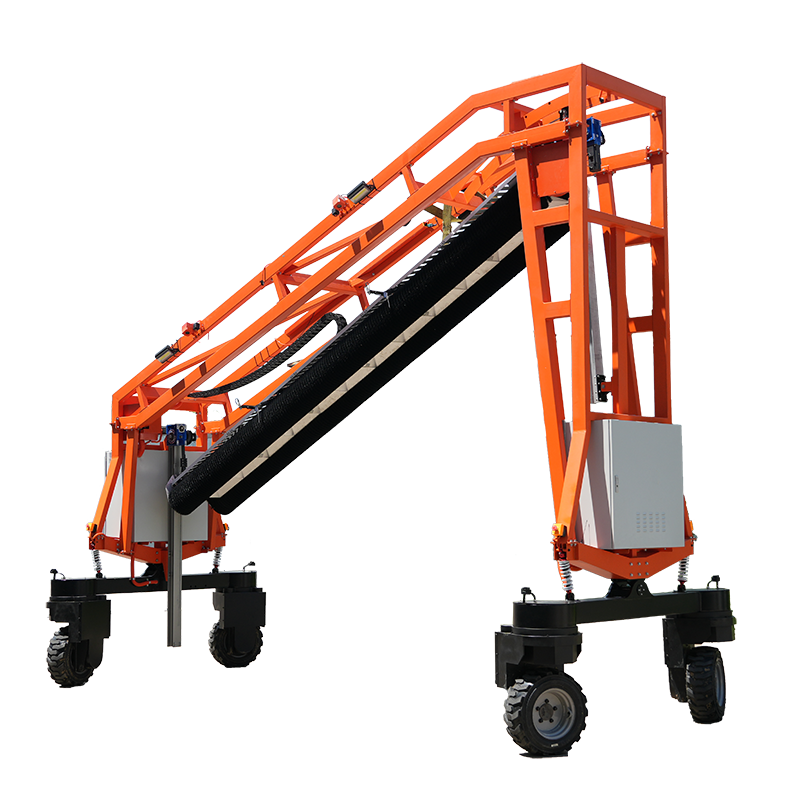

WLS-7-LM Intelligent Solar Panel Cleaning and Inspection Robot
Built by WANLV SUNNY
Overview
The WLS-7-LM is an intelligent solar panel cleaning and inspection robot designed for large-scale photovoltaic (PV) power stations. It features dual-mode operation (manual and autonomous), adaptive cleaning angles, and real-time fault detection, ensuring efficient, safe, and smart maintenance in dusty or remote environments. Ideal for utility solar farms seeking to reduce O&M costs and improve energy output, it adapts to different panel tilt angles and heights, making it suitable for various ground-mounted PV installations. The robot includes intelligent sensors for monitoring pressure, tilt, alignment, and cleaning conditions, and can identify abnormal panel conditions automatically.
Detailed specifications
Power & battery4
- Generator Power
- 5.5kW diesel generator, rated voltage 48V
- Battery Capacity
- 300Ah
- Battery Nominal Voltage
- 51.2 V
- Battery Working Temperature
- -30℃ to +70℃
Compute1
- Obstacle Crossing Ability
- ≥10cm
Other6
- Clean Area
- ≥12000㎡/h
- Cleaning Speed
- Up to m²/hour (customizable)
- Climbing Ability
- ≥10°
- Fault Detection Size
- 10mm×10mm (visible light camera), 30mm×30mm (Infrared camera)
- Adaptive Adjustment Range
- Height of lower edge of PV panel from ground: 0.3-1.4m, Tilt Angle: 25°-41°
- Comprehensive Cleaning Efficiency
- ≥95%
