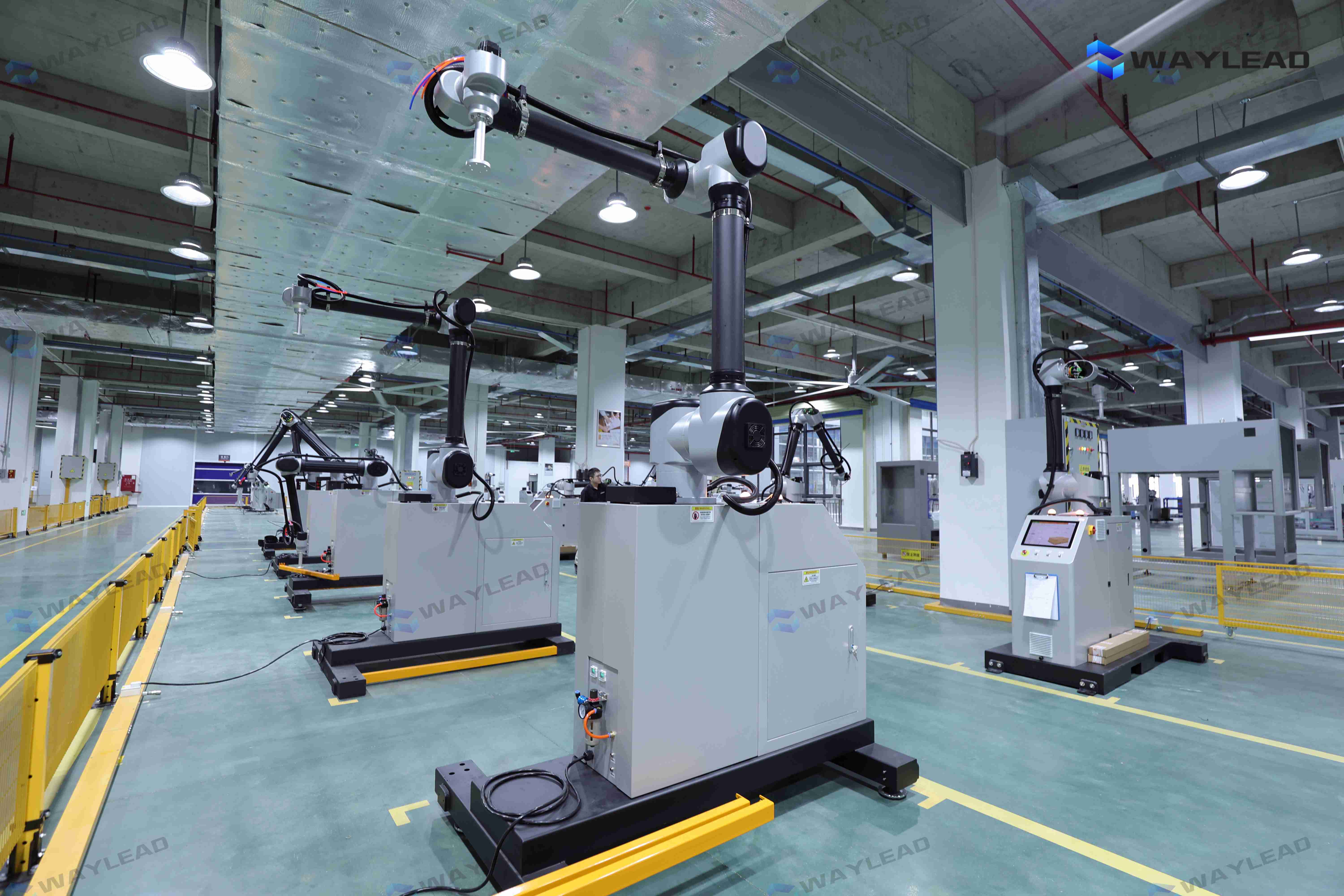

Advanced 30kg Payload Collaborative Robot for Efficient Palletizing
Built by Guangdong Wanerxin Intelligent Technology Co., Ltd.
Overview
30KG collaborative robot can independently complete palletizing operations or work side by side with humans to complete production tasks, replacing manual labor in handling and placing heavy objects, achieving 24-hour non-stop work. The simple operation mode not only saves a large amount of human labor resources, but also greatly improves production efficiency and the working environment. It is energy-saving and environmentally friendly, helping enterprises effectively achieve production goals and create considerable economic benefits.
Key facts
- Payload
- 30 kg
- Reach
- 1,680 mm
- Speed
- —
- Weight
- 600 kg
- IP rating
- —
- Battery
- —
- Power
- —
- Autonomy
- —
- Launch year
- —
- Price
- $15,500
- Status
- active
Detailed specifications
Motion & kinematics1
- Repeatability Mm
- 0.04
Power & battery2
- Power
- 3.3KW
- Power Consumption W
- 3500
Other26
- Area
- 6m³(including double stack)
- Model
- WEX-1800-30
- Air Supply
- 0.5-0.6kg/m³, 1.5M3 /min
- Price Tier
- 10-20K
- Applications
- palletizing
- Sub Category
- palletizing
- Total Height
- 2200-3000mm
- Communication
- TCPIP Ethernet,dry contact
- Datasheet Url
- https://www.autopacking-machines.com/photo/autopacking-machines/document/100036/Shanghai Waylead Intelligent Technology Co.,Ltd.pdf1.pdf
- Operating Temp
- 0-55°C
- Warranty Years
- 3
- Working Radius
- 1800mm
- Company Country
- CN
- Lead Time Weeks
- 4
- Deployment Notes
- PalletizeWJ robots have been utilized in various food production and packaging processes, showcasing successful implementation in autonomous packing applications.
- Industries Served
- 3C, automotive, semiconductor, pharmaceuticals, new energy, food
- Palletizing Speed
- 8-10 times/min
- Training Required
- basic_<1day
- Applicable Product
- Carton, Barrel
- Palletizing Height
- 300-2400mm (Pallet Included)
- Availability Status
- available
- Palletizing Gripper
- Suction Cup
- Extras.Contact Emails
- sales@aipalletizing.com
- Programming Interface
- drag_and_drop
- Additional Information
- - Capable of simultaneous palletizing of two types of boxes with up to 60 palletizing recipes. - Designed with a compact footprint for flexibility and mobility. - 24/7 technical support and lifetime assistance provided. - Customized design options available for clients.
- Applicable Pallet Dimensions
- 1200*1200*140(mm)
