Overview

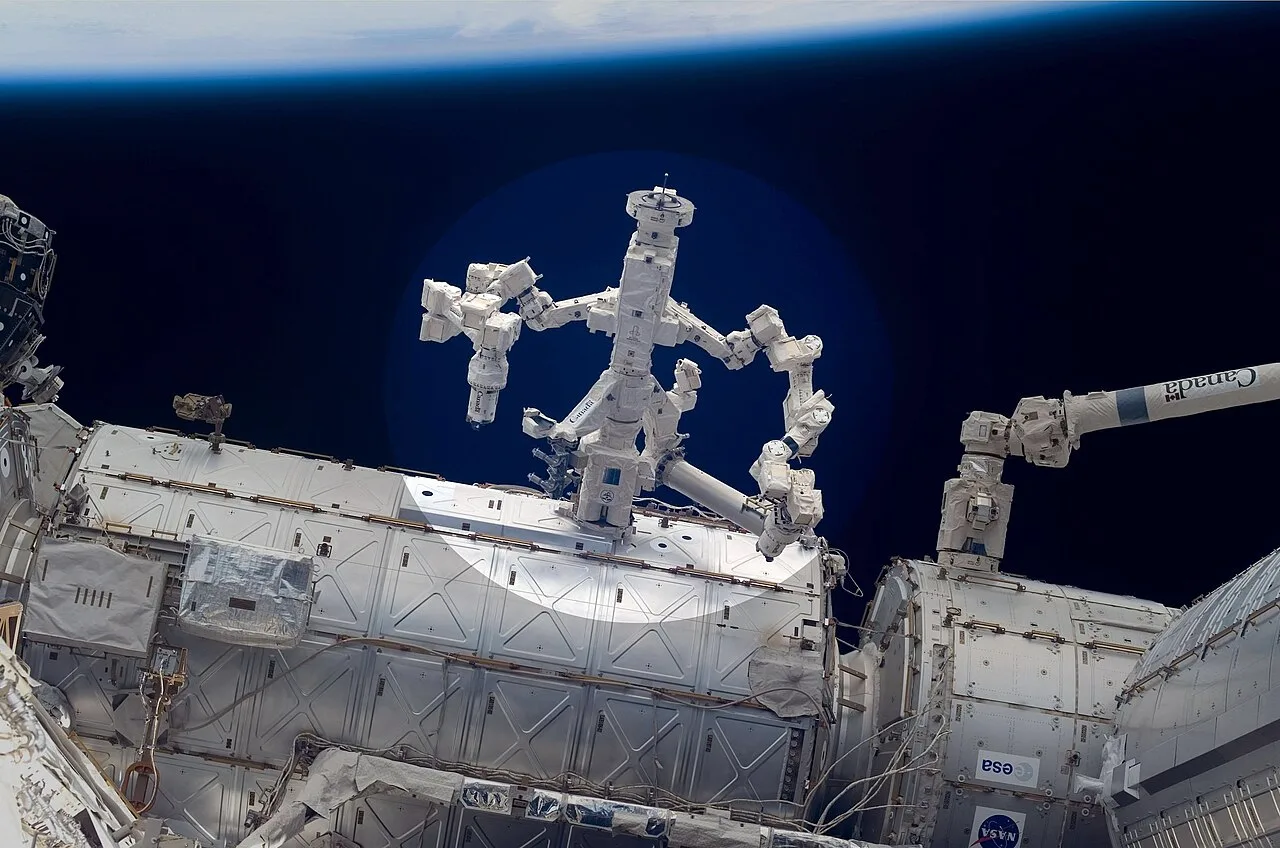

Dextre, also known as the Special Purpose Dexterous Manipulator (SPDM), is a two-armed robot, or telemanipulator, which is part of the Mobile Servicing System on the International Space Station (ISS), and does repairs that would otherwise require astronauts to do spacewalks. It was launched on March 11, 2008, on the mission STS-123. Dextre is designed to handle and complete orbital replacement units, making it capable of carrying spares and conducting complex tasks in orbit.
Flagship features
- Dextre is a 15-axis robotic arm system (two 7-joint arms plus a waist rotation joint) for space-based operations
- It is mounted on the Mobile Servicing System (MSS) on the International Space Station, created by the Canadian Space Agency
- Payload capacity is 600 kg per arm (at the end of the arm), though microgravity reduces the effective mechanical load
- The robot's primary role is external station maintenance, inspection, and experimental satellite refuelling
- It uses a 'force-moment sensor' at the end effector for fine manipulation
- Dextre was launched in 2008 on the Space Shuttle Endeavour (STS-123)
Specifications
Category: Industrial Arm- Arm class
- ultra heavy
- Payload
- 600 kg
- Reach
- 3500 mm
- Repeatability
- ±2 mm
- Weight
- 1660 kg
- Industries
- aerospace
Detailed specifications
Motion & kinematics1
- Dof Per Arm
- 7
Other10
- Height Mm
- 3700
- Applications
- Maintaining the International Space Station (ISS),Testing new robotic technology,Installing and replacing small equipment like cameras or batteries,Replacing defective components in electrical systems,Testing new tools and robotics techniques
- Sub Category
- space_manipulator
- Datasheet Url
- View Link
- Max Speed M S
- 0.1
- Company Country
- CA
- Deployment Count
- 1
- Deployment Notes
- Launched aboard Space Shuttle Endeavour on March 11, 2008; installed during spacewalk five days later by NASA astronauts Richard Linnehan and Mike Foreman. Maintains ISS by installing/replacing small equipment like cameras and 100-kg batteries, replacing defective electrical components, testing new tools[1][2][3][5].
- Compatible Vision
- true
- Additional Information
- - Dextre is a 15-axis robotic arm system (two 7-joint arms plus a waist rotation joint) for space-based operations. - It is mounted on the Mobile Servicing System (MSS) on the International Space Station, created by the Canadian Space Agency. - Payload capacity is 600 kg per arm (at the end of the arm), though microgravity reduces the effective mechanical load. - The robot's primary role is external station maintenance, inspection, and experimental satellite refuelling. - It uses a 'force-moment sensor' at the end effector for fine manipulation. - Dextre was launched in 2008 on the Space Shuttle Endeavour (STS-123). - The robot performed the RRM (Robotic Refueling Mission) experiments for satellite servicing. - It has an enhanced-vision system (Dextre Deployable Vision System) for inspection tasks. - Dextre is controlled from the Robotics Mission Control Centre at the Canadian Space Agency. - Not commercially available for terrestrial buyers; this is a one-of-a-kind government space asset. For the B2B database, it is an industrial arm designed specifically for space operations.
