Overview

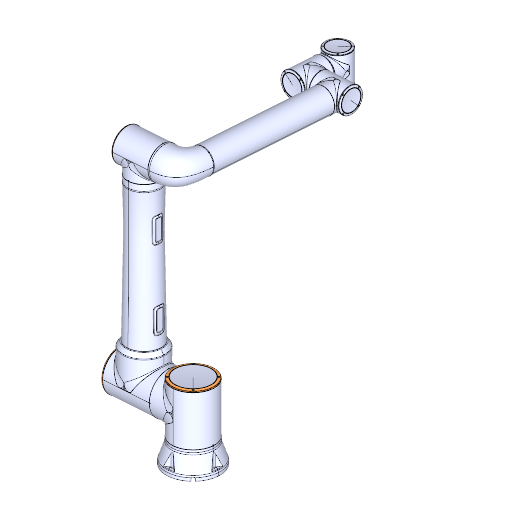

The Cobot FAIRINO FR10-V6.0 is a highly versatile 6-axis collaborative robot designed for industrial automation applications. With a payload capacity of 10 kg and a reach of 1400 mm, it offers precise operation with a repeatability of 0.05 mm and a maximum speed of 1.5 m/s. Featuring optional IP65 rating, the cobot supports various mounting orientations and integrates seamlessly with multiple communication interfaces, making it a reliable choice for enhancing productivity in diverse manufacturing environments.
Key facts
- Payload
- 10 kg
- Reach
- 1400 mm
- DOF
- 6
- Repeatability
- ±0.05 mm
- TCP speed
- 1.5 m/s
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Repeatability Mm
- 0.05
Power & battery1
- Power Supply
- 30-60VDC; output power 48VDC / 42A max
Compute1
- Ros Compatible
- true
Safety & certifications1
- Safety Certification
- ISO 9001, CE, CR, KCS, NRTL, RoHS 2.0, NSF, SEMI, ISO 10218, ISO 13849, ISO 15066
Other19
- Controller
- DC MINI Controller 2KW / AC MINI Controller 2KW
- Price Tier
- 40-80K
- Tool Flange
- 4 × M6 thread holes, strength class ≥8.8, bolt torque 8 Nm
- Applications
- deburring, multiaxis cutting, polishing, robot milling, trimming
- Api Available
- true
- Datasheet Url
- https://a.storyblok.com/f/298593/d792f196d2/fairino_product_brochure_env_12-0.pdf
- Max Speed M S
- 1.5
- Model Variants
- FR10 - IP54 Standard, FR10 - IP65 rated, FR10 - IP54 Standard - Black Edition
- Operating Temp
- 0-45℃
- Lead Time Weeks
- 1
- Deployment Notes
- Used by Nestlé for high-speed ice cream packaging.
- Mounting Options
- any orientation
- Industries Served
- automotive, food_and_beverage, healthcare
- Software Platform
- ENCY Robot
- Training Required
- none
- Fieldbus Protocols
- Modbus_TCP/RTU, TCP/IP
- Availability Status
- available
- Programming Interface
- no_code_gui
- Additional Information
- - Excellent performance with patented design solutions and stability. - Flexible deployment with graphical programming and easy installation at any production line position. - Efforts to support diverse needs through a complete ecosystem and various communication protocols.
