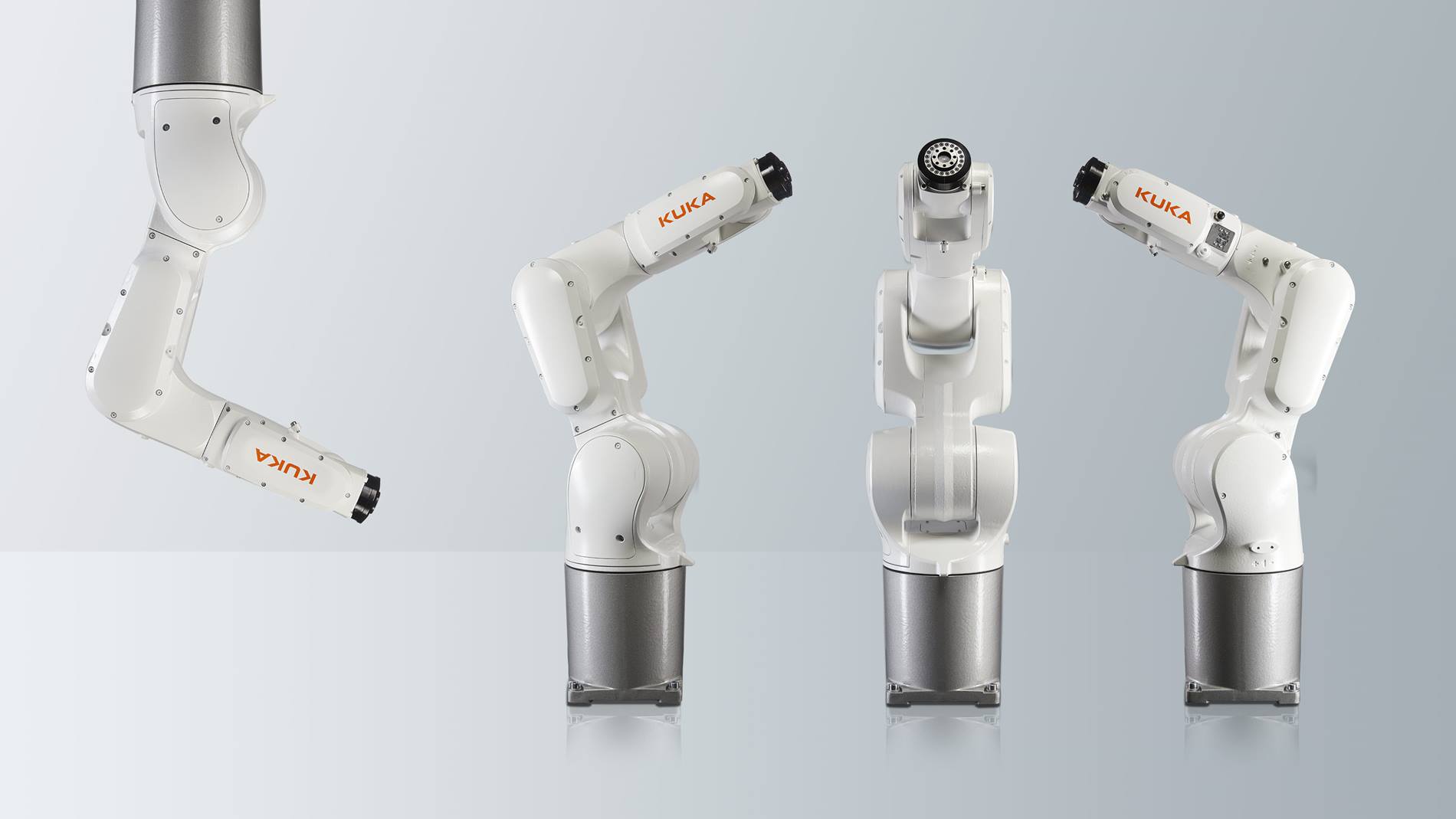

Overview
4–10 kg, small footprint
Key facts
- Payload
- 10 kg
- Reach
- 1101 mm
- DOF
- 6
- Repeatability
- ±0.02 mm
- TCP speed
- 2.5 m/s
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Repeatability Mm
- 0.02
Safety & certifications1
- Safety Certification
- ISO 14644-1, ESD protection, Fraunhofer TESTED DEVICE®, CSM®
Other13
- Price Tier
- 40-80K
- Applications
- palletizing, pick_and_place, machine_tending, lab_automation, packaging, assembly, arc_welding
- Max Speed M S
- 2.5
- Model Variants
- KR 6 R700-2, KR 6 R700-2 EP, KR 6 R900-2, KR 6 R900-2 EP, KR 6 R900-2 HO, KR 10 R1100 CR, KR 10 R1100 EX, KR 10 R1100 HM-SC, KR 10 R1100 WP, KR 10 R900 CR, KR 10 R900 HM-SC, KR 10 R900 WP, KR 10 R1100-2, KR 10 R1100-2 EP, KR 10 R1100-2 HO, KR 10 R900-2, KR 10 R900-2 EP
- Operating Temp
- 0°C to 55°C
- Company Country
- DE
- Deployment Notes
- Notable deployments include applications in cleanrooms, pharmaceuticals, and food processing.
- Mounting Options
- Ceiling, Floor, Wall
- Industries Served
- electronics, food_and_beverage, pharmaceutical
- Software Platform
- iiQKA.OS2
- Availability Status
- available
- Programming Interface
- teach_pendant, drag_and_drop
- Additional Information
- - Designed for high working speeds and precision in confined spaces. - Variants available for cleanrooms, hygienic use, and extreme environments. - Winner of the reddot Award 2016. - Robust design with minimal maintenance due to lifetime lubrication. - Suitable for ESD-sensitive environments.
