Not enough evidence to rank. Listed among 448 Cobot robots; 200 carry a rank.
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Strong evidence
No named customers yet. The score uses the rest of its record.
4 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 4 checks with data. Checks without data are left out.
Overview

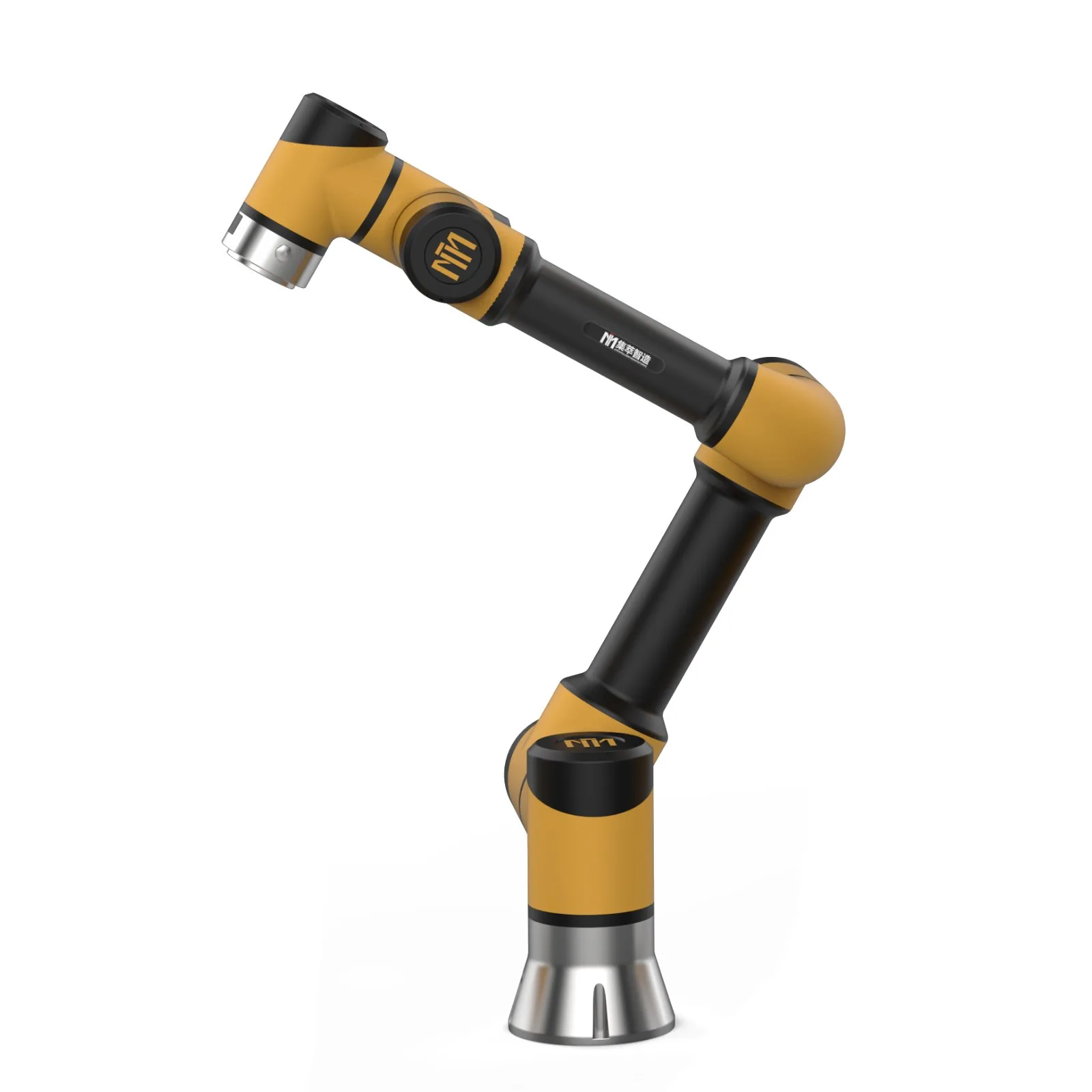

3kg Payload Industrial 6-Axis Collaborative Robot Cobot Robotic Arm with Working Table - 6 Axis Robot and Lathe Automation
Key specs
- Built for assembly, machine tending and packaging
- Used across palletizing, laser welding and dispensing
- Programmed through Linux system platform and Ethernet protocol (TCP/IP)
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Six axis collaborative
- 6
- IP54
- ISO/TS 15066
- Yes
- None
- No
97% of cobot robots have it
88% of cobot robots have it
- 3 kg
- 600 mm
- ±0.02 mm
- 13 kg
Carries more than 9% of 430 Cobot robots with this spec
Reaches further than 6% of 402 Cobot robots with this spec
More precise than 78% of 372 Cobot robots with this spec
Heavier than 15% of 259 Cobot robots with this spec
Detailed specifications
What it is built for1
- Applications
- assembly,machine tending,packaging,painting,pick and place,lathe automation
Size & capacity2
- Transport Package
- Wooden Box
- Production Capacity
- 5000/Year
Movement & precision1
- Drive Mode
- Servo Drive
Sensing & perception2
- Torque Feedback Module
- Yes
Controls & integration1
- ethernet
Buying & support3
- Origin
- China
- Trademark
- Hayea
- 10-20K
Other details12
- Weight
- 300kg
- User Io
- 16/16
- Protocol
- Ethernet , Modbus-RTU/TCP ,Profinet(Options)
- Functions
- Auto Picking Placing for Turning Drilling Grinding
- Tray Size
- 500*430mm*3
- End Of Tools
- Suction Cup/Gripper
- Input Voltage
- Single Phase 220V
- Specification
- Autoload-HY-018
- Auto Detection
- Visual Inspection/Air Leak/Gauging/Others
- Degrees Of Freedom
- 6
- After Sales Service
- Online Support
- Reposition Accuracy
- ±0.02mm
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
14 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2019MilestoneCompany established
- 2019Milestone10,000+ automation systems delivered
- Not yet on fileMilestoneIIMT-CI-03 product listing
- Not yet on fileMilestoneCollaborative robot catalog inclusion
Compare with
More by Dongguan Hayea Automation
Frequently asked questions
- Who makes the IIMT-CI-03?
- The IIMT-CI-03 is developed by Dongguan Hayea Automation, based in China.
- What type of robot is the IIMT-CI-03?
- The IIMT-CI-03 is a Cobot made by Dongguan Hayea Automation.
- How much does the IIMT-CI-03 cost?
- Pricing for the IIMT-CI-03 is not publicly listed. Contact Dongguan Hayea Automation for a quote.
- What are the key specifications of the IIMT-CI-03?
- Key specifications of the IIMT-CI-03: type six axis collaborative, axes 6, payload 3 kg, reach 600 mm, repeatability ±0.02 mm.
