Overview

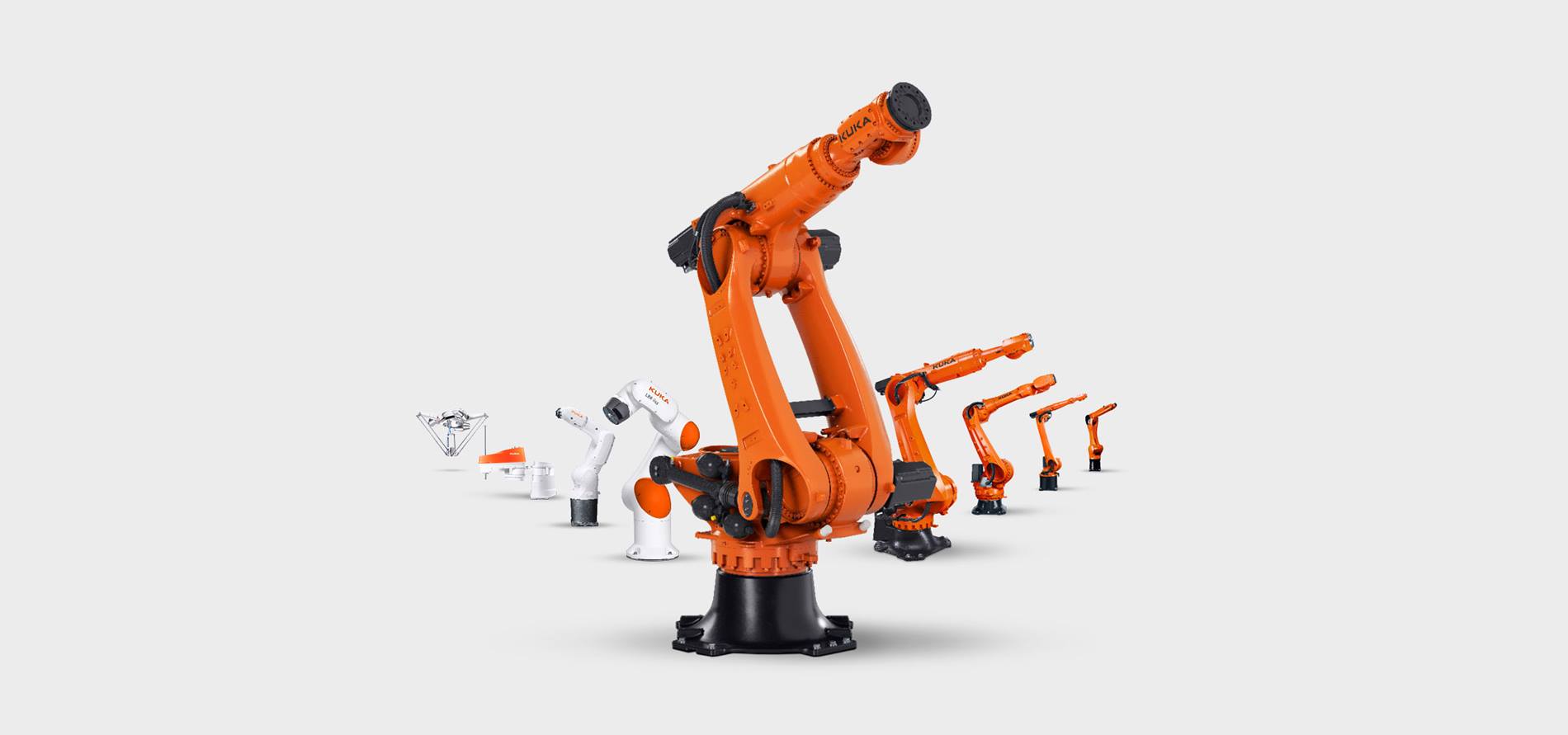

The KR 470 PA robotic arm offers heavy-duty lifting capabilities of 300-470 kg, suitable for tasks that require robust performance and reliability in challenging environments.
Key facts
- Payload
- 470 kg
- Reach
- 3150 mm
- Repeatability
- ±0.08 mm
- Controller
- KR C5[1]
Detailed specifications
Motion & kinematics1
- Repeatability Mm
- 0.08
Safety & certifications1
- Safety Certification
- IP 65[1][2]
Other10
- Arm Class
- heavy_payload
- Applications
- palletizing, handling
- Sub Category
- palletizing
- Procedure Types
- palletizing[1][2][3]
- Controller Model
- KR C5[1]
- Mounting Options
- floor
- Compatible Vision
- Pick-it 3D Pick-It L, Pick-it 3D Pick-It L-HD, Pick-it 3D Pick-It M-HD
- Industries Served
- logistics, general_manufacturing
- Software Platform
- KR C5
- Additional Information
- - Compact design and low weight for maximum process efficiency. - Hollow wrist design with a 60 mm pass-through opening for easy cable routing. - Long maintenance intervals and reliable operation due to robust construction. - Ideal for high-speed operations in the heavy payload class.
