Overview

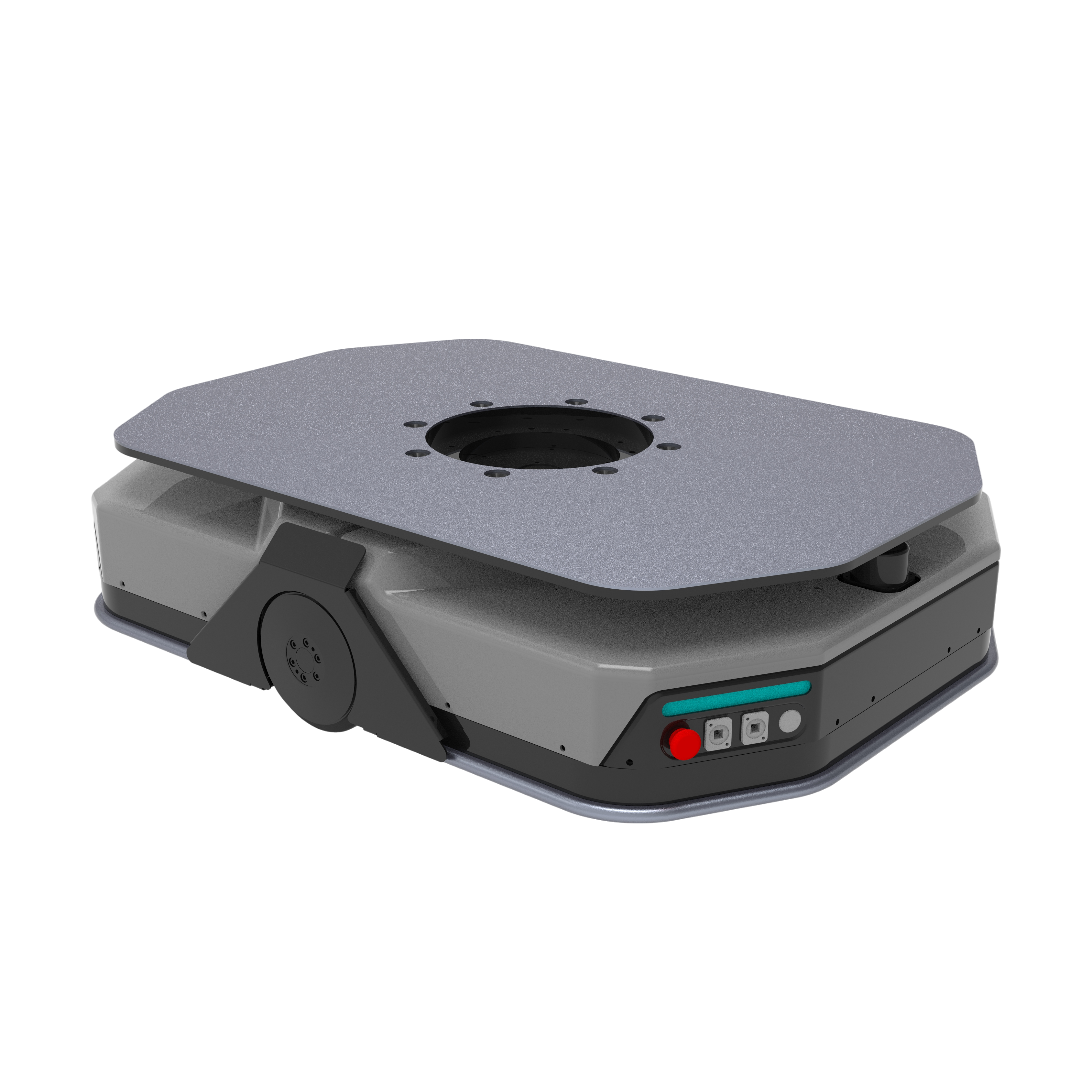

1000kg Heavy-Duty Industrial AMR - Cost-Effective Performance Matching World-Class Leading Agv Manufacturers
Key facts
- Payload
- 1000 kg
Detailed specifications
Motion & kinematics1
- Position/Angle Accuracy
- ±5 mm / ±0.5°
Power & battery2
- Battery Spec
- 51.2V / 40Ah (LFP)
- Runtime/Charge Time (10% 80%)
- 8h / ≤1h
Safety & certifications1
- Safety Features
- Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Other34
- Type
- AMR (Autonomous Mobile Robot)
- Origin
- Luoyang
- HS Code
- 8427109000
- Model NO.
- CSK10-BH/CSL10-TT
- Trademark
- Rock
- Applications
- goods_to_person, case_picking
- Max Speed Ms
- 2
- Charging Mode
- Manual / Auto
- Load Capacity
- 1000kg
- Specification
- Stardard
- Auto Charging
- true
- Max Speed M S
- 1.5
- Model Variants
- 1000kg Heavy-Duty Agv with Auto-Weight Sensing, 1000kg Heavy-Duty Pallet Handling Agv, 1000kg Heavy Load Agv with Anti-Slip Platform, 1000kg Bulk Material Handling Agv, 1500kg Autonomous AMR with Extended Operational Range, 1500kg Heavy-Duty Warehouse Agv, 600kg Autonomous Agv with Wms/Mes Sync, 1000kg Heavy-Duty Agv for Outdoor & Rough Terrain Operations, 600kg Heavy Load Agv for E-Commerce Warehouses, 400kg Heavy-Duty Light Industrial AMR, Compact 400kg Industrial AMR, 600kg Modular Autonomous Agv AMR, 1000kg Agv with Modular Design, 600kg Compact High-Load AMR, Agv with 360° Safety Sensing & Collision Avoidance, Low-Profile 400kg Industrial Agv, 600kg High-Stability Agv, 300kg Single-Arm Slam Handling Robot with Modular Fork Design, 400kg Payload Industrial Agv AMR, 300kg Single-Arm Slam Handling Robot for Retail Backrooms
- Operating Temp
- 0ºC~50ºC / ≤5% RH
- Warranty Years
- 1
- Max Lift Stroke
- 60±2 mm
- Standard Config
- LiDAR/Key Parts 1(H1)+1(C2) / E-Stop/Speaker/Bumper
- Company Country
- CN
- Lead Time Weeks
- 2
- Navigation Type
- magnetic_tape, nail, QR_code, laser, SLAM
- Ground Clearance
- 20 mm
- Turning Diameter
- 1220 mm
- Min Passage Width
- 940 mm
- Transport Package
- Wodden
- Industries Served
- logistics, e-commerce, retail, healthcare
- Lift Platform Size
- 1030 × 770 mm
- Optional Functions
- QR Code Positioning/Navigation/Laser Reflector Navigation
- Standard Functions
- Core Features Wi-Fi Roaming/Auto Charging/Rack Recognition/Follow Mode
- Floor Clearance Mm
- 21
- Obstacle Detection
- true
- Production Capacity
- 500 Pieces/Year
- Dimensions (L×W×H)
- 1150 × 800 × 250 mm
- Additional Information
- - Otonom olarak yol ve operasyonel stratejileri ayarlayabilme yeteneği - Gerçek zamanlı ekipman durumu geri bildirimi - Kullanıcı dostu arayüz ile kolay işletim - 360 derece çarpışma önleme sistemi - Akıllı güç yönetimi sistemi
- Passability (Slope/Step/Gap)
- ≤5% / 5 mm / 30 mm
