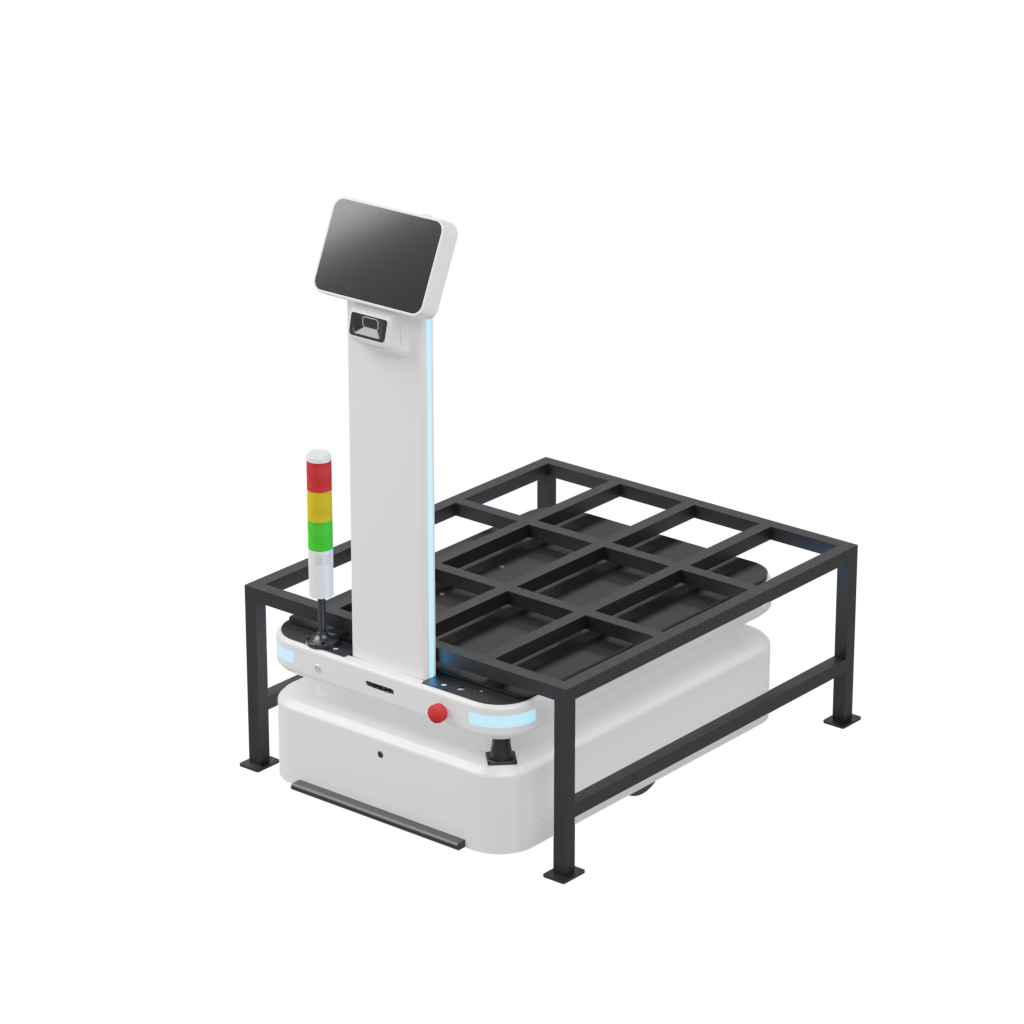

Cost-Effective 600kg Industrial AMR
Overview
Industrial-Grade 600kg Agv for Heavy Loads - Equivalent to Premium International Brands Reliability
Key facts
- Payload
- 600 kg
Detailed specifications
Motion & kinematics1
- Position/Angle Accuracy
- ±5 mm / ±0.5°
Power & battery3
- Battery Spec
- 51.2V / 20Ah (LFP)
- Charge Time Hours
- 1.1
- Runtime/Charge Time (10% 80%)
- 8h / ≤1h
Safety & certifications2
- Safety Features
- Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
- Safety Certification
- CE
Other33
- Type
- AMR (Autonomous Mobile Robot)
- Origin
- Luoyang
- HS Code
- 8427109000
- Model NO.
- CSK06-YF
- Trademark
- Rock
- Applications
- goods_to_person, towing
- Max Speed Ms
- 5
- Charging Mode
- Manual / Auto
- Load Capacity
- 600kg
- Specification
- Stardard
- Auto Charging
- true
- Datasheet Url
- https://robotindustries.com/shop/rilog60060tpamr-ri-log60060-amr-lifting-logistic-robot-2827
- Max Speed M S
- 1.5
- Fleet Software
- KUKA.AMR Fleet
- Operating Temp
- 0ºC~50ºC / ≤5% RH
- Max Lift Stroke
- 60±2 mm
- Standard Config
- LiDAR/Key Parts: 1(H1)+1(C2) / E-Stop/Speaker/Bumper
- Company Country
- CN
- Navigation Type
- lidar_slam, vision, qr_code, magnetic_tape, reflector, natural_landmark, hybrid, gps
- Ground Clearance
- 25 mm
- Turning Diameter
- 965 mm
- Min Passage Width
- 790 mm
- Transport Package
- Wodden
- Industries Served
- E-Commerce and Retail Logistics, Automotive Industry, Healthcare
- Software Platform
- Android 11 + Linux (Ubuntu)
- Lift Platform Size
- 850 × 600 mm
- Optional Functions
- QR Code Positioning/Navigation/Laser Reflector Navigation
- Standard Functions
- Core Features: Wi-Fi Roaming/Auto Charging/Rack Recognition/Follow Mode
- Obstacle Detection
- true
- Production Capacity
- 500 Pieces/Year
- Dimensions (L×W×H)
- 950 × 650 × 250 mm
- Additional Information
- - Designed for heavy load transportation - Capable of moving weights up to 600kg - Equipped with dynamic obstacle detection and safety features - Suitable for various warehouse settings
- Passability (Slope/Step/Gap)
- ≤5% / 5 mm / 30 mm
