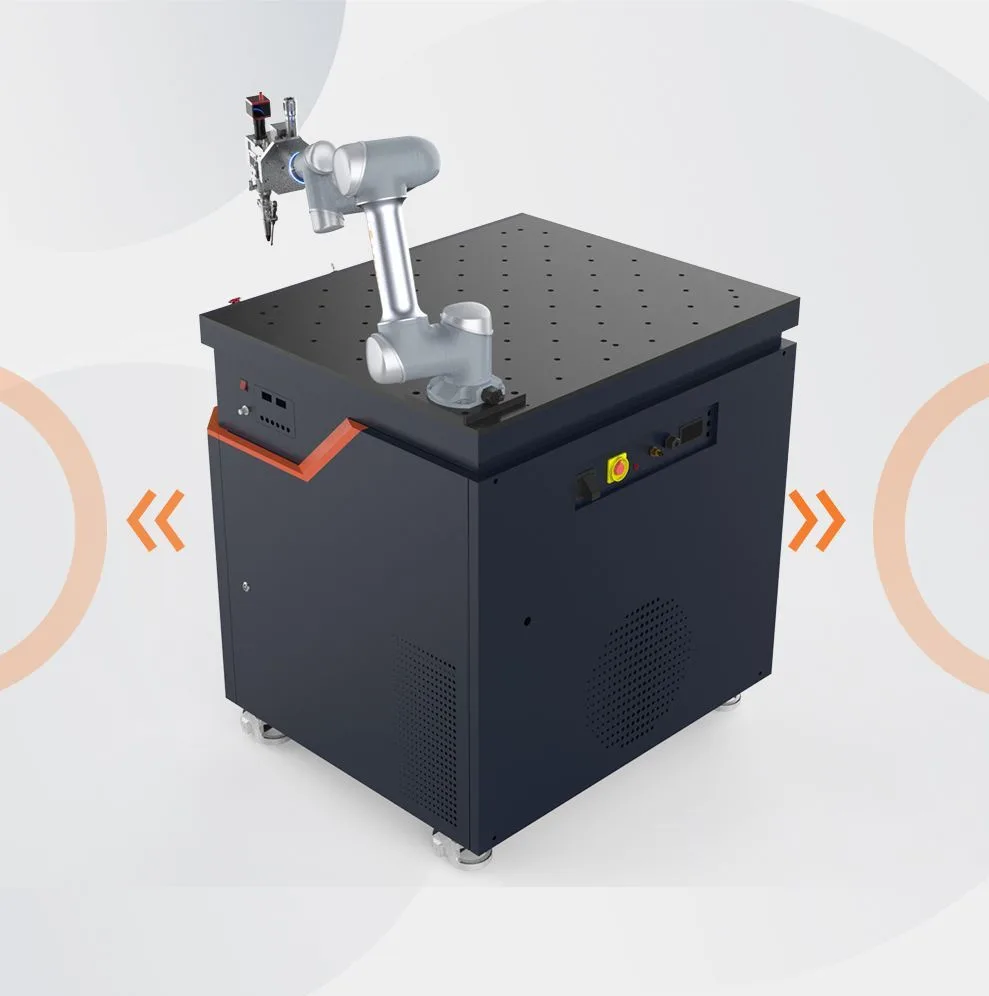

6 Axis Collaborative Laser Welding Machine
Built by Shandong UMW Technology
Updated May 2026·methodology
Overview
Designed for precision and flexibility, our Cobot Laser Welding system combines industrial-grade accuracy (±0.02mm) with human-robot collaboration. Ideal for electronics, and small-batch manufacturing, it redefines efficiency in tight spaces with lightweight design and plug-and-play deployment.
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- ≤ 20 kg
- Reach
- ≤ 2100 mm
- Repeatability
- ±0.05 mm
- Weight
- 25 kg
- TCP speed
- ≤ 0.03333333333333333 m/s
- IP rating
- IP65
- Safety cert.
- ISO 10218 compliant
- Force limiting
- Yes
- F/T sensing
- none
- No-code
- No
Detailed specifications
Power & battery2
- Laser Power
- 1500W, 2000W, 3000W
- Power Supply
- 100-240VAC, 47-63Hz, 10a
Compute1
- Ros Compatible
- false
Other26
- Origin
- Shandong, China
- HS Code
- 8456100090
- Trademark
- UMW
- Price Tier
- 10-20K
- Applications
- welding,cleaning,3c,food,logistics,education
- Sub Category
- 6-axis cobot
- Specification
- 1300*1300*1250mm
- Welding Heads
- Automatic Laser Gun
- Pricing Model
- purchase
- Model Variants
- UA10-1300,UA5-910,UA3-618
- Operating Temp
- -10°C to 45°C
- Warranty Years
- 2
- Company Country
- CN
- Deployment Notes
- Suitable for small automotive parts, medical device housings, and laptop computer casings with a 1m x 1m workbench for high-precision welding.
- Mounting Options
- floor,wall,ceiling
- Industries Served
- automotive,manufacturing
- Training Required
- basic_<1day
- Production Capacity
- 600sets/Month
- Availability Status
- available
- Compatible Grippers
- Handheld laser guns,Automatic laser heads
- Countries Available
- North America,South America,Europe,Africa,Asia,Mideast,Australia
- Application Material
- Carbon Steel, Stainless Steel, Galvanized Sheet
- Extras.Contact Emails
- [email protected]
- Programming Interface
- teach_pendant,drag_and_drop
- Additional Information
- Supports continuous welding and varying types of welding including spot and sealing.,User-friendly with a graphical interface for trajectory visualization and operation.,Equipped with high-performance fiber laser with adjustable welding torch angle.,Ideal for curved and irregular shapes due to the optional oscillating head.
- Control System Protocols
- TCP/IP, ModbusTCP, Profinet, Ethernet/IP
