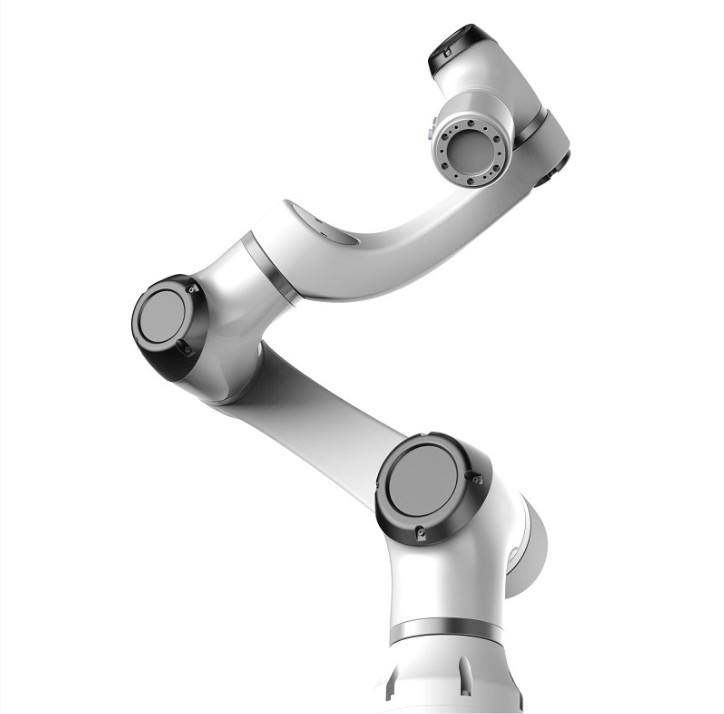

6-Axis Industrial Collaborative Robot for Material Handling
Built by Shenzhen Yzbcnc Technology Co., Ltd.
Overview
6-Axis Industrial Collaborative Robot for Material Handling
Key facts
- Payload
- 18 kg
- Reach
- 1100 mm
- DOF
- 6
- Repeatability
- ±0.02 mm
- TCP speed
- [object Object] m/s
Detailed specifications
Motion & kinematics3
- Dof
- 6
- Allowable Torque
- {"J4":"37.8Nm","J5":"18.9Nm","J6":"11.08Nm"}
- Repeatability Mm
- 0.02
Power & battery4
- Voltage
- AC220V
- Power Consumption W
- 600
- Rated Power / Voltage / Current
- 1.95KW / Single-phase AC220V / 9.3A
- Machine Power Box Connection Cable Lengths
- 3
Compute1
- Package Gross Weight
- 60
Safety & certifications1
- Safety Certification
- UL
Other23
- Price Tier
- 10-20K
- Package Size
- 500.00cm * 310.00cm * 250.00cm
- Applications
- material_handling
- Max Speed M S
- {"J1":4.18,"J2":3.66,"J3":4.71,"J4":6.54,"J5":5.23,"J6":10.5}
- I/O Parameters
- 16Pin Input, 16Pin Output
- Pneumatic Tube
- 1*Φ6
- Operating Temp
- 0~50°
- Warranty Years
- 1
- Range Of Motion
- {"J1":"±360°","J2":"-240°/+60°","J3":"-60°/+240°","J4":"±360°","J5":"±360°","J6":"±360°"}
- Company Country
- CN
- Deployment Notes
- This cobot is utilized in factories for various industries including automotive and food manufacturing.
- Industries Served
- automotive, food_and_beverage, healthcare, electronics
- Fieldbus Protocols
- TCP/IP, Modbus
- Installation Method
- Ground-mounted, Upside-down mounted
- Availability Status
- available
- Extras.Contact Emails
- autocell@163.com
- Programming Interface
- teach_pendant
- Applicable Environment
- Temperature: 0°C-45°C, Humidity: 20%-80%, Others: Avoid contact with flammable or corrosive gases and liquids; Keep away from electronic noise (plasma)
- Additional Information
- - Core components include PLC and motor., - Online support and remote technical guidance available., - Gross weight of the finished product is 78kg.
- Body Reserved Signal Line
- 8
- Allowable Moment Of Inertia
- {"J4":"2.08kg·m²","J5":"0.54kg·m²","J6":"0.37kg·m²"}
- Teach Pendant Cable Lengths
- 8
- Protection Level (Body/Electric Cabinet)
- IP67 / IP20
