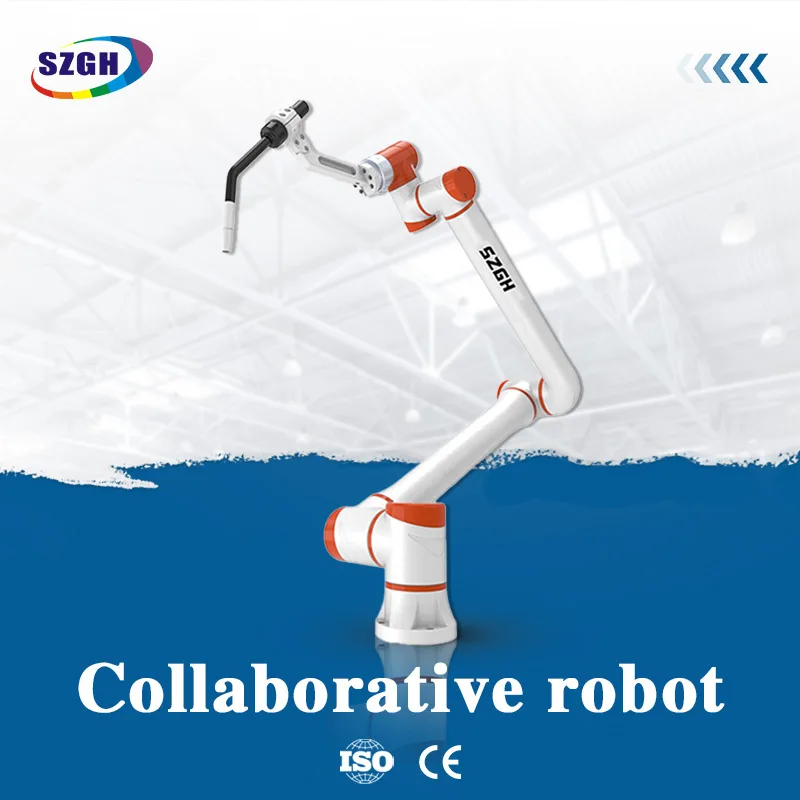

SZGH-1820-A
Built by Shenzhen Guanhong Automation · China
The SZGH-1820-A is a Industrial Arm developed by Shenzhen Guanhong Automation (China), priced at $2,999–$8,016 USD. Key specifications: arm class small payload, payload 6 kg, reach 1850 mm, repeatability ±0.05 mm.
Robo Index
Strong evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how SZGH-1820-A measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview
SZGH-1820-A is designed for high-precision and high-efficiency welding applications. With a maximum arm span of 2027 mm and a 20 kg payload, this robot delivers outstanding performance while maintaining a compact and flexible structure. It supports tool speeds up to 4000 mm/s and achieves 0.05 mm repeat positioning accuracy, ensuring stable and accurate operation in fast-paced industrial environments.
Flagship features
- The robot body is made of aluminum for lightweight and high speed (25% faster acceleration)
- Uses RV reducer for higher accuracy and reduced downtime, improving stability
- Low daily maintenance cost
- Target applications include loading/unloading, palletizing, stamping, CNC tending, and general handling
- Compatible with multiple end-effector types: suction cups, grippers, clamps
- No ROS support mentioned
Buyer decision signals
Viability
Electronic manufacturing loading/unloading demo published
Price
purchase
Availability
Specifications
Category: Industrial Arm- Arm class
- small payload
- Payload
- 6 kg
- Reach
- 1850 mm
- Repeatability
- ±0.05 mm
- Weight
- 165 kg
- Mounting
- floor, ceiling
- Controller
- Integrated (All-In-One)
- Programming
- teach pendant,proprietary app
- Safety cert.
- CE
- Industries
- automotive, general_manufacturing
Company profile
- Founded
- 2010
Detailed specifications
Motion & kinematics1
- Dof
- 6
Power & battery1
- Rated Power
- 1500
Safety & certifications1
- Certifications
- CR,SEMI S2,NRTL
Other27
- Structure
- Articulated
- Price Tier
- 10-20K
- Noise Level
- 60
- Applications
- arc_welding
- Max Speed J1
- 180
- Max Speed J2
- 180
- Max Speed J3
- 210
- Max Speed J4
- 270
- Max Speed J5
- 270
- Max Speed J6
- 270
- Sub Category
- 6-axis cobot
- Tool Port Io
- 24V/1A power supply1, DI2, DO2, AI2
- Max Speed M S
- 4
- Pricing Model
- purchase
- Tool Port Com
- 24V/1A power supply1, RS4851, EtherCAT*1
- Operating Temp
- -5~55℃
- Company Country
- CN
- Motion Range J1
- -360°~360°
- Motion Range J2
- -360°~360°
- Motion Range J3
- -165°~165°
- Motion Range J4
- -360°~360°
- Motion Range J5
- -360°~360°
- Motion Range J6
- -360°~360°
- Training Required
- basic_<1day
- Availability Status
- available
- Additional Information
- - Unique selling points: Independent R&D, designed for novice users; Easy operation with mature process package configuration; IO boards and external axes can be added directly; Strong anti-interference ability for accurate positioning; Japanese Daiden motor with 20 million times torsion resistance; Six-axis motor is rear-mounted with bevel gear transmission for compact structure, small end inertia, and flexible movement. - The robot body is made of aluminum for lightweight and high speed (25% faster acceleration). - Uses RV reducer for higher accuracy and reduced downtime, improving stability. - Low daily maintenance cost. - Target applications include loading/unloading, palletizing, stamping, CNC tending, and general handling. - Compatible with multiple end-effector types: suction cups, grippers, clamps. - No ROS support mentioned. - No pricing information available; contact sales for quote.
- Local Service Location
- Romania, Turkey, Mexico
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Shenzhen Guanhong Automation Co., Ltd. or an authorized seller.
Request a quote — goes straight to Shenzhen Guanhong Automation Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Dec 2024DeploymentElectronic manufacturing loading/unloading demo published
- Apr 2023DeploymentNorth America partner project using SZGH-S600-B-4
- Nov 2013MilestoneAlternate founding date listed on affiliated site
- Nov 2010MilestoneCompany established
- —MilestoneZ-Arm 1832 specification pages describe the model
- —Launch4 Axis SZGH-Arm-1832 product page published
- —MilestoneSZGH-1820-A specifications published
- —MilestoneSZGH-BCK5 product page published
Compare with peers
More by Shenzhen Guanhong Automation
- Szgh-S600-B-4 SCARA Robotindustrial-arm
- SZGH-H2100-B-6industrial-arm
- SZGH-H1850-B-6industrial-arm
- SZGH-HZ1500-B-6industrial-arm
- SZGH-BCK5industrial-arm
- SZGH-S450-A-4industrial-arm
- SZGH-BCK5 Collaborative Robotic Armcobot
- SZGH-HZ1850-B-6industrial-arm
- Szgh-S800-B-4 Scara Robotindustrial-arm
- SZGH-T750-B-6industrial-arm
Frequently asked questions
- Who makes the SZGH-1820-A?
- The SZGH-1820-A is developed by Shenzhen Guanhong Automation, based in China.
- What type of robot is the SZGH-1820-A?
- The SZGH-1820-A is a Industrial Arm made by Shenzhen Guanhong Automation.
- How much does the SZGH-1820-A cost?
- The SZGH-1820-A is priced at $2,999–$8,016 USD.
- What are the key specifications of the SZGH-1820-A?
- Key specifications of the SZGH-1820-A: arm class small payload, payload 6 kg, reach 1850 mm, repeatability ±0.05 mm, weight 165 kg.
