Overview

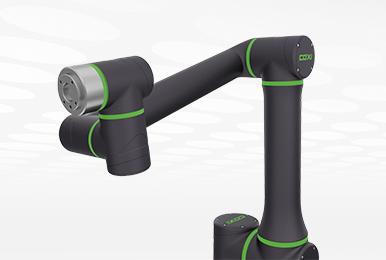

A 6-axis collaborative robot arm (cobot) with 9 kg payload, 1500 mm reach, IP65 protection, and drag-teach programming. Designed for spray painting, stamping, assembly, and inspection applications. The core components are independently developed, offering stability and high performance. The robot features collision detection for safe human-robot collaboration and a soft-body design to reduce impact injuries. It is lightweight, easy to move, and requires no safety fences, making it suitable for small-batch and multi-variety production. The robot is controlled via EtherCAT at 1kHz and has a maximum tool speed of 3 m/s. It can be installed at any angle. The product line includes multiple models from 3 kg to 30 kg payload. The company claims the x series robots have the world's first ATEX explosion-proof certificate (EU standard).
Detailed specifications
Motion & kinematics12
- Joint 1 Max Speed
- 150°/s
- Joint 2 Max Speed
- 150°/s
- Joint 3 Max Speed
- 210°/s
- Joint 4 Max Speed
- 240°/s
- Joint 5 Max Speed
- 240°/s
- Joint 6 Max Speed
- 240°/s
- Joint 1 Motion Range
- ±360°
- Joint 2 Motion Range
- ±360°
- Joint 3 Motion Range
- ±165°
- Joint 4 Motion Range
- ±360°
- Joint 5 Motion Range
- ±360°
- Joint 6 Motion Range
- ±360°
Power & battery1
- Rated Power W
- 550
Sensors2
- Maximum Arm Span Mm
- 1500
- Maximum Speed Tool End M Per S
- 3
Compute1
- Package Gross Weight Kg
- 50
Other18
- Axes
- 6 axis
- Price
- Cost Effective
- Quality
- Best
- Material
- aluminum alloy
- Noise DB
- 60
- Ce Marked
- true
- Condition
- new
- Drive Mode
- electric
- Control Bus
- EtherCAT/1KHz
- Tool Com Port
- 1-24V/1A Power; 1-RS485; 1-EtherCAT
- Tool I O Port
- 1-24V/1A Power; 2-DI; 2-DO; 2-AI
- Company Website
- View Link
- Package Size Cm
- 60.00*60.00*80.00
- Specification Kg
- 37
- Transport Package
- wood box
- Installation Method
- any angle
- Production Capacity
- 20000 PCS/Year
- Working Temperature Range
- -5°C to 55°C
