Overview

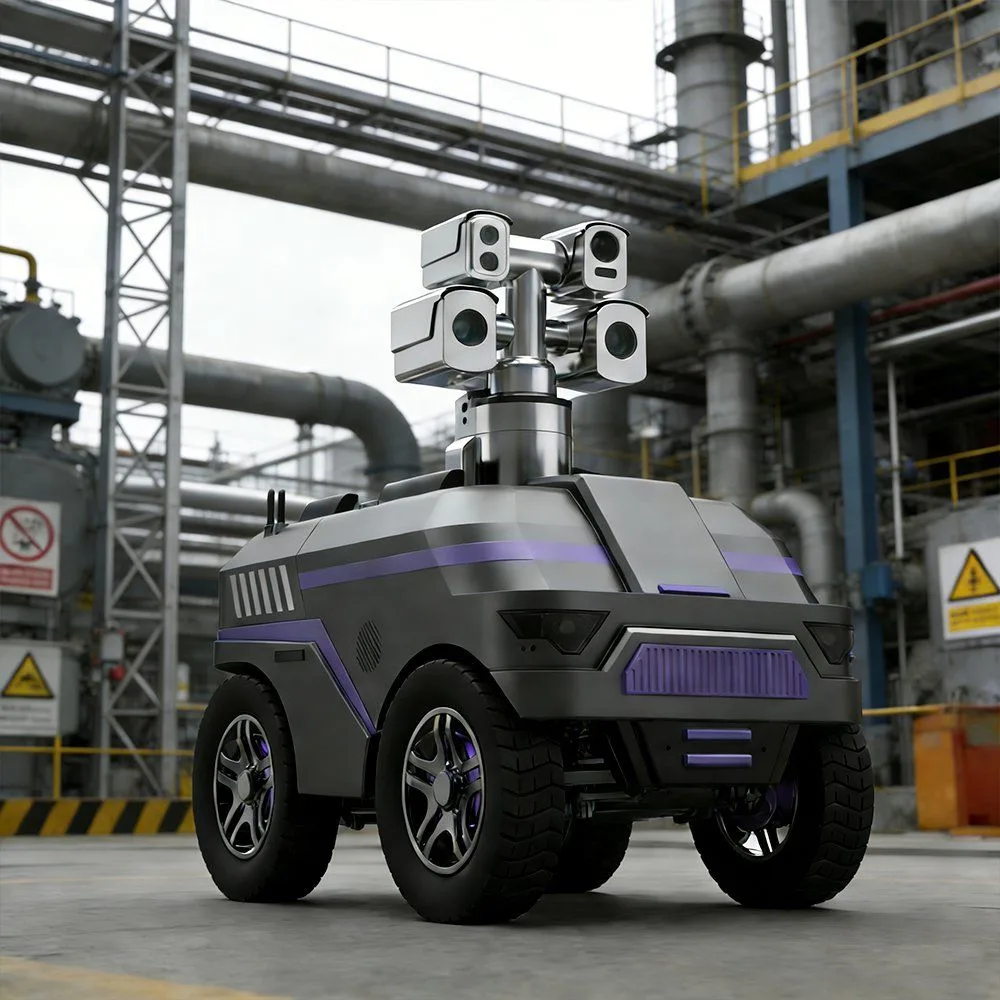

The CL802 Wheeled Inspection Robot is an unmanned industrial inspection solution designed for confined spaces, hazardous environments, and high-risk industrial facilities. It offers excellent spatial adaptability, enabling safe and efficient inspection where manual access is limited or dangerous.
Specifications
Category: Security- Payload
- 10 kg
- Speed
- 0.8 m/s
- Weight
- 23 kg
- IP rating
- IP65
- Battery
- 8 h
- Price
- Contact for quote
- Status
- active
Detailed specifications
Motion & kinematics2
- Repeatability Mm
- 5
- Repeatable Navigation Accuracy
- ≤±2 cm
Power & battery1
- Charge Time Hours
- 4
Sensors2
- Wading Depth
- 80 mm
- Maximum Speed Knots
- 4.0
Safety & certifications1
- Safety Certification
- Ex db ib IIB T6 Gb
Other33
- Curb Mass
- ≤40 kg
- Price Tier
- 40-80K
- Applications
- oil_and_gas,environmental_monitoring,industrial_safety
- Gradeability
- ≤15°
- Sub Category
- quadruped inspection robot
- Auto Charging
- true
- Datasheet Url
- View Link
- Max Speed M S
- 2
- Pricing Model
- purchase
- Contact Emails
- lily@fraysolutions.com
- Force Limiting
- false
- Model Variants
- CL 802 · Scale the Poles,CL 803 · Explore the Earth,CL 804 · Dive into the Sea,CL 804U,CL 804V,CL 804S,CL 101,CL 201P,CL 203,CL 301
- Operating Temp
- -25°C to +60°C
- Warranty Years
- 1
- Company Country
- CN
- Lead Time Weeks
- 2
- Navigation Type
- lidar_slam
- Deployment Notes
- Customer cases include power plants, petrochemical facilities, coal mines, transportation lines, storage yards, underground tunnels, and mine shafts.
- Compatible Vision
- infrared_camera,hd_camera,ultrasonic_sensor,lidar
- Industries Served
- oil_and_gas,chemical_plant
- Training Required
- intermediate_1-5days
- Overall Dimensions
- ≤650 × 550 × 800 mm (L × W × H, including PTZ)
- Availability Status
- available
- Countries Available
- CN
- Operating Endurance
- ≥8 h
- Extras Contact Emails
- edwardshang@sdkulai.com
- Programming Interface
- proprietary_app
- Additional Information
- Detects more defects than any other visual inspection technique, including dye penetrant examination,All findings are streamed live to asset inspectors,Operational temperature range: 0°C to 50°C,Real-time streaming with integrated lighting,Industries served: Underwater Operations, Customs and Ports, Environmental Protection, Scientific Research and Exploration, Chemical Industry
- Functional Capabilities
- Unmanned autonomous inspection, Automatic recharging, Intelligent obstacle avoidance, Day and night inspection capability, Stable network communication, Video recording and real-time monitoring, Intelligent meter recognition and reading, Two-way voice intercom, Infrared thermography, Environmental gas monitoring, Noise decibel monitoring, Partial discharge monitoring
- Ambient Relative Humidity
- 5%-95%
- Optional Inspection Modules
- Infrared temperature sensing, Flammable and toxic gas detection, Spontaneous combustion early warning, 3D gas concentration cloud mapping, Intelligent meter reading, Dust concentration analysis, Coal volume measurement and leakage detection, Conveyor belt monitoring
- Thruster Propeller Material
- Hard Anodized Aluminum Alloy
- Obstacle Negotiation Capability
- 40 mm
