Overview

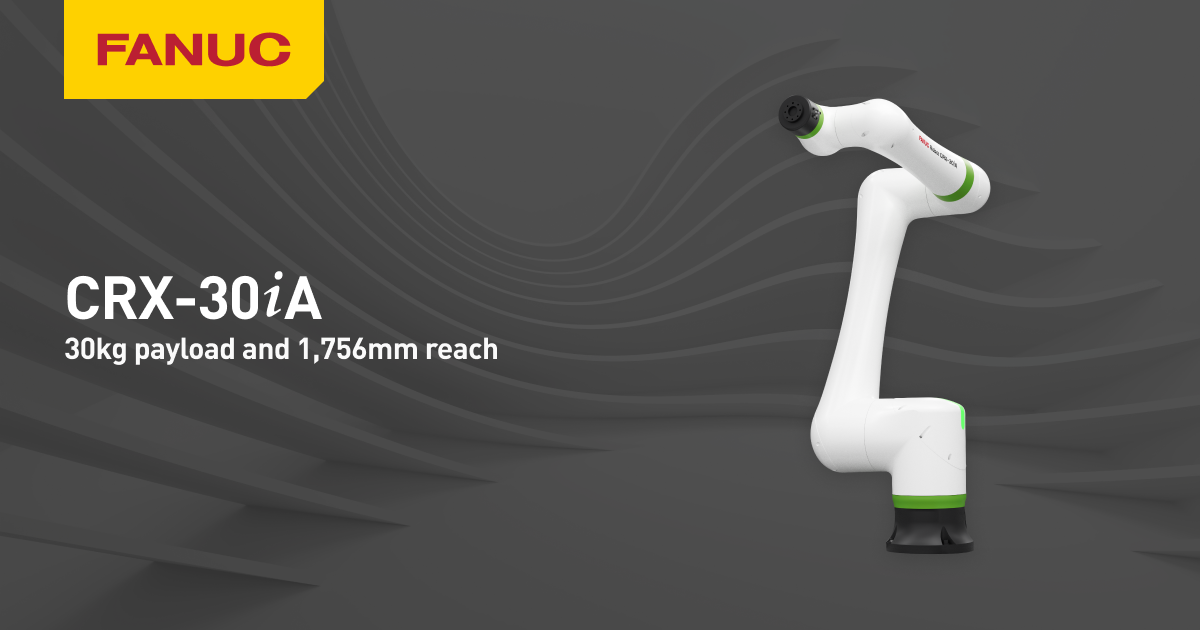

The CRX-30iA is one of the heavier lifters of the FANUC CRX series, perfect for heavy lifting tasks in collaborative settings while preserving safety and simplicity. It offers a payload capacity of 25-30 kg and a reach of 1756 mm, making it an ideal choice for various tasks such as palletizing, material handling, and welding. The device features an innovative wrist button for convenient direct teaching of new movements.
Flagship features
- Powerful 6-axis cobot with high payload and reach
- Ideal for various applications, including palletizing and welding
- Features internal force sensing, allowing for safe interaction with humans
- Quick set-up capabilities with no special surface required for installation
- Supports easy integration with third-party devices
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 30 kg
- Reach
- 1756 mm
- Repeatability
- ≤ ±0.05 mm
- Weight
- 135 kg
- TCP speed
- 2 m/s
- IP rating
- IP67
- Safety cert.
- ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- integrated wrist ft
- No-code
- Yes
- Teach pendant
- tablet
Detailed specifications
Other27
- Model
- CRX-30iA
- Price Tier
- 40-80K
- Applications
- palletizing,machine_tending,welding
- Footprint Mm
- 283
- Datasheet Url
- Preview PDF online
- Max Payload Kg
- 30
- Min Payload Kg
- 25
- Model Variants
- CRX-5iA,CRX-10iA,CRX-10iA/L,CRX-20iA,CRX-30iA,CRX Food
- Warranty Years
- 8
- High Speed Mode
- 2000 mm/sec
- J1 Motion Range
- 360°
- J2 Motion Range
- 360°
- J3 Motion Range
- 540°
- J4 Motion Range
- 380°
- J5 Motion Range
- 360°
- J6 Motion Range
- 450°
- Company Country
- DE
- Lead Time Weeks
- 8
- Mounting Options
- floor,wall,ceiling
- J4 Moment/Inertia
- 100.0/4.7 Nm/Kg.m²
- J5 Moment/Inertia
- 74.0/4.00 Nm/Kg.m²
- J6 Moment/Inertia
- 32.0/2.00 Nm/Kg.m²
- Industries Served
- automotive,electronics,food_and_beverage
- Collaborative Speed
- 1000 mm/sec
- Availability Status
- available
- Programming Interface
- teach_pendant
- Additional Information
- - Powerful 6-axis cobot with high payload and reach. - Ideal for various applications, including palletizing and welding. - Features internal force sensing, allowing for safe interaction with humans. - Quick set-up capabilities with no special surface required for installation. - Supports easy integration with third-party devices.
