Overview

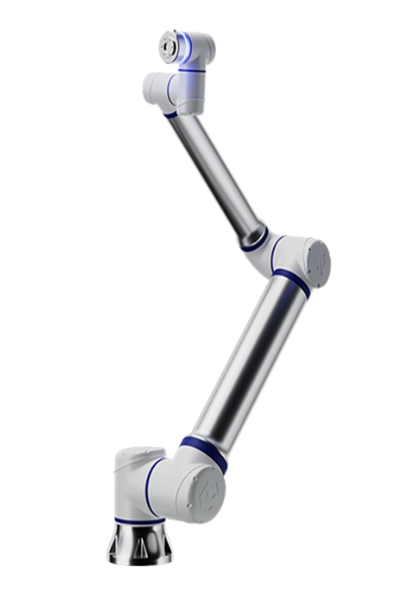

The CS620 collaborative robot offers a payload capacity of 20kg and a maximum radius of 1800mm. With 6 axes and exceptional repeatability of ±0.1mm, it is designed to handle demanding tasks while ensuring safety. Its IP65 protection rating makes it resilient for various industrial applications.
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- ≤ 20 kg
- Reach
- ≤ 1800 mm
- Repeatability
- ±0.1 mm
- Weight
- 60 kg
- TCP speed
- 3.9 m/s
- IP rating
- IP65
- Safety cert.
- ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- none
- Teach pendant
- Teach Pendant
Detailed specifications
Motion & kinematics1
- Max Joint Speed Degree S
- {"joint1":125,"joint2":125,"joint3":150,"joint4":210,"joint5":210,"joint6":210}
Power & battery2
- Power Consumption W
- 625
- Tool I/O Power Supply
- T1 12V/24V, 3A, 2A, 1A T2 24V, 5A
Other17
- Tool I/O
- 4×config, DIO, 1×AI, 1×AO, 1×RS485
- Price Tier
- 40-80K
- Cable Length
- 5.5m
- Applications
- pick_and_place,machine_tending
- Footprint Mm
- 240
- Datasheet Url
- View Link
- Pricing Model
- purchase
- Tool Io Ports
- DI×24,DO×24,AI×2,AO×2
- Footprint Area
- φ240mm
- Operating Temp
- 0-50℃
- Humidity Rating
- <90% (non-condensing)
- Mounting Options
- omnidirectional
- Industries Served
- automotive,logistics,FMCG
- Fieldbus Protocols
- RS485,Modbus RTU,Ethernet TCP/IP,Ethernet/IP,Profinet
- Availability Status
- available
- Programming Interface
- drag_and_drop,code_python
- Additional Information
- The CS620 can operate multiple end effectors simultaneously with its 5A I/O tools.,IP68 protection planned for future models.,Multiple programming options including graphic and offline programming.
