Overview

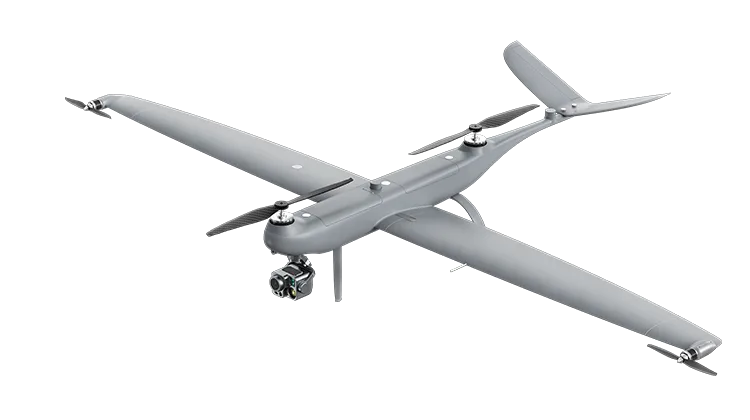

Long-endurance fixed-wing drone with 5-minute rapid deployment, 159-minute flight duration, 180-kilometer flight range, 45-kilometer transmission distance for remote surveillance and extended area monitoring missions.
Specifications
Category: Drone- Airframe
- vtol drone
- Flight time
- 3 h
- Top speed
- 30 m/s
- Mission payload
- 2.5 kg
- Takeoff weight
- 14.5 kg
- IP rating
- IP43
- Operating temp
- -20°C ~ 50°C
- SDK / API
- Yes
- Pricing model
- purchase
- Price tier
- 150K+
Detailed specifications
Safety & certifications1
- Safety Certification
- IP43
Other10
- Fleet Software
- Autel Voyager
- Company Country
- CN
- Controller Model
- 9.7” Ground Control Station
- Setup Time Hours
- 0.05
- Compatible Vision
- 4K 20x Stabilised Optical Zoom,48MP Wide Angle,640x512 Radiometric Thermal,Multispectral (5x 2MP sensors),Z2,T3,T3H,L20T,L50T,M1
- Industries Served
- public safety,fire protection,energy,traffic management,agriculture,surveillance
- Software Platform
- Autel Voyager
- Training Required
- basic_<1day
- Programming Interface
- no_code_gui,proprietary_app
- Additional Information
- Product is a VTOL drone, not a ground robot. Categorized as 'delivery' for aerial delivery/inspection applications, but primarily used for surveillance, public safety, and industrial inspection.,Unique tilt-rotor design simplifies operation and maximizes efficiency; no complicated moving parts, modular, waterproof.,Powerful AI tracking and multiple modular payload options (EO/IR, thermal, multispectral).,Autel Voyager software enables advanced mission planning, intelligent tracking, flight history tracking.,Ground station with 9.7-inch, 1000-nit display and antenna for video transmission up to 18.6 miles.,Redundant systems: dual batteries, IMU, barometer, compass, GPS RTK module, dual CAN bus communication.,Auto-switch to multicopter mode if stall detected.,Competitive differentiator: 180-minute flight time with payload, significantly ahead of other VTOL competitors.,Third-party payload compatibility available.,Financing options not mentioned.,Pricing inferred as '150K+' due to 'enterprise pricing' nature and 'most expensive drone' description.
