Overview

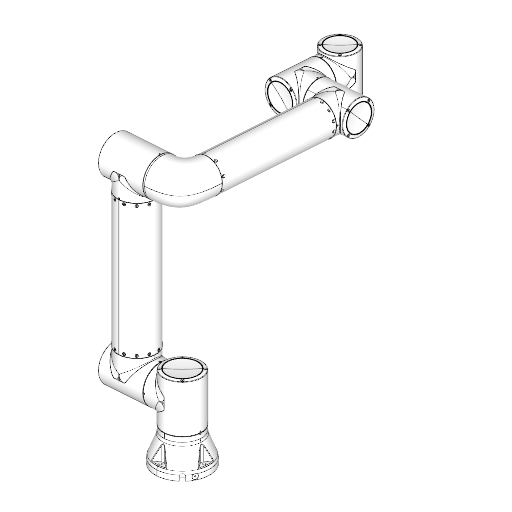

The Cobot FAIRINO FR3-WML is a versatile 6-axis robotic arm designed for industrial automation with a payload capacity of 3 kg and a reach of 622 mm. Weighing 11.3 kg, it offers impressive repeatability of 0.05 mm and can operate at speeds up to 1 m/s, with options for various mounting orientations. Equipped with robust safety functions and multiple communication interfaces, this cobot is suitable for a range of applications and complies with several important industry certifications.
Flagship features
- Features ±360° sixth-axis rotation for complex curved surface welding
- Designed for high-precision welding and flexible manufacturing
- Compact design for easy handling
- Collision detection for enhanced safety
- Noise level ≤ 65db
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 3 kg
- Reach
- 622 mm
- Repeatability
- ±0.02 mm
- Weight
- 11.25 kg
- TCP speed
- 1 m/s
- IP rating
- IP54
- Safety cert.
- ISO 9001, CR, CE
- Force limiting
- Yes
- F/T sensing
- integrated wrist ft
- No-code
- Yes
- API / SDK
- Yes
Detailed specifications
Power & battery2
- Power Supply
- 30-60 V DC
- Power Consumption W
- 140
Compute1
- Ros Compatible
- true
Safety & certifications1
- Safety Functions
- Collision detection, emergency stop (Category 0 stop), protective stop, soft-limit stop
Other15
- Controller
- DC MINI Controller 2kW or AC MINI Controller 2kW
- Price Tier
- 10-20K
- Tool Flange
- Four M6 thread holes, torque ≥8 Nm, strength level ≥8.8
- Applications
- deburring,multiaxis cutting,polishing,robot milling,trimming
- Operating Temp
- 0—45℃
- Company Country
- CN
- Mounting Options
- Any orientation
- Industries Served
- automotive,3C,food_and_beverage,healthcare
- Software Platform
- ENCY Robot
- Training Required
- none
- Fieldbus Protocols
- I/O,TCP/IP,Modbus TCP/RTU,Profinet,Ethernet/IP,CC-Link,EtherCAT
- Availability Status
- available
- Extras.Contact Emails
- sales@fairino.com
- Programming Interface
- no_code_gui
- Additional Information
- - Features ±360° sixth-axis rotation for complex curved surface welding. - Designed for high-precision welding and flexible manufacturing. - Compact design for easy handling. - Collision detection for enhanced safety. - Noise level ≤ 65db.
