Overview
Material handling robot for warehouse pick-and-place with 1.8m reach and 2000+ picks/hour.
Detailed specifications
Other13
- Extras
- {"cad_file_url":"https://a.storyblok.com/f/251941/x/1436caae5c/cognibotics_hkm1800_2025.STEP","tool_rotation":"unlimited","max_payload_kg":7.5,"radial_reach_mm":1800,"product_sheet_url":"https://a.storyblok.com/f/251941/x/e0c472773d/hkm-1800-product-sheet-rev-af-downloadable.pdf","vertical_stroke_m":1,"nominal_payload_kg":2,"workspace_area_sqm":10,"cycle_time_2000mm_s":1.6}
- Industries
- ecommerce_fulfillment,general_warehousing,manufacturing
- Applications
- goods_to_person,person_to_goods
- Datasheet Url
- Preview PDF online
- Payload Class
- light
- Specs Sources
- View Link
- Deployment Notes
- Installed at Nowaste Logistics. Part of the MovU escala bin shuttle system. Used with AutoStore ports.

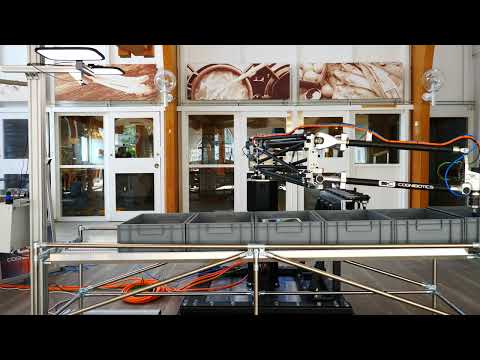

- Youtube Video Id
- DFtCbl_nFBc
- Specs Source Pass
- phase_d_detect_enrich
- Availability Status
- available
- Primary Applications
- each_picking,kitting,other
- Additional Information
- - Hybrid kinematics combining serial and parallel advantages for low moving mass and high speed. - 1.8m radial reach over 360°, covering 6 EU pallets or 10 m² workspace. - Cycle time: 1.6 sec for a 2000 mm motion; over 2000 picks per hour. - Payload: 2 kg nominal, 7.5 kg max. - Robot weight: <125 kg. - Unlimited tool rotation; efficient tool-changing system. - Active Motion Stabilization for dynamic tracking of moving objects. - HTML-based programming with open standardized interfaces (PC or teach pendant). - Energy efficient due to low moving mass. - Flexible mounting options. - Deployed at Nowaste Logistics; integrated with MovU escala and AutoStore. - STEP CAD file available for integration.
- Picks Per Hour Per Robot
- 2000
