Overview

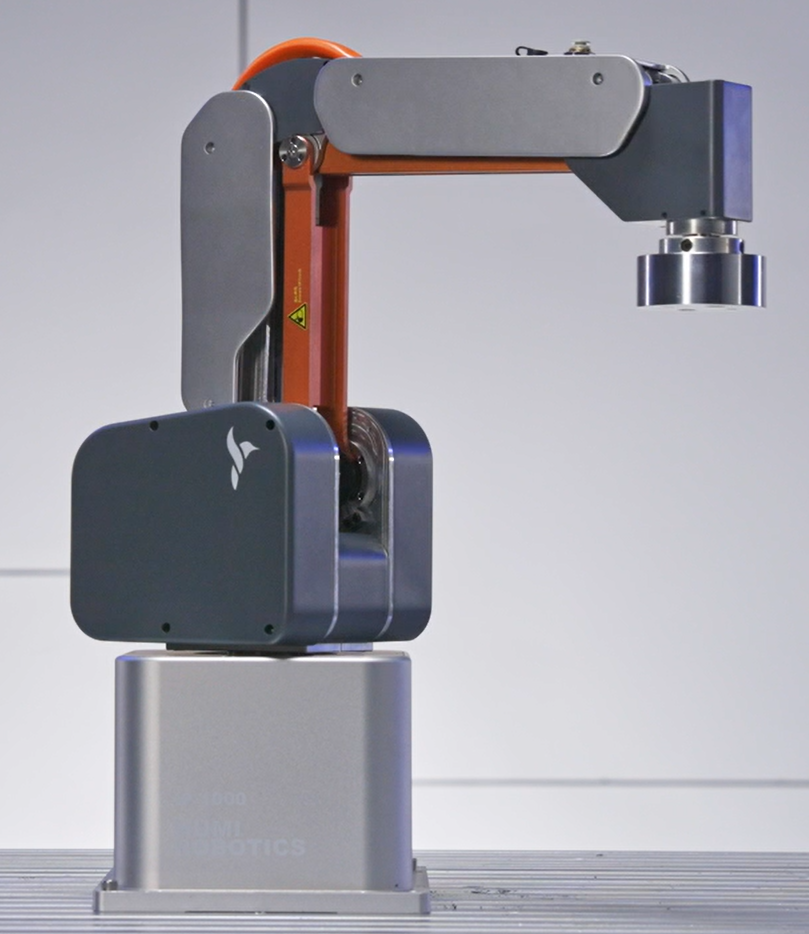

The Humi Robotics IP1000 is a desktop robot designed for rapid deployment and low-cost automation. Ideal for industries ranging from 3C electronics and cosmetics to food processing and metal fabrication, the IP1000 features a compact design with a working radius of 490mm and a payload capacity of 1kg, enabling flexible deployment in confined spaces and seamless integration into existing workstations. It boasts a high-performance servo system with exceptional repeatability of ±0.05mm and offers intuitive programming methods.
Flagship features
- Supports four programming methods for users of all skill levels: teach pendant, graphical programming, Python, and C++
- Equipped with advanced motion control technology for high precision and repeatability
- Designed with safety features including collision detection and robust protections against power outages and emergencies
- Targeted towards light-industrial applications with compact size and rapid deployment capabilities
Specifications
Category: Cobot- Axes
- 4
- Payload
- 1 kg
- Reach
- 490 mm
- Repeatability
- ±0.05 mm
- Weight
- 11 kg
- IP rating
- IP20
- Force limiting
- Yes
- API / SDK
- Yes
Detailed specifications
Motion & kinematics2
- Max Joint Speed
- {"J1":"300°/s","J2":"290°/s","J3":"290°/s","J4":"300°/s"}
- Joint Motion Range
- {"J1":"±160°","J2":"-60°~20°","J3":"-55°~25°","J4":"±360°","J2+J3":"-100°~25°"}
Power & battery1
- Power Consumption W
- 700
Compute1
- Ros Compatible
- true
Other18
- Price Tier
- <10K
- Applications
- pick_and_place,palletizing,lab_automation
- Sub Category
- null
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Operating Temp
- 0°C ~ 40°C
- Deployment Notes
- Deployed in industries including 3C electronics, food processing, and metal fabrication.
- Mounting Options
- desktop
- Setup Time Hours
- 0.25
- Industries Served
- 3C electronics,food_and_beverage,metal_fabrication
- Software Platform
- MyBlockly
- Training Required
- none
- Fieldbus Protocols
- TCP/IP,Modbus TCP,Digital I/O,Analog I/O
- Availability Status
- available
- Shipping Information
- Ships globally using DHL, Fedex, UPS, and other carriers.
- Extras.Contact Emails
- support@humibot.com
- Programming Interface
- teach_pendant,code_python,code_ros,drag_and_drop
- Additional Information
- - Supports four programming methods for users of all skill levels: teach pendant, graphical programming, Python, and C++. - Equipped with advanced motion control technology for high precision and repeatability. - Designed with safety features including collision detection and robust protections against power outages and emergencies. - Targeted towards light-industrial applications with compact size and rapid deployment capabilities.
