KSJ-2.2S Welding Fume Extractor
Built by Shanghai Kaisen Environmental Technology Co., Ltd. · CN

Overview

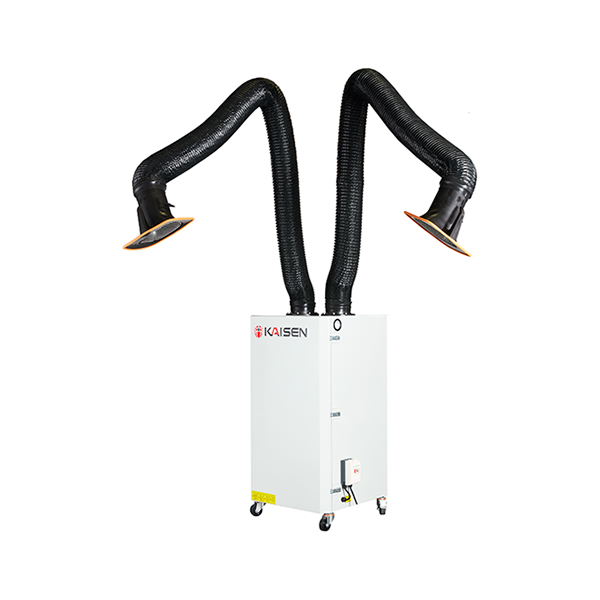

The KSJ-2.2S Welding Fume Extractor is an economical mobile fume extractor designed for welding fume filtration. It features flexible suction arms with 360° rotation and polyurethane casters for easy mobility. The device is equipped with a high-efficiency custom aluminum impeller and imported filter material for high precision filtration. It is suitable for various applications including welding fume extraction, soldering and fume filtration, laser fume filtration, and hazardous fume/dust filtration. The compact design allows for easy positioning above any welding workstation without extra support.
Detailed specifications
Power & battery2
- Motor Power
- 2.2kW
- Power Supply
- 3×380V/50Hz
Other9
- Dimension
- 640×760×1320mm
- Fan Air Flow
- 3600 ± 100m³/h
- Compressed Air
- 0.5~0.6MPa
- Inlet Air Flow
- 2000m³/h
- Cleaning Method
- Manual
- Filter Material
- Cellulose
- Filtration Area
- 30㎡
- Filter Cartridge
- 1pc
- Filtration Precision
- ≥0.5μm
