Overview

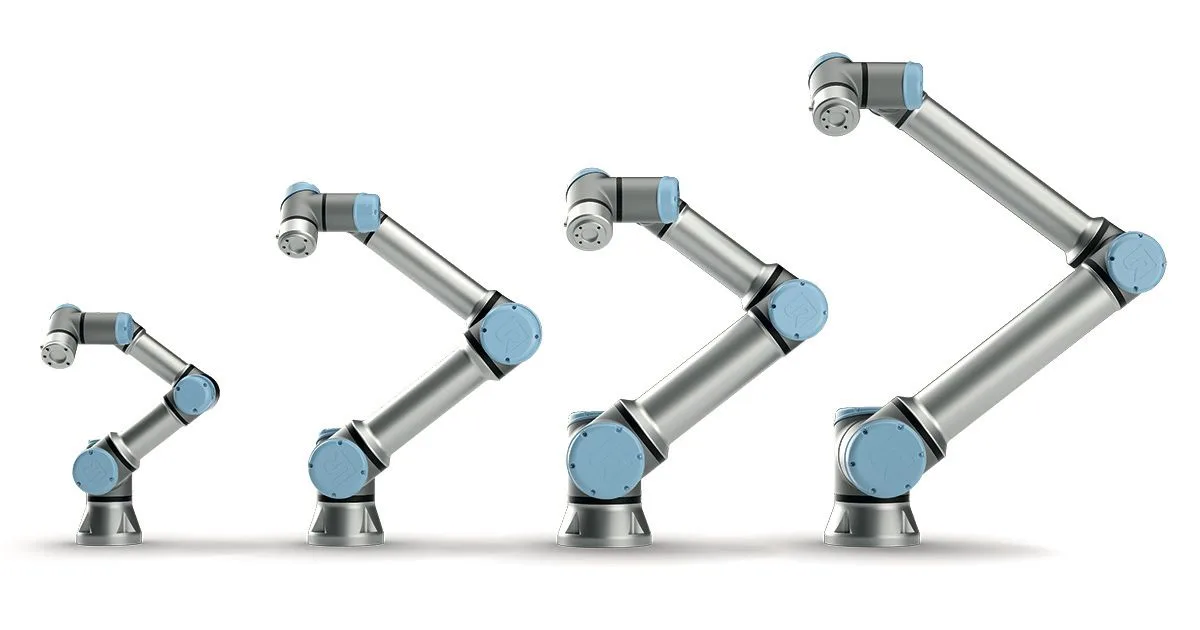

The UR10e is a high-capacity collaborative robotic arm capable of lifting up to 10 kg, designed for flexible automation solutions in various industries.
Flagship features
- Advanced safety functions with 17 sophisticated features
- Supports multiple communication protocols including MODBUS TCP, Ethernet/IP, and PROFINET
- Easy to set up with a setup time of under an hour
- Suitable for a wide range of industrial applications
- Designed for collaborative use with humans
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- ≤ 10 kg
- Reach
- 1300 mm
- Repeatability
- ±0.05 mm
- Weight
- 33.5 kg
- TCP speed
- ~1 m/s
- IP rating
- IP54
- Safety cert.
- CE, EN ISO 13849-1
- Force limiting
- Yes
- F/T sensing
- wrist external
- No-code
- Yes
- Teach pendant
- touchscreen
Detailed specifications
Motion & kinematics1
- Dof Total
- 6
Sensors1
- Sensor Suite
- Force Torque sensor
Safety & certifications1
- Grip Force N
- 5.5
Other9
- Price Tier
- 80-150K
- Sub Category
- floor-mounted
- Model Variants
- UR8 Long,UR15,UR18,UR20,UR30
- Operating Temp
- 0°C to 50°C
- Company Country
- DK
- Software Platform
- PolyScope
- Availability Status
- available
- Programming Interface
- PolyScope 5 GUI,PolyScope X GUI
- Additional Information
- - Advanced safety functions with 17 sophisticated features - Supports multiple communication protocols including MODBUS TCP, Ethernet/IP, and PROFINET - Easy to set up with a setup time of under an hour - Suitable for a wide range of industrial applications - Designed for collaborative use with humans
