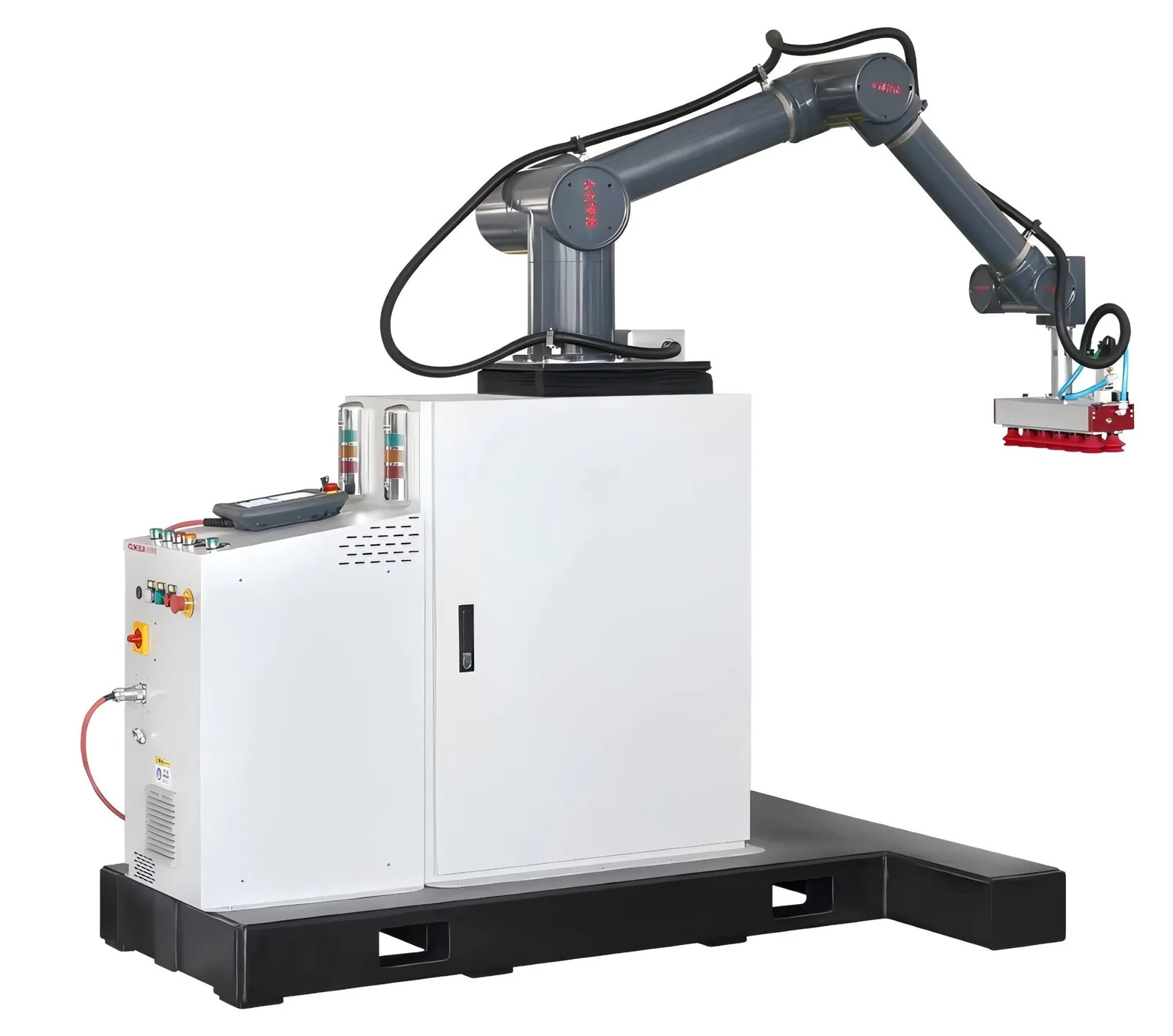

The VCR20-1720 is a Cobot developed by Hangzhou sili Intelligent Technology, priced at $18,000 USD. Key specifications: type six axis collaborative, axes 6, payload 20 kg, reach 1920 mm.
Robo Index
Strong evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how VCR20-1720 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview
Ysr-6-20-F/1600 Automatic Industrial 6 Axis Collaborative Robot Cobot 6-20kg Payload Robotic Arm System for Palletizing
Buyer decision signals
Viability
Sci-Tech board listing
Price
Availability
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 20 kg
- Reach
- 1920 mm
- Repeatability
- ±0.05 mm
- Weight
- 210 kg
- TCP speed
- 1.2 m/s
- IP rating
- IP54/IP67
- Safety cert.
- 2006/42/EC
- Force limiting
- Yes
- F/T sensing
- none
Company profile
- Founded
- 1968
Detailed specifications
Power & battery2
- Power Consumption W
- 4500
- Typical Power Consumption
- 2.0 Kw
Sensors2
- Maximum Pallet Size
- 1100*1100 mm
- Maximum Palletizing Height
- 1600-1900 mm(Including Pallet)
Safety & certifications1
- Certifications
- 2006/42/EC
Other26
- Type
- Packaging Line
- Interface
- Supports multiple safety inputs and outputs, including emergency stop, safety protection, manager mode, and manufacturer setting mode
- Air Source
- 0.5-0.8 MPa
- Price Tier
- 40-80K
- Applications
- palletizing,packaging
- Sub Category
- 6-axis cobot
- Datasheet Url
- Preview PDF online
- Operating Temp
- 0°C to 45°C
- Warranty Years
- 1
- Way To Install
- Ground installation, bracket installation, inverted installation
- Automatic Grade
- Automatic
- Core Components
- PLC, Motor
- Indicator Status
- During normal power-on, the indicator is steady green. During power-off, the indicator is off
- Mounting Options
- floor
- Protection Level
- Robot arm IP54
- Industries Served
- automotive,electronics,food_bev,pharma,logistics,metalwork
- Communication Mode
- EtherCAT
- Availability Status
- available
- Palletizing Box Size
- (260-500)*W;(200-450)*H;(150-400)mm
- Machinery Test Report
- Provided
- Programming Interface
- teach_pendant
- Additional Information
- Rated power consumption of 4.5kW.,User wiring and piping specifications provided.,Designed for a maximum temperature gradient of 1.5°C/min.,Versatile for various handling tasks that demand precision.
- Fastest Palletizing Speed
- up to 6-8 times/min (depending on actual product p
- Video Outgoing Inspection
- Provided
- Warranty Of Core Components
- 1 Year
- After Sales Service Provided
- Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Hangzhou sili Intelligent Technology Co., Ltd. or an authorized seller.
Request a quote — goes straight to Hangzhou sili Intelligent Technology Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Mar 2021MilestoneSci-Tech board listing
- 2016MilestoneCompany renamed
- 1999MilestoneCorporate restructuring
- 1968MilestoneFounded
- —MilestoneGP25-12 listed by Hangzhou sili Intelligent Technology Co., Ltd.
- —MilestoneGP25-12 product specs published by Yaskawa distributors
Compare with peers
More by Hangzhou sili Intelligent Technology
Frequently asked questions
- Who makes the VCR20-1720?
- The VCR20-1720 is developed by Hangzhou sili Intelligent Technology.
- What type of robot is the VCR20-1720?
- The VCR20-1720 is a Cobot made by Hangzhou sili Intelligent Technology.
- How much does the VCR20-1720 cost?
- The VCR20-1720 is priced $18,000 USD.
- What are the key specifications of the VCR20-1720?
- Key specifications of the VCR20-1720: type six axis collaborative, axes 6, payload 20 kg, reach 1920 mm, repeatability ±0.05 mm.
