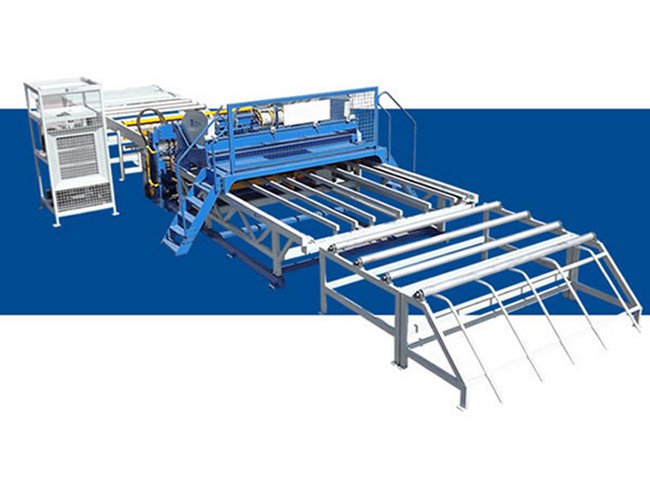

Wire Mesh Welding Machine
Built by Zhenhuan Machine
Overview
The Wire Mesh Welding Machine is a fully automatic system designed for welding various mesh sizes, specifically for applications in fencing used in rail, expressway construction, bridges, and other buildings. It features a PLC control system and can accommodate custom mesh sizes with adjustable feeding mechanisms for efficient operation.
Key facts
- Payload
- —
- Reach
- —
- Speed
- 0.67 m/s
- Weight
- 4,200 kg
- IP rating
- —
- Battery
- —
- Power
- —
- Autonomy
- —
- Launch year
- —
- Price
- Contact for quote
- Status
- active
Detailed specifications
Power & battery1
- Driving Motor Power KW
- 4
Other17
- Floor Area M
- 8x16
- Welding Spots
- 32
- Welding Aperture Mm
- 25x25 to 200x200
- Max Width Of Mesh Mm
- 2600
- Extras.Contact Emails
- zhenhuan@zhenhuan-machine.com,frankscao@gmail.com
- Machine Dimensions Mm
- 3500x1500x1800
- Machine Size Fence Mm
- 8480x3160x1700
- Length Of Fence Mesh Mm
- 5000
- Machine Weight Fence Kg
- 4200
- Welding Transformer KVA
- 1000
- Diameter Of Steel Bar Mm
- 5-12
- Gap Between Woof Bars Mm
- >40, adjustable
- Applicable Wire Diameter Mm
- 2.5-6
- Welding Speed Times Per Min
- 30
- Number Of Welding Spots Fence
- 48
- Welding Transformer Fence KVA
- 480
- Gap Between Longitudinal Bars Mm
- >50, adjustable
