Overview

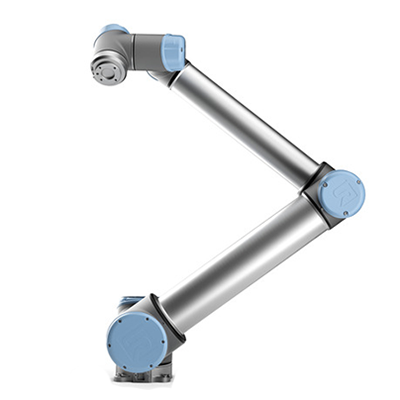

The UR10 is a versatile collaborative robot designed for a range of applications including palletizing, machine loading, and inspection. With a payload capacity of 10 kg and a reach of 1300 mm, the UR10 offers flexibility and ease of integration into existing production environments, allowing users to enhance productivity and streamline workflows.
Key facts
- Weight
- 33.3 kg
Detailed specifications
Motion & kinematics2
- Dof Total
- 6
- Repeatability Mm
- 0.1
Sensors1
- Sensor Suite
- Force Torque sensor
Safety & certifications2
- Grip Force N
- 5.5
- Safety Certification
- PLd Category 3, EN ISO 13849-1
Other13
- Price Tier
- 150K+
- Applications
- assembly, palletizing, machine loading, welding, screwing, polishing and grinding, gluing and dispensing, inspection
- Footprint Mm
- 190
- Datasheet Url
- https://qviro.com/product/universal-robots/ur10/specifications
- Model Variants
- UR3e, UR7e, UR12e, UR16e, UR8 Long, UR15, UR18, UR20, UR30
- Operating Temp
- 0°C to 50°C
- Company Country
- DK
- Deployment Notes
- UR10 packs vanilla cream at Orkla Foods Sweden. Integrated at Baxter Laboratories for end-of-line packing and palletizing operations.
- Industries Served
- education, automotive, food and beverage, packaging, healthcare, electronics, aerospace and defense, energy and utilities
- Linear Speed Mm Per S
- 1000
- Programming Interface
- PolyScope 5 GUI, PolyScope X GUI
- Additional Information
- - Maximum reach of 1300 mm - Operates using average power consumption of 615 W - 17 sophisticated safety functions incorporated - The robot arm produces noise levels of less than 60 dB(A) - Available control box communication interfaces include MODBUS TCP and PROFINET
- Deployment Environment
- indoor
