Overview

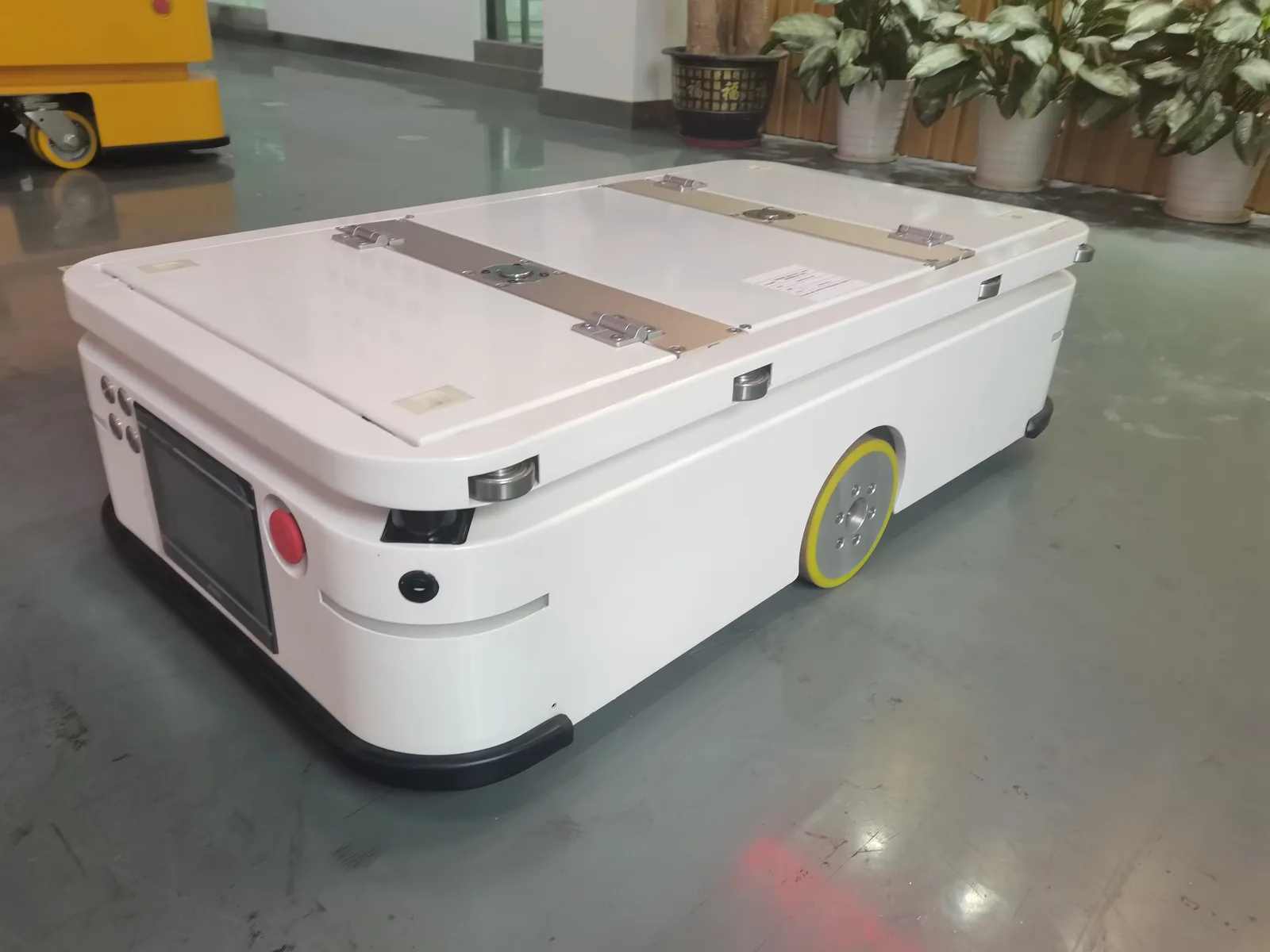

The WD500SL is a LiDAR SLAM navigation AGV robot designed for industrial material handling in warehouses and factories. It features a differential drive with a servo motor, under-drive traction form, and a payload capacity of 500 kg. Navigation relies on LiDAR SLAM, and the robot includes front and rear LiDAR obstacle avoidance and contact bumper strips for safety. It supports both offline and automatic charging with a lithium iron phosphate battery providing 6 hours of endurance and a charge time of ≤1.5 hours. Communication is via 5G/WiFi. The robot is IP20 rated and equipped with sound-light alarm, emergency stop buttons, and is built for applications such as loading, warehouse logistics, and manufacturing. The company, founded in 2015 in Shenzhen, specializes in mobile robot R&D and offers ODM/OEM services to integrators in intelligent logistics and smart factory sectors.
Detailed specifications
Motion & kinematics2
- Localization Accuracy Mm
- 10
- Orientation Accuracy Deg
- 1
Power & battery5
- Battery Chemistry
- lifepo4
- Charge Time Hours
- 1.5
- Driving Voltage V
- 48
- Battery Cycle Life
- 2000
- Battery Capacity Ah
- 30
Compute1
- Package Gross Weight Kg
- 360
Safety & certifications1
- Certifications
- ISO
Other17
- Width Mm
- 580
- Height Mm
- 300
- Length Mm
- 1050
- Amr Subtype
- other
- Motion Form
- under drive traction
- Alarm System
- Sound-light alarm
- Payload Class
- medium
- Pricing Models
- capex
- Max Incline Deg
- 3
- Package Size Cm
- 105.00*58.00*30.00
- Network Protocols
- wifi_6,5g
- Environment Rating
- indoor_only
- Obstacle Detection
- true
- After Sales Service
- One Year
- Max Speed Loaded Ms
- 0.8
- Rotation Diameter Mm
- 1200
- Max Speed Unloaded Ms
- 1
