CU4-200L
Built by Wesar (Suzhou) Intelligence Technology · China

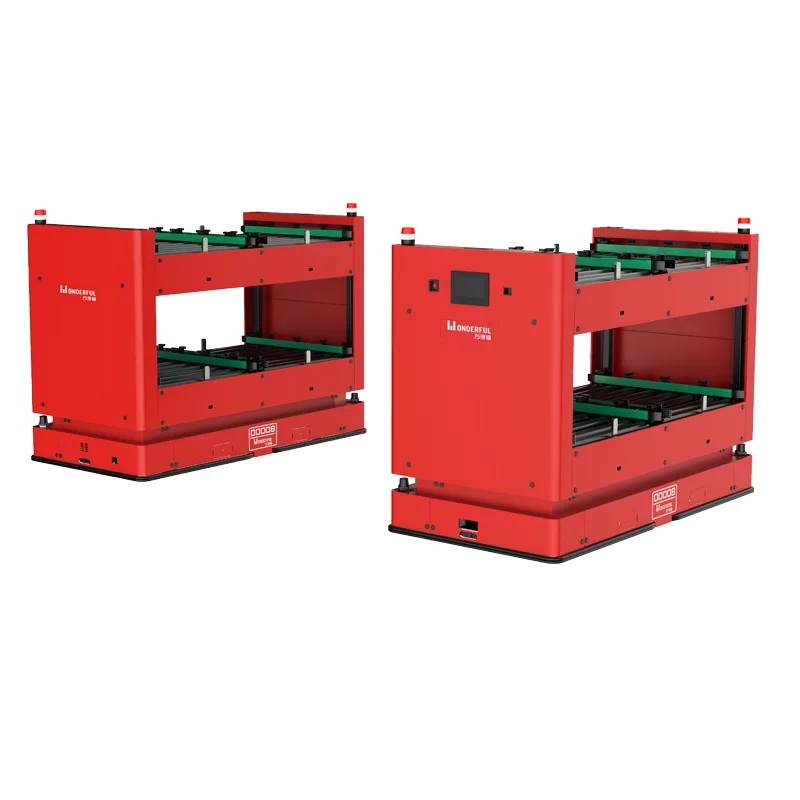

The CU4-200L is a Warehouse AMR developed by Wesar (Suzhou) Intelligence Technology (China). Key specifications: navigation qr code,lidar slam, pricing model purchase.
Robo Score
Adequate evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
3 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 3 scored · blanks don't count
Ranked in the Warehouse AMR standing, against 377 robots.
See the standing
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how CU4-200L measures up, requirement by requirement. The Robo Score (trust) above is shown for every buyer, regardless.
Overview
200kgの積載能力、2Dバーコード/L-SLAMナビゲーションを備えたコンベア移動ロボット、パレット素材輸送と倉庫ロジスティクス統合に適しています。
Buyer decision signals
Viability
Company website/product page
Price
purchase
Availability
Specifications
Detailed specifications pending — claim this page to add yours.
Detailed specifications
Motion & kinematics5
- Dof
- 2
- Repeatability Mm
- 10
- Docking Accuracy Mm
- 10
- Positioning Accuracy Mm Deg
- ±10 / ±1
- Secondary Positioning Models Accuracy Mm
- 5
Power & battery1
- Charge Time Hours
- 1.5
Compute2
- Ros Compatible
- true
- Package Gross Weight Kg
- 220
Safety & certifications1
- Emergency Stop Button
- support
Other37
- Origin
- China
- Trademark
- wesar
- Drive Mode
- electric
- Price Tier
- <10K
- Applications
- warehouse_transport,pick_and_place
- Bumper Strip
- support
- Control Mode
- continuous path control
- Sub Category
- conveyor mobile robot
- Customization
- available
- Dimensions Mm
- 1250*730*1344
- Conveying Type
- quad-roller
- Model Variants
- CU1-400C,CU1-1500C,CU1-600L,CU1-1000L,CU2-120L,CU2-10L
- Warranty Years
- 1
- Package Size Cm
- 135.00*107.00*47.00
- Rear Protection
- laser
- Side Protection
- binocular
- Front Protection
- laser
- Driving Direction
- bi-directional
- Industries Served
- logistics,automotive,electronics,food_bev,pharma,metalwork
- Transport Package
- wooden box
- Other Control Mode
- point to point control
- Availability Status
- available
- Countries Available
- China
- Rotation Diameter Mm
- 1410
- Sound And Light Alarm
- support
- Additional Information
- Offers flexible customization services for personalized requirements.,Supports omnidirectional drive in other models of the same series.,Can dock with machines, conveyors, and tools for automated material transfer.,Data interface openness supports XML/ROBTX for secondary development.,One-year warranty and 24-hour online remote service available.,On-site support within 48 hours after visa approval during warranty period.,Company provides one-stop intelligent factory solutions including AGV robots, WMS, ASRS, and conveyor systems.,Has 5 R&D engineers (per company profile).,Gold Member since 2025 with audited supplier status.,Exhibition Experience: participated in offline trade shows.,Rated running speed (empty) 1.2 m/s with acceleration 0.5 m/s².,Bi-directional driving with 360° in-place rotation capability.,Supports docking accuracy of ±10 mm.,Rated load 200 kg, chassis weight 412 kg.,Battery run time 6-8 hours, charging time ≤ 1.5 hours.,Multiple navigation modes available across series: 2D barcode, L-SLAM, V-SLAM, tape navigation.,Supports high-precision secondary positioning docking accuracy of ±5 mm for some models.,Can handle various carrier types and dimensions with customization available.,Multi-AGV operation supported including different model types at same site.,Typical AGV implementation timeline can be as short as two weeks depending on project scope.,Sample available at US$999 per piece.
- High Precision Docking
- true
- Navigation Mode Detail
- 2D Barcode / L-Slam
- Chassis Above Ground Mm
- 25
- Data Interface Openness
- XML/ROBTX
- Robust Fleet Deployment
- supports seamless switching between multi-robot collaboration and single-robot operation modes
- Conveying Speed Mm Per S
- 200
- Human Machine Interaction
- touchscreen
- In Place Rotation Degrees
- 360
- Working Surface Height Mm
- 450/1150
- Rated Acceleration Empty Mm Per S2
- 500
- Rated Running Speed Empty Mm Per S
- 1200
