Overview

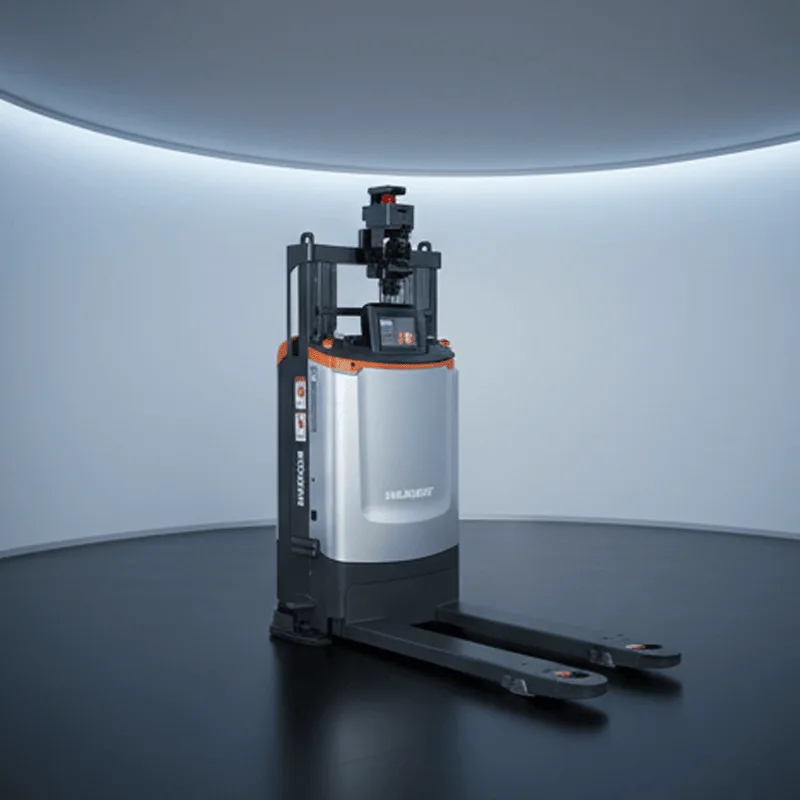

1000kg Omnidirectional Pallet Handling Material Handling Compact Warehouse Agv AMR Forklift Mobile Robot with features like Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner, and more.
Detailed specifications
Motion & kinematics2
- Repeatability Mm
- 10
- Localization Accuracy Mm
- 10
Power & battery2
- Charge Time Hours
- 1.5
- Battery Capacity Kwh
- 5.43
Sensors1
- Lidar Count
- 4
Compute1
- Package Gross Weight
- 800
Safety & certifications2
- Emergency Stop Count
- 1
- Emergency Stop Button
- Support
Other55
- Recorder
- Support
- Width Mm
- 1018
- Height Mm
- 1984
- Length Mm
- 1742
- Price Tier
- <10K
- Package Size
- 114.00cm * 196.00cm * 225.00cm
- Run Time (H)
- 6-8
- Applications
- warehouse_transport,goods_to_person,line_side_delivery
- Auto Docking
- true
- Max Speed Ms
- 1.5
- Sub Category
- Omnidirectional AMR
- Auto Charging
- true
- Max Speed M S
- 1.5
- Payload Class
- medium
- Fleet Software
- RDS
- Lift Height Mm
- 1600
- Model Variants
- F1-300T,F1-500T,F1-600U,F1-1000U
- Warranty Years
- 1
- Rated Load (Kg)
- 1000
- Company Country
- CN
- Max Incline Deg
- 5
- Indication Light
- Support
- Deployment Notes
- Automated Storage System Project for Raw Material Warehouse – in Shanghai, Automated Warehouse & LMR Project — Home Appliance Manufacturing Industry
- Charging Time (H)
- ≤ 2
- Industries Served
- automotive,electronics,food_bev,pharma
- Training Required
- basic_<1day
- Turning Radius Mm
- 1445
- Visual Indicators
- status_led,warning_strobe
- Environment Rating
- indoor_only
- Floor Clearance Mm
- 10
- Obstacle Detection
- true
- Availability Status
- available
- Charging Time Hours
- 1
- Floor Compatibility
- smooth_concrete,painted_concrete,epoxy
- Ground Clearance Mm
- 10
- Opportunity Charging
- true
- Pedestrian Detection
- generic_obstacle
- Sound And Light Alarm
- Support
- Max Speed Unloaded Ms
- 1.5
- Programming Interface
- teach_pendant
- Bumper Strip Detection
- Support
- Additional Information
- - 360° omnidirectional mobility enables lateral movement in 1.8 m aisles and turning in 1.9 m spaces - 3D cameras for pothole detection and ultra-small obstacle recognition (optional) - Front contact bumper strip for immediate stop on impact - Supports cubic Bézier curve path planning - Optional high shelf pallet recognition, cage stack, and pallet stack configurations - Available for customization (fork width, robot height, color, logo) - Part of SEER's stack truck product series
- Fork Collision Detection
- Support
- Laser Obstacle Avoidance
- Support
- Human Machine Interaction
- Touchscreen
- Fork Outer Width (B5) (Mm)
- 720
- Pallet Binding Recognition
- Customizable
- Fork Dimension (S/E/L) (Mm)
- 60/255/1215
- Min. Aisle Width (Ast) (Mm)
- 1866
- Pallet Attitude Recognition
- Customizable
- Pallet In Position Detection
- Support
- Load Center Distance (C) (Mm)
- 600
- Applicable Pallet Dimension (Mm)
- 1200*1200
- Fork Lifting Height (H3+H13) (Mm)
- 2049
- Fork Above Ground After Lowering (H13)
- 99
