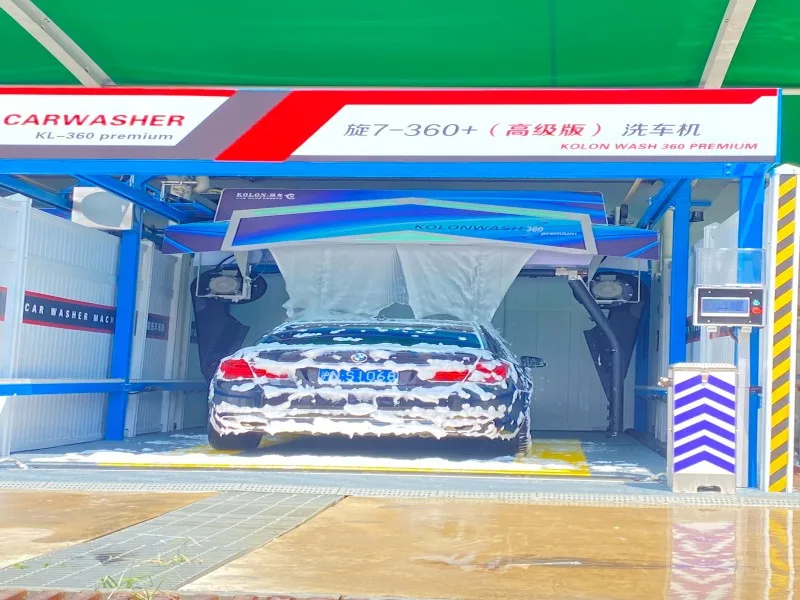

360° Kolon Car Washing Robot
Built by Shanghai Car Helper Cleaning Equipment · China

Overview
The latest KOLONWASH automatic car wash technology has improved the standard for non-contact car wash equipment. Focusing on increasing revenue and improving total cost of ownership, the car wash system delivers the industry's best return on investment. Smart 360 premiumTM technology enables the car wash system to respond to dynamics in the car wash and "think about itself", increasing uptime and optimizing the car wash process.
Flagship features
- This is a stationary, non-autonomous car wash system (gantry/rollover style), not a free-roaming robot
- It uses high-pressure water jets and chemicals instead of brushes (touchless)
- Features 'Smart 360 premium' technology for self-optimization of the wash cycle
- Includes an intelligent chemical mixing system with high-precision metering (20-50ml per wash)
- Quad-motor drying system (4 x 5.5 kW) for 90% drying efficiency
- Uses a German PINFL high-pressure piston pump and Siemens motor
Specifications
Category: Cleaning- Method
- high pressure washing,foaming,waxing,drying
- Safety cert.
- CE
- Pricing model
- purchase
Detailed specifications
Power & battery8
- Totalpower
- 24kw
- Fanmotorpower
- 12Kw/fullpressure5500Pa/airvolume11500cubicmeters/h
- Rotarymotorpower
- 0.75Kwdigital drive motor
- PowerRequirements
- 380V/22Kw,50Hz/60Hz
- Waterpumpmotorpower
- 11Kw
- Longitudinalmotorpower
- 0.37Kwsteplessfrequencycontrol
- Transversal Motorpower
- 0.75Kwdigital drive motor
- Liquidproportioningsystemmotorpower
- 0.75kw
Other30
- Air
- 80A
- Speed
- 360 plusWASH28seconds,energysaving60%
- Pump Size
- 1250 mm * 800 mm * 600 mm
- Price Tier
- 20-40K
- DriveSystem
- Promise frequency digital drive
- Machine Size
- 3500mm* 1200mm* 900mm
- Track Length
- 7500 mm
- Applications
- floor_cleaning
- Sub Category
- car_washing
- SensingSystem
- Ultrasound+Absolutevalueofthedigitalencoder
- Warranty Years
- 3
- Detectionsystem
- Smartthree-dimensional monitoring system
- Company Country
- CN
- Procedure Types
- high pressure pre-washing,chemical spraying,360° high-pressure washing,air drying
- Centralprocessor
- IndustrialPLCembeddedcentralprocessor+dual-coresystem
- Waterconsumption
- StandardWASH94L/car, FineWASH150L/car
- Industries Served
- automotive
- Availability Status
- available
- WASHliquidconsumption
- Depends on liquid proportioning
- Electricityconsumption
- StandardWASH0.52 kW·h/car, FineWASH0.99 kW·h/car
- Shipment Weight/Volume
- 2.6 tons, 11 CBM
- Additional Information
- - This is a stationary, non-autonomous car wash system (gantry/rollover style), not a free-roaming robot. - It uses high-pressure water jets and chemicals instead of brushes (touchless). - Features 'Smart 360 premium' technology for self-optimization of the wash cycle. - Includes an intelligent chemical mixing system with high-precision metering (20-50ml per wash). - Quad-motor drying system (4 x 5.5 kW) for 90% drying efficiency. - Uses a German PINFL high-pressure piston pump and Siemens motor. - Wash cycle time: ~28 seconds per rotation; complete wash ~5 minutes. - Water consumption: 94L (standard) to 150L (fine) per car. - Electricity consumption: 0.52-0.99 kWh per car. - Supports multiple control modes: touch screen, magnetic card, payment station, remote control. - Suitable for vehicles up to 5900mm x 2900mm x 2050mm. - Requires three-phase industrial power (380V, 50/60 Hz). - Shipping: ~26 cubic meters, ~2600 kg, requires a 40-foot container. - Warranty: 3 years on complete machine (excluding courier fees for replacement parts).
- MountingDimensions(Height)
- ≥3350mm
- Polish Shampoo Consumption
- 10ml-40ml
- Chemical Mixing System Size
- 1490mm* 500mm* 1000mm
- Crystalwaxcoatingconsumption
- 11L could apply for 1000 cars
- MountingDimensions(Floormountingwidth)
- ≥23850mm
- MountingDimensions(Ceilingmountingwidth)
- ≥23600mm
- Installation Size (Floor Installation Length)
- ≥7600 mm
- Installation Size (Ceiling Installation Length)
- 8800 mm ~ 7500 mm
