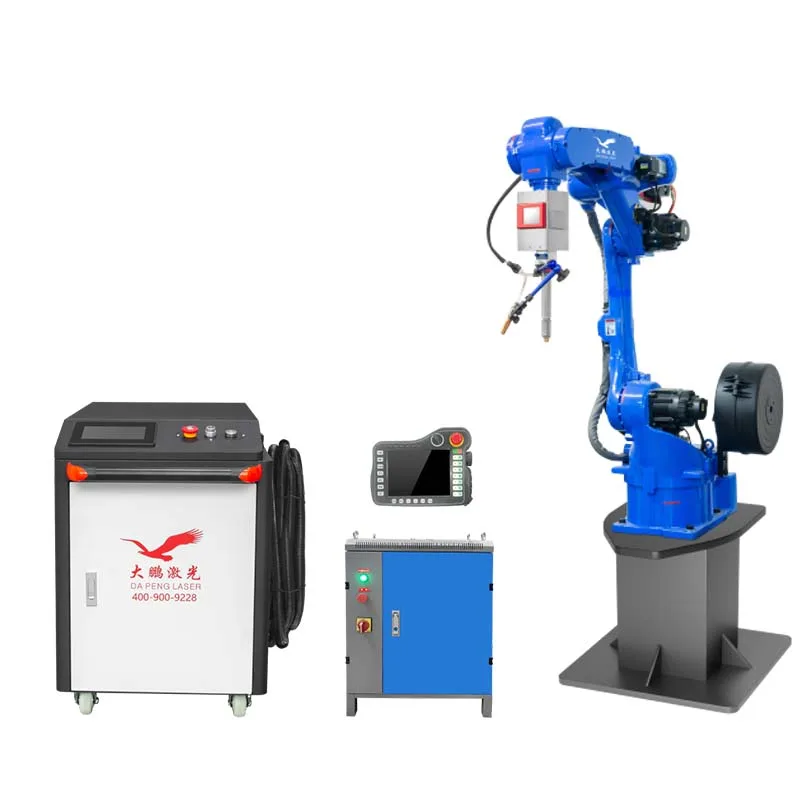

6 Axis Robotic Laser Welding Machine
Built by DP LASER · China
Overview
The six-axis robot laser welding machine is the most typical robot application. It is mainly composed of joints and connecting arm. The robot arm and wrist cooperate to complete the target trajectory movement, with 6 degrees of freedom in space. Laser welding robotic system offer a great mix of speed, reach, payload capacity, and reach. These robots can cover the vast majority of laser welding applications. They excel in small to medium-sized welding tasks. Their excellent range of motion helps them weld complex part geometries. The labor cost of mass production is high, and the robot arm can work 24 hours a day, and can turn left and right to double-station work, which greatly improves work efficiency and saves costs.
Specifications
Category: Industrial Arm- Arm class
- welding
- Axes
- 6
- Payload
- ≤ 25 kg
- Reach
- ≤ 1840 mm
- Repeatability
- ±0.05 mm
- Weight
- 260 kg
- Programming
- teach pendant
- Force limiting
- No
- Maturity
- commercial
- Industries
- automotive, electronics, metal_fabrication
Detailed specifications
Motion & kinematics2
- Axis Speeds Deg S
- {"J1":145,"J2":133,"J3":145,"J4":217,"J5":172,"J6":500}
- Axis Operating Ranges
- {"J1":"±165°","J2":"+80°~-150°","J3":"+125°~-75°","J4":"±135°","J5":"+115°~-140°","J6":"±220°"}
Power & battery1
- Laser Power
- 1000W~6000W Optional
Other13
- Duty Cycle
- 100%
- Scan Width Mm
- 3.5
- Contact Emails
- [email protected]
- Welding Method
- Flat welding
- Laser Head Brand
- WSX/Raytool/OSPRI Optional
- Laser Source Brand
- RAYCUS/MAX/BWT Optional
- Welding Speed Mm S
- 300
- Robot Body Weight Kg
- 260
- Welding Frequency Hz
- 1000
- Welding Thickness Mm
- {"aluminum":"0.5-8","carbon_steel":"0.5-10","stainless_steel":"0.5-10"}
- Hollow Shaft Diameter
- φ27 (J3), φ45 (J6)
- Barometric Pressure Bar
- 10
- Robot Control Cabinet Weight Kg
- 80
