Overview

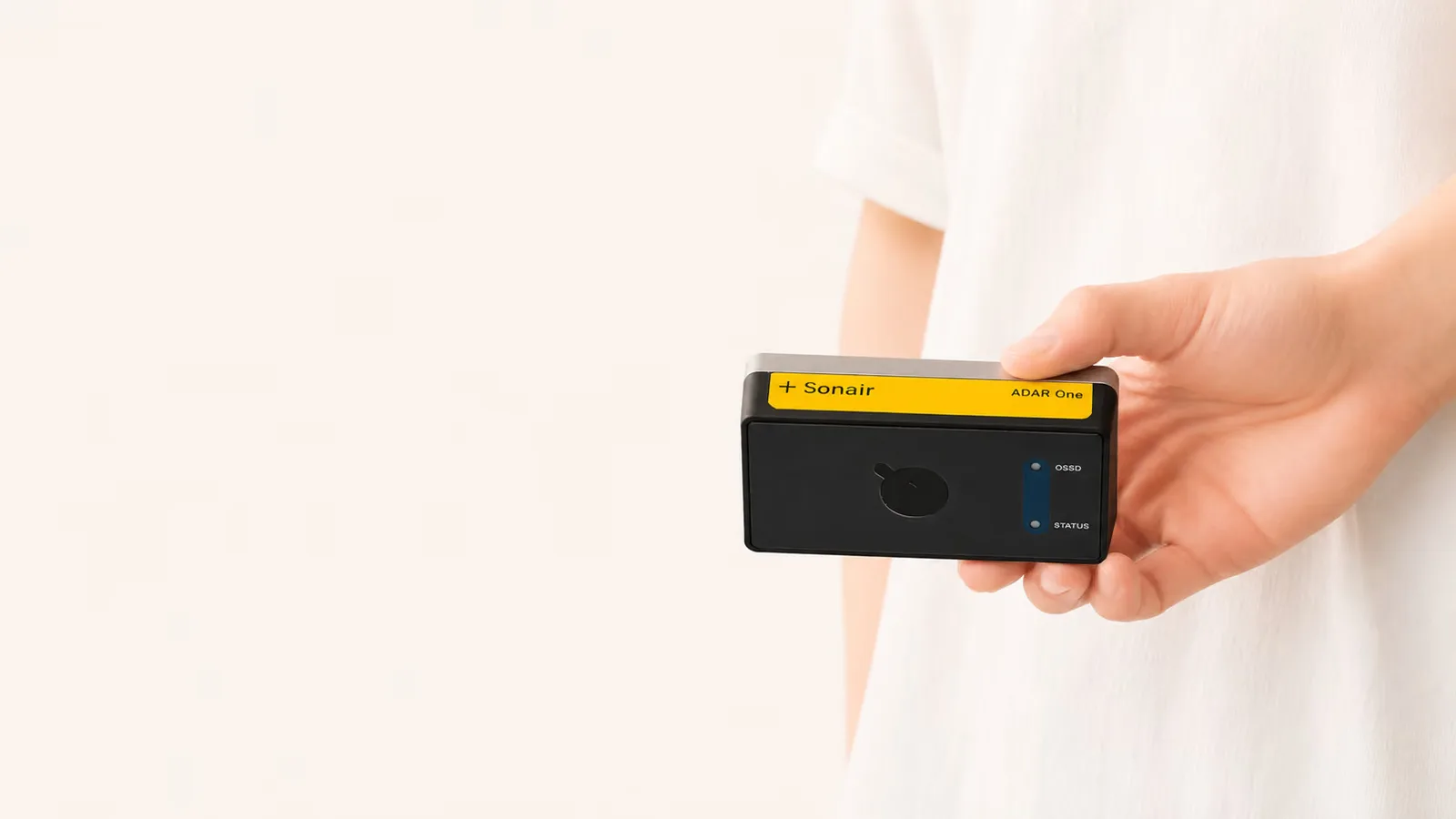

ADAR One is the world's first safety-certified 3D ultrasonic sensor for human-robot collaboration.
Key specs
- Built for autonomous mobile robots and industrial automation
- Used across industrial automation
- Compatible with ROS
- Certified to IEC 61496 and IEC 61508
- Rated for operation at 0 to +50 Celsius
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
Specifications not yet on file.
Detailed specifications
What it is built for3
- Industries
- industrial automation
- Applications
- mobile robots,machine safety
- Primary Applications
- autonomous mobile robots,industrial automation
Sensing & perception4
- 3D ultrasonic sensor
- Yes
- No
- Yes
Controls & integration2
- Yes
- ethernet
Safety & certification4
- Certifications
- IEC 61496, IEC 61508, ISO 13849, SIL 2, PL d
- 0 to +50 Celsius
- Temperature Range Max C
- 50
- Temperature Range Min C
- 0
Buying & support3
- Datasheet Url
- View Link
- Price On Request
- Yes
- Availability Status
- available
Other details33
- Size
- Height 54 mm, width 104 mm, depth 25 mm
- Weight
- 200 g
- Frame Rate
- Max 18 Hz
- Interfaces
- Safe output: 1 OSSD Pair, Safe inputs: 11 static control inputs, Data interface: 1 Ethernet (COAP over UDP/IP)
- Technology
- 3D ultrasonic sensor
- Availability
- available now
- Built In Rust
- Yes
- Field Of View
- 180° × 180°
- Response Time
- Min 112 ms
- Sensing Range
- 4 m
- Supply Voltage
- 24 V DC (18 V to 28 V DC)
- Detection Range
- 0-4 m
- Range Precision
- 2-10 cm
- Safe Zone Count
- 128
- Sensor Standard
- IEC 61496 (with adaptations to ultrasound technology)
- Display Elements
- 2 dual color LEDs
- Integration Ease
- tiny footprint, easy integration
- Sensing Modality
- sound instead of light
- Angular Precision
- 0-45°: ~3° 45-70°: ~6° 70-90°: > 10°
- Power Consumption
- Max 5 W
- Angular Resolution
- 2° straight ahead and 10° to the sides
- Programming Language
- Rust
- Ultrasonic Frequency
- 65-85 kHz
- Detection Close Range
- 0-5 cm
- Integration Scenarios
- Primary safety sensing, Safety redundancy layer, Complementing LiDAR or cameras, Compact robot platforms, Fleet-scale deployment
- Object Classification
- ADAR One does not do object classification.
- Programming Languages
- Rust
- Number Of Zone Presets
- 128
- Configurable Safety Zones
- 128
- Max Points In Point Cloud
- The maximum number of points is very rarely a limitation to the sensor’s performance.
- Ec Type Examination Certificate
- exida, a notified body under the Machinery Directive 2006/42/EC
- Probability Of Dangerous Failure
- below 1.5 x 10⁻⁷ per hour
- Number Of Simultaneously Monitored Zones
- 3
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Frequently asked questions
- Who makes the ADAR One?
- The ADAR One is developed by Sonair, based in Norway.
- What type of robot is the ADAR One?
- The ADAR One is a Industrial Arm made by Sonair.
- How much does the ADAR One cost?
- Pricing for the ADAR One is not publicly listed. Contact Sonair for a quote.
- What are the key specifications of the ADAR One?
- Key specifications of the ADAR One: safety cert. SIL2 (IEC 61508), PL d (EN ISO 13849), IEC 61496, industries industrial automation.
