Advanced Fully Automatic Palletizing Robot
Built by Alpha-Pack (Heyuan)
Overview

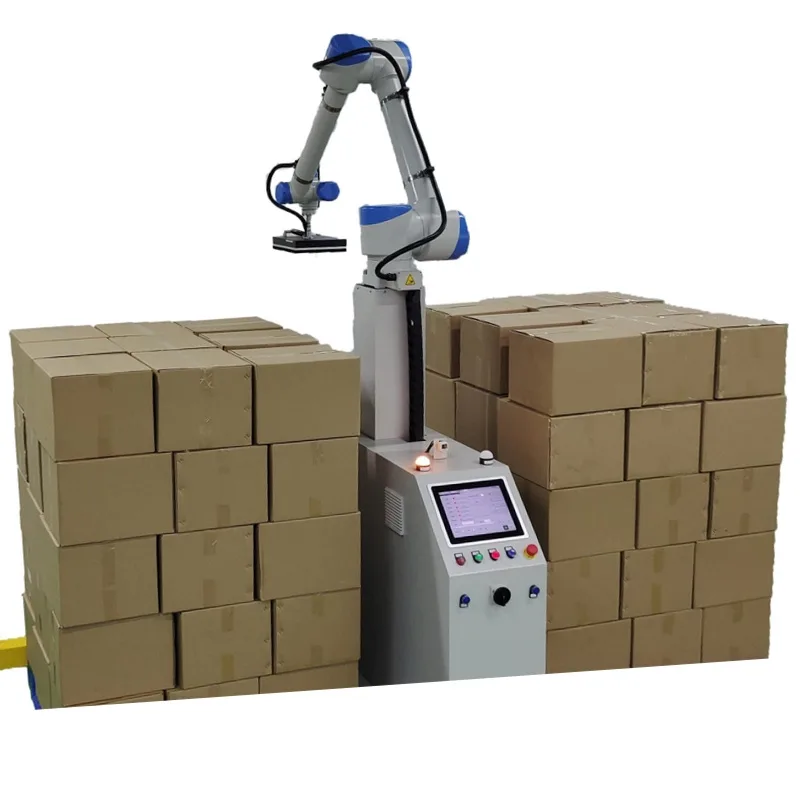

The APR-C20H Robot Palletizer Workstation is a small goods-handling expert tailor-made for food, medicine, 3C, food, printing, daily chemical and other industries. Visual programming design only takes 5 minutes. After entering the information within a few minutes, the products/cartons can be stacked on the wooden board to realize unmanned handling.
Specifications
Category: Industrial Arm- Arm class
- palletizing
- Payload
- 20 kg
- Reach
- ≤ 1600 mm
- Weight
- ~350 kg
- IP rating
- IP54
- Programming
- simple palletizing software
- Force limiting
- No
- Maturity
- commercial
- Industries
- logistics, warehousing, packaging
Detailed specifications
Motion & kinematics1
- Re Read Positioning Accuracy
- ±0.04
Power & battery1
- Power
- 220V 3.75KW, 1Ph, 50Hz / 220V 4.5KW, 1Ph, 50Hz
Other14
- Speed
- 5-10 cycles/min
- Price Tier
- 20-40K
- Applications
- palletizing,depalletizing
- Sub Category
- palletizing
- Pricing Model
- purchase
- Model Variants
- APR-C20H,APR-C20L
- Working Radius
- 1650mm / 2200mm
- Placement Rules
- AB stack
- Material Handling
- plywood, plastic, wood
- Training Required
- basic_<1day
- Palletizing Height
- Fixed Base 1.65Meter / Liftable 2.2Meter
- Availability Status
- available
- Barometric Pressure
- 0.4-0.8 Air consumption: 450L/min
- Applicable Carton Range
- L:180-520mm, W:280-520mm, H:180-420mm
