Overview

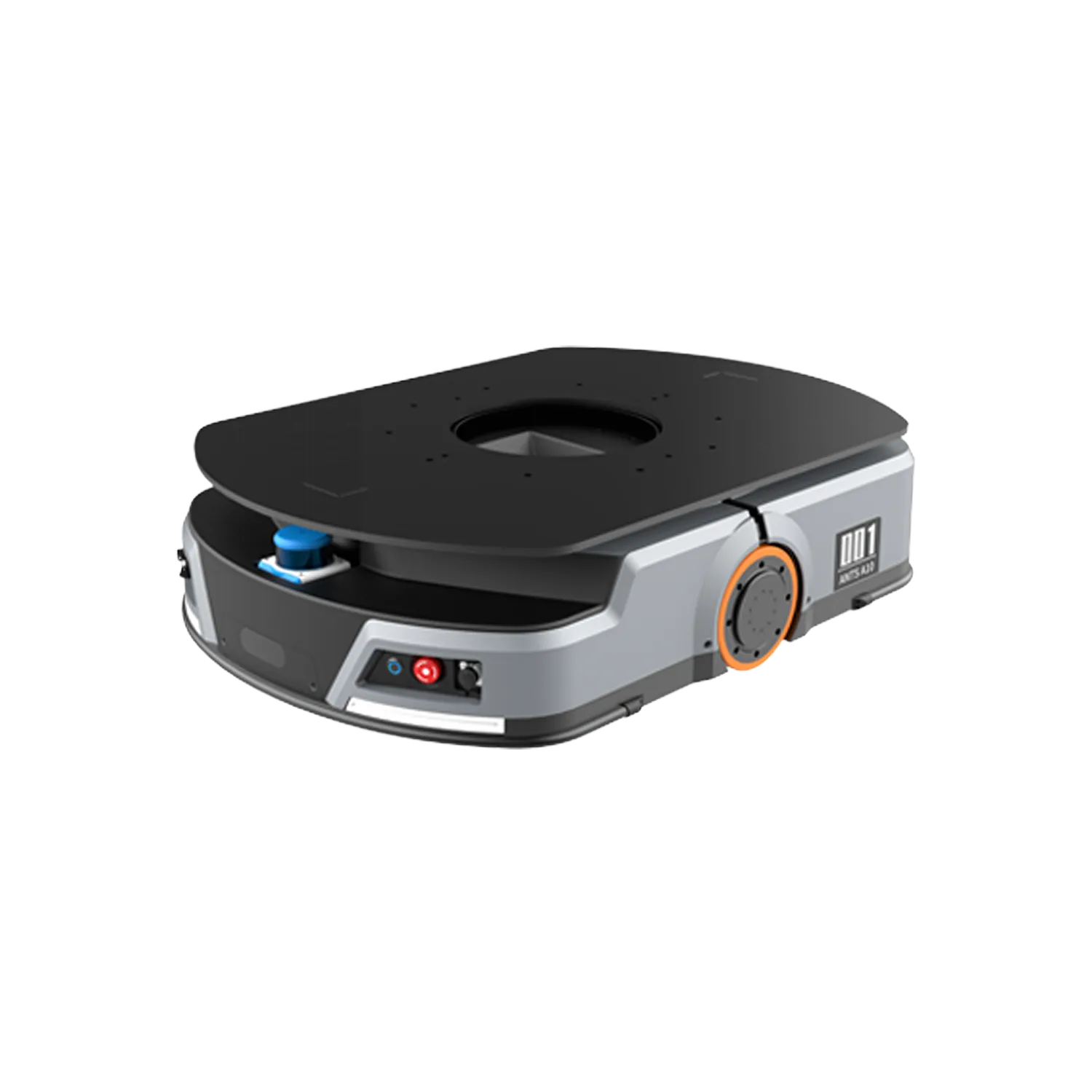

The Ants 20 is an AMR lifting system designed for efficient, precise, and flexible material handling in warehouse and industrial environments. It features QR Code or Laser Reflector navigation, a maximum payload of 1600 kg, and a lifting distance of 68 mm. The unit supports forward, backward, swerve, and rotate movement modes, and includes safety features such as front laser detection and visual recognition. It has a rated operating speed of 1 m/s at full load and a maximum speed of 1.5 m/s when empty, with a rated operating time of at least 8 hours and a charging time of no more than 1.5 hours. The system is rated for a grade-ability of 3% at full load and 5% empty, and can cross gaps of 5 mm and obstacles of 8 mm.
Key specs
- Built for case picking and pallet picking
- Used across ecommerce fulfillment and general warehousing
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- 1 m/s
- Qr code,magnetic tape
- 8 h
Lasts longer than 27% of 266 Warehouse AMR robots with this spec
Detailed specifications
What it is built for4
- Industries
- ecommerce fulfillment,general warehousing
- AMR lifting system
- Payload Class
- heavy
- Primary Applications
- case picking,pallet picking
Size & capacity5
- Width Mm
- 810
- Height Mm
- 275
- Length Mm
- 1146
- Dimensions Mm
- 1146×810×275
- Rotating Diameter Mm
- 1150
Movement & precision1
- 3
Sensing & perception1
- Yes
Power & runtime1
- 1.5
Controls & integration2
- Network Protocols
- wifi 6
- wifi
Buying & support2
- Datasheet Url
- View Link
- Price On Request
- Yes
Other details21
- Navigation
- QR Code/Laser Reflector
- Movement Mode
- Forward, Backward, Swerve, Rotate
- Stop Accuracy
- ±5 (QR code endpoint positioning)
- Lift Height Mm
- 68
- Safety Features
- Front Laser Detection, Visual recognition
- Rotating Diameter
- 1150
- 1150
- ≤1.5
- Lifting Distance Mm
- 68
- Gap Obstacle Crossing
- 5/8 mm
- Grade Ability No Load
- 5%
- Grade Ability Percent
- 3/5 (full load/no load)
- Max Speed Unloaded Ms
- 1.5
- Network Configuration
- 5.8GHz WiFi
- Grade Ability Full Load
- 3%
- Max Speed Full Load M S
- 1
- Localization Accuracy Mm
- 5
- Max Speed Empty Load M S
- 1.5
- Rated Operating Time Hours
- ≥8
- Gap Obstacle Crossing Capacity
- 5/8
- Rated Operating Speed Full Load M S
- 1
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
19 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Compare with
More by Zhejiang Guozi Robotics
Frequently asked questions
- Who makes the Ants 20?
- The Ants 20 is developed by Zhejiang Guozi Robotics, based in China.
- What type of robot is the Ants 20?
- The Ants 20 is a Warehouse AMR made by Zhejiang Guozi Robotics.
- How much does the Ants 20 cost?
- Pricing for the Ants 20 is not publicly listed. Contact Zhejiang Guozi Robotics for a quote.
- What are the key specifications of the Ants 20?
- Key specifications of the Ants 20: top speed 1 m/s, navigation qr code,magnetic tape, runtime 8 h.
