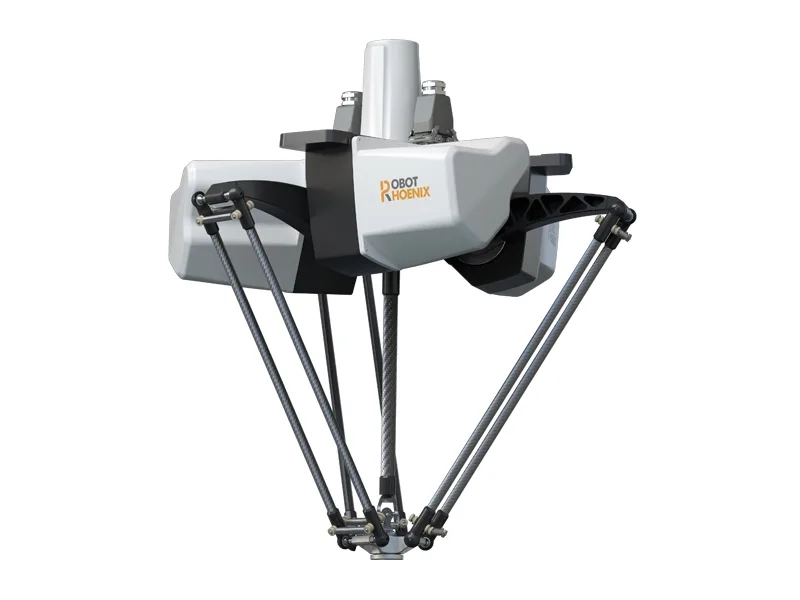

New Design Industrial High Speed High Accuracy Suspended Type Pick and Place Delta Robot Arm for Packaging
Flagship features
- Robotphoenix is a Chinese manufacturer (CN)
- Company is listed on HKEX (stock code 06871.HK)
- Offers OEM robots
- Robots are officially integrated into Automation Studio for simulation and offline programming
- Won the 2023 Ringier Technology Innovation Award in Intelligent Manufacturing
- Holds MTBF certification for delta robots
Specifications
Category: Industrial Arm- Arm class
- delta
- Axes
- 4
- Payload
- 3 kg
- Reach
- 800 mm
- Repeatability
- ±0.08 mm
- Weight
- 70 kg
- TCP speed
- 6 m/s
- IP rating
- IP54
- Mounting
- ceiling
- Programming
- proprietary app
- Force limiting
- No
- Maturity
- commercial
- Industries
- automotive, electronics manufacturing, food-and-beverage
Detailed specifications
Power & battery1
- Power Consumption W
- 3400
Safety & certifications1
- Safety Features
- Collision Detection System,Emergency Stop Button,Safety Light Curtain,Safety Mat
Other17
- USB
- 1 port
- Origin
- China
- Ethernet
- 2 ports
- Trademark
- Robotphoenix
- Drive Mode
- Electric
- Price Tier
- 10-20K
- RS232/RS485
- 1 port
- Applications
- packaging,sorting,processing,producing
- Sub Category
- delta
- I/O Interface
- 4 configurable digital input/output channels; 8 universal digital input/output channels (expandable by another 8 digital input/output channels); 2 encoder input channels
- Specification
- custom
- Max Speed M S
- 6
- Operating Temp
- 0-45℃
- Company Country
- CN
- Transport Package
- Carton
- Communication Protocol
- Modbus-RTU/TCP, Socket
- Additional Information
- - Robotphoenix is a Chinese manufacturer (CN). - Company is listed on HKEX (stock code 06871.HK). - Offers OEM robots. - Robots are officially integrated into Automation Studio for simulation and offline programming. - Won the 2023 Ringier Technology Innovation Award in Intelligent Manufacturing. - Holds MTBF certification for delta robots. - Member of the International Federation of Robotics (IFR). - Provides integrated 2D/3D vision systems. - Serves food & beverage, pharmaceutical, daily chemical, 3C, new energy, and automotive industries. - Deployment case studies available on their video page (e.g., persimmon ripening spray, metal part tracking, soy sauce bucket boxing, automatic packing).
