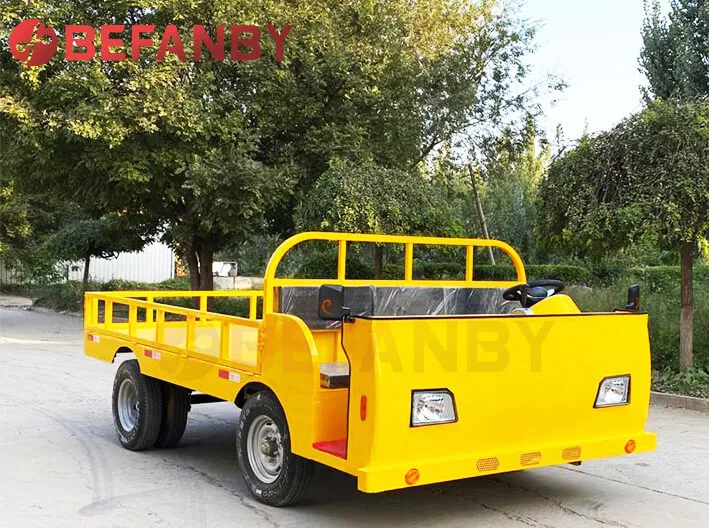

Battery-Power Transfer Cart
Built by Xinxiang Better Smart Transport Equipment Co., Ltd. · China
Overview
Our motorized material transfer facility is mainly designed to transport heavy cargo of industrial factory. It is powered by battery is installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, speed control, etc.
Key facts
- Payload
- 35000 kg
Detailed specifications
Power & battery4
- Battery Voltage
- 24, 48, 48, 72, 72
- Motor Power(Kw)
- 1, 2.2, 5, 10, 15
- Battery Capacity
- 180, 180, 330, 440, 600
- Running Distance For One Charge(Km)
- 6.5, 4.8, 4, 3.8, 3.2
Compute1
- Package Gross Weight
- 1000
Other23
- Material
- Steel
- Height Mm
- 500
- Price Tier
- $3,000-3,500
- Package Size
- 100.00cm * 200.00cm * 100.00cm
- Applications
- Steel Industry, Factory, Warehouse
- Load Capacity
- 1-300ton
- Rated Load(T)
- 2, 20, 50, 100, 150
- Specification
- 2000*2000*500
- Max Speed M S
- 0.5
- Wheel Base(Mm)
- 1200, 2800, 4200, 4900, 7000
- Model Variants
- BXC-2t, BXC-20t, BXC-50t, BXC-100t, BXC-150t
- Warranty Years
- 2
- Table Size (Mm)
- {"Width(W)":[1500,2200,2500,2800,3000],"Height(H)":[450,550,650,900,1200],"Length(L)":[2000,4000,5500,6500,10000]}
- Special Function
- Anti-Explosion,Heat-Resistant,Lifting,Customized
- Walking Speed Ms
- 0.0333
- Youtube Video Id
- SsDzOiPDXbQ
- Industries Served
- metallurgy, coal
- Production Capacity
- 50 Sets/Month
- Wheel Diameter (Mm)
- 270, 350, 500, 600, 600
- Rail Inner Gauge(Mm)
- 1200, 1435, 1435, 2000, 2000
- Running Speed (M/Min)
- 0, 25, 0, 20, 0, 20, 0, 20, 0, 18
- Recommended Rail Model
- P15, P24, P43, QU100, QU100
- Running Time When Full Load
- 4.32, 4, 3.3, 3.2, 2.9
