Overview

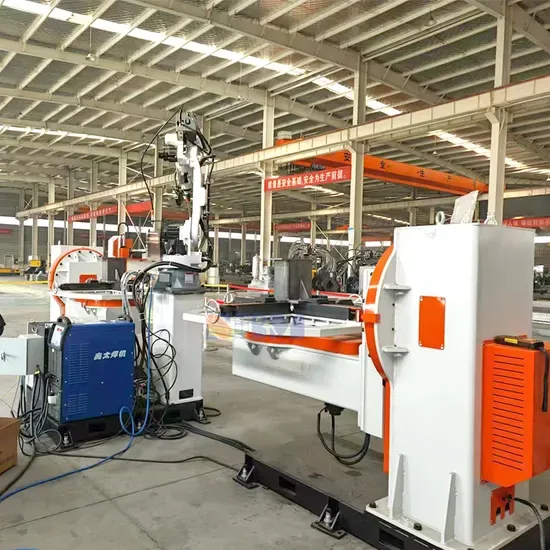

The Raintech Industrial Robot Welding Robot Arm Arc Welding Robot Station with Vision System is a single-machine intelligent welding workstation primarily used for robot-automated welding of various steel structure fillet welds. It meets the welding requirements of fillet welds such as H-shaped steel structures and diaphragms. The workstation includes a control system, ground-track walking mechanism, arc welding robot, welding power source and cooling water tank, intelligent welding vision system, water-cooled welding gun, and a gun cleaning station. It supports welding seam forms like straight flat fillet welds, flat folding fillet welds, fillet welds in the vertical position, and corner wrapping welding (excluding multi-layer and multi-pass). The system is designed for stable operation over two shifts per day with reliable accuracy and robust construction.
Key facts
- Repeatability
- ±0.08 mm
Detailed specifications
Motion & kinematics3
- Axis Speeds Deg S
- {"J1":122.9,"J2":93.1,"J3":137.2,"J4":294.1,"J5":294.1,"J6":426.7}
- Joint Motion Ranges
- {"J1":"±173°","J2":"+85°-150°","J3":"±80°","J4":"±150°","J5":"+130°-105°","J6":"±220°"}
- Max Joint Speed Deg S
- 426.7
Other4
- Contact Emails
- service@madeinchina.com
- Protection Level
- Equivalent to IP54
- Welding Speed M Min
- 2
- Installation Methods
- Ground,Hanging,Side installation
