The BRTIRUS0707A is a Industrial Arm developed by RBTC. Key specifications: arm class small payload, repeatability ±0.03 mm, controller HC Control System, programming teach pendant.
Robo Score
Speculative — thin evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
2 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 2 scored · blanks don't count
Ranked in the Industrial Arm standing, against 774 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how BRTIRUS0707A measures up, requirement by requirement. The Robo Score (trust) above is shown for every buyer, regardless.
Overview

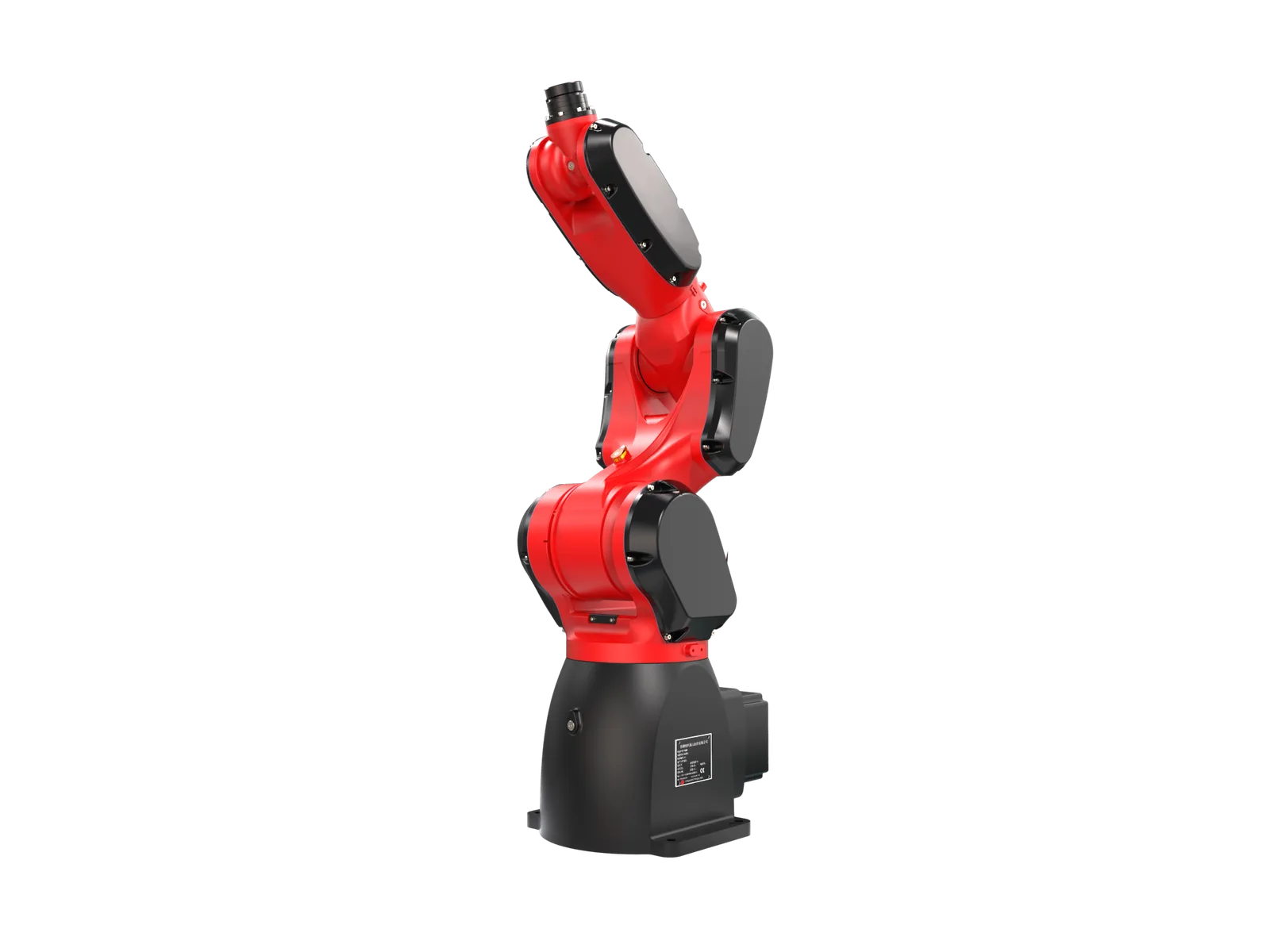

The BRTIRUS0707A is a six-axis industrial robot developed by RBTC for monotonous, frequent, and repetitive long-term operations or operations in dangerous and harsh environments. With a maximum arm length of 700mm and a load capacity of 7kg, it offers flexibility with multiple degrees of freedom. It is suitable for applications such as polishing, assembling, painting, and more. The robot features a protection grade of IP65, making it dust-proof and water-proof, and boasts a repeat positioning accuracy of ±0.03mm.
Buyer decision signals
Viability
TechNite 2022 honors
Specifications
Category: Industrial Arm- Arm class
- small payload
- Repeatability
- ±0.03 mm
- Controller
- HC Control System
- Programming
- teach pendant
Detailed specifications
Power & battery1
- Power Source
- 2.93kVA
Other7
- Mpa
- 0.5~0.7MPa
- Range(Arm)
- J1:±174° J2:-125°/+85° J3:-60°/+175°
- Range(Wrist)
- J4:±180° J5:±120° J6:±360°
- Max.Speed(Arm)
- J1:220.8°/s J2:270°/s J3:375°/s
- Best Temperature
- 15℃~25℃
- Max.Speed(Wrist)
- J4:308°/s J5:300°/s J6:342°/s
- Relative Humidity
- 20~80% RH (No condensation)
