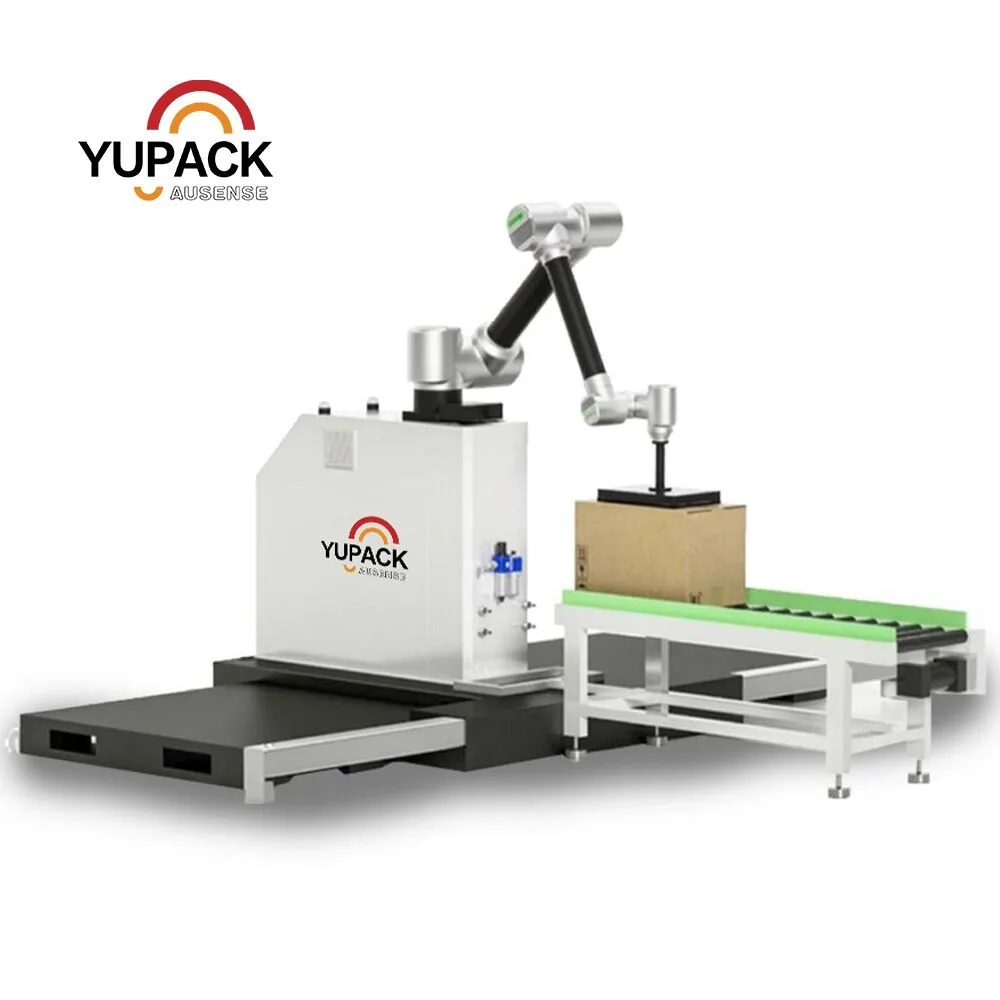

Cobot Palletizer and Pallet Wrapper

Overview
Cobot Palletizer and Pallet Wrapper is an advanced collaborative robotic solution designed to automate palletizing and wrapping processes in modern manufacturing and logistics environments. Combining precision robotics with fully automated pallet wrapping technology, this system efficiently handles boxes, bags, and other packaged goods, reducing manual labor and improving workplace safety. The collaborative robot (cobot) ensures safe interaction with operators, allowing flexible deployment without extensive safety fencing. Equipped with an intelligent control system, users can easily program stacking patterns, adjust pallet sizes, and customize wrapping parameters to suit various product types and production requirements.
Key facts
- Payload
- 25 kg
- Reach
- 1,680 mm
- Speed
- —
- Weight
- 600 kg
- IP rating
- —
- Battery
- —
- Power
- —
- Autonomy
- —
- Launch year
- —
- Price
- —
- Status
- active
Detailed specifications
Motion & kinematics1
- Repeatability Mm
- 0.05
Power & battery4
- Power
- 9
- Voltage
- 380V 50Hz 3pH(Can Be Customized)
- Power Supply
- 220V, 50HZ, 1P
- Power Consumption W
- 3500
Safety & certifications1
- Safety Certification
- ISO, CE
Other17
- Net Weight
- 500
- Price Tier
- 20-40K
- Applications
- palletizing, packaging
- Machine Size
- L2000*W2100*H1800mm
- Sub Category
- palletizing
- Material Type
- carbon steel
- Model Variants
- AWP-20L, AWP-20S, AWP-40, AWP-40L, AWP-40S
- Operating Temp
- 0-50℃
- Warranty Years
- 1
- Industries Served
- cosmetics, drinks, dairy products, pharmaceuticals
- Fieldbus Protocols
- EtherCAT
- Palletizing Height
- 2100
- Availability Status
- available
- Packaging Efficiency
- 8-12 boxes/minute
- Extras.Contact Emails
- info@auctech.com.cn
- Programming Interface
- teach_pendant
- Additional Information
- - Supports vacuum grippers and mechanical claws. - Designed for plug-and-play deployment. - Achieves a palletizing cycle of less than or equal to 10 pcs/min. - Automatic lifting to a maximum palletizing height of 2450mm. - Mechanical collision prevention for increased safety.
