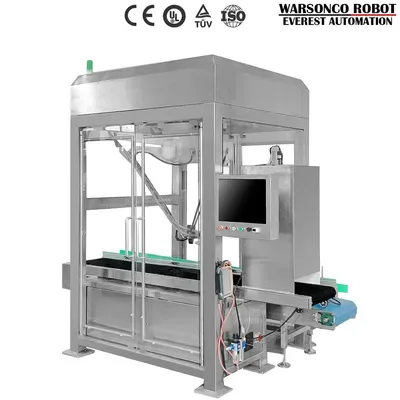

Delta Robot Case Packer (Model CZX12A-200)
Built by Qingdao Ausense Packing Equipment · China
The Delta Robot Case Packer (Model CZX12A-200) is a Industrial Arm developed by Qingdao Ausense Packing Equipment (China). Key specifications: repeatability ±0.1 mm, programming teach pendant,drag and drop,code ros, safety cert. ISO/TS 15066, CE, force limiting Yes.
Robo Score
Speculative — thin evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Ranked in the Industrial Arm standing, against 774 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Delta Robot Case Packer (Model CZX12A-200) measures up, requirement by requirement. The Robo Score (trust) above is shown for every buyer, regardless.
Overview
High-speed delta robot case packer for end-of-line automatic picking and packing of products into cartons or cases, supporting various product types and packing patterns.
Buyer decision signals
Viability
Qingdao Ausense launches a heavy-duty collaborative robot
Price
purchase
Availability
Specifications
Category: Industrial Arm- Repeatability
- ±0.1 mm
- Programming
- teach pendant,drag and drop,code ros
- Safety cert.
- ISO/TS 15066, CE
- Force limiting
- Yes
- Industries
- food_bev, pharma, cosmetics
Company profile
- Founded
- 1998
Detailed specifications
Motion & kinematics2
- Torque Nm
- 5
- Max Speed Single Joint
- 90-180°/s
Power & battery3
- Power Supply
- 3phase, 220V/380V, 50/60Hz, 5kw
- Rated Power W
- 200-800
- Supply Voltage
- 24VDC/48VDC
Sensors1
- Dynamic Maximum Speed End Effector
- 0.5-2m/s
Compute2
- Ros Compatible
- true
- Package Gross Weight Kg
- 100
Other30
- Origin
- China Qingdao
- Hs Code
- 84224000
- Trademark
- YUPACK
- Price Tier
- 20-40K
- Air Pressure
- 6kg/Cm2, 450ml/Min
- Applications
- pick_and_place,packing
- Sub Category
- delta robot
- Api Available
- true
- Material Type
- Solid
- Packing Speed
- 18-30 cases/min
- Pricing Model
- purchase
- Model Variants
- CZX12A-200
- Operating Temp
- -10°C ~ +50°C
- Transported By
- Standard Wooden Case
- Machine Size Mm
- L5500-7500*W1600 H2500
- Package Size Cm
- 100.00 * 100.00 * 100.00
- Control Cycle Ms
- 1
- Forming Function
- Forming, Filling, Seal
- Compatible Vision
- RGB-D camera,LiDAR
- Packaging Material
- Paper
- Availability Status
- available
- Countries Available
- China,Russia
- Grab Quantity Weight
- 3 sets or 6 sets / 200kg
- Suitable Bottle Type
- All Kinds of Bottles, Cans
- Additional Information
- Supplier is a Diamond Member since 2015, audited by third-party inspection agency.,Supplier has import/export rights and over 10 years of export experience.,Supplier has 14 foreign trading staff and 10 staff with over 6 years of overseas trading experience.,Languages supported by foreign trade staff: English, Russian.,Product customizable (Customization: Available).,CE certified.,Integrated with vision system or product detection sensors.,Equipped with PLC control system and user-friendly HMI interface.,Quick changeover design and recipe management functions.,Safety features include protective enclosures, light curtains, emergency stop devices, and alarm systems.,Seamless integration with case erectors, conveyors, sealing machines, palletizers, and wrapping systems.,Carbon fiber material improves payload-to-self-weight ratio.,Supports modular expansion and redundant design.,Optional direct drive or hydraulic for high-load applications.,Supports SLAM real-time localization via optional RGB-D camera/LiDAR.,Supports battery module (for rescue).,Human-robot drag-and-teach / dynamic obstacle avoidance collaborative mode.,Price listed as US$20,000.00-40,000.00 per piece (MOQ 1 Piece).
- Communication Protocol
- EtherCAT/Modbus TCP/ROS
- Development Environment
- ROS/Matlab/Simulink
- Feeding Bottle Height Mm
- 1100 ± 50
- Force Control Resolution N
- 0.1
- Collision Detection Response Time Ms
- 10
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Qingdao Ausense Packing Equipment Co., Ltd. or an authorized seller.
Request a quote — goes straight to Qingdao Ausense Packing Equipment Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Jan 2026LaunchQingdao Ausense launches a heavy-duty collaborative robot
- 2008MilestoneEstablished date reported on company site
- 2001MilestoneFounded date reported by another source
- 1998MilestoneCompany established
Compare with peers
- Compare Delta Robot Case Packer (Model CZX12A-200) with ABB IRB-260080.7
- Compare Delta Robot Case Packer (Model CZX12A-200) with KR 120 R3900-2 K78.0
- Compare Delta Robot Case Packer (Model CZX12A-200) with ABB IRB-460072.8
- Compare Delta Robot Case Packer (Model CZX12A-200) with ABB IRB 120 FlexMove72.8
- Compare Delta Robot Case Packer (Model CZX12A-200) with GEN72-B72.2
More by Qingdao Ausense Packing Equipment
Frequently asked questions
- Who makes the Delta Robot Case Packer (Model CZX12A-200)?
- The Delta Robot Case Packer (Model CZX12A-200) is developed by Qingdao Ausense Packing Equipment, based in China.
- What type of robot is the Delta Robot Case Packer (Model CZX12A-200)?
- The Delta Robot Case Packer (Model CZX12A-200) is a Industrial Arm made by Qingdao Ausense Packing Equipment.
- How much does the Delta Robot Case Packer (Model CZX12A-200) cost?
- Pricing for the Delta Robot Case Packer (Model CZX12A-200) is not publicly listed — contact Qingdao Ausense Packing Equipment for a quote.
- What are the key specifications of the Delta Robot Case Packer (Model CZX12A-200)?
- Key specifications of the Delta Robot Case Packer (Model CZX12A-200): repeatability ±0.1 mm, programming teach pendant,drag and drop,code ros, safety cert. ISO/TS 15066, CE, force limiting Yes, industries food_bev, pharma, cosmetics.
