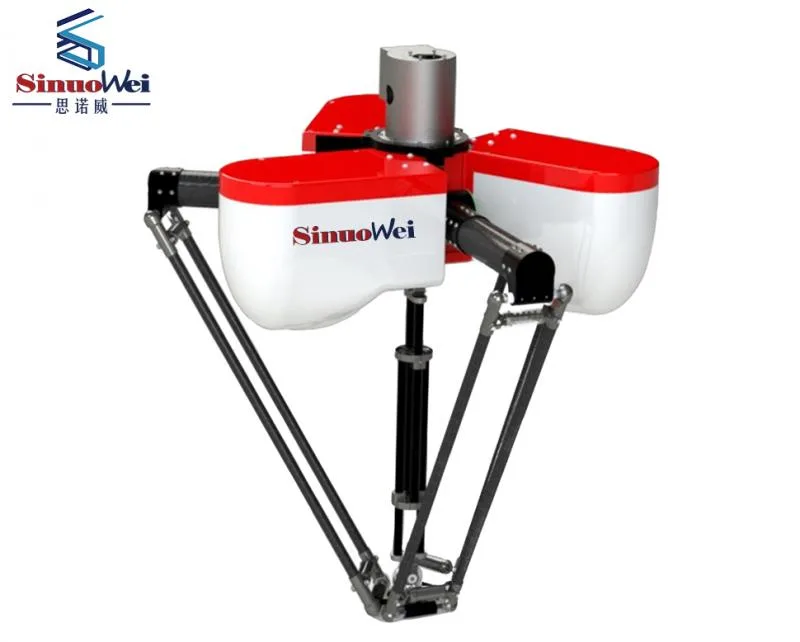

D3S-1100 Automatic Spider Manipulator
Overview
The D3S-1100 is a 4-dof high-speed parallel robot with a diameter of 1100 mm, a height of 370 mm and a maximum load of 3.0 kg. The wide working space makes it suitable for material sorting with large space span, and the design of the middle shaft makes it possible to complete the work which needs rotating movement at the end of the moving platform.
Key facts
- Payload
- 3 kg
- Reach
- 1,100 mm
- Speed
- 6 m/s
- Weight
- 60 kg
- IP rating
- IP56
- Battery
- —
- Power
- —
- Autonomy
- —
- Launch year
- —
- Price
- —
- Status
- active
Detailed specifications
Motion & kinematics4
- Axis Number
- 3+1
- Dof Per Arm
- 4
- Angular Positioning Accuracy(°)
- 1.5
- Repeatable Positioning Accuracy(Mm)
- ±0.1
Power & battery2
- Power Input
- 380VAC,Three-phase five-wire system,Wire diameter≥2.5mm²
- Rated Power
- 7
Sensors1
- Maximum Acceleration(M/S2)
- 100
Safety & certifications1
- Safety Certification
- ISO9001, GMP, ISO, CE[1]
Other3
- Gas Input
- 0.5~0.6MPA
- Rack Size
- L*W*H=1400*1400*2200mm
- Grabbing Speed(Pcs/Min)
- 200
