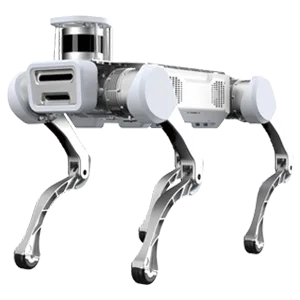

DEEPRobotics Lynx
Built by Hangzhou DEEP RoboticsClaimedGenesis · China
The DEEPRobotics Lynx is a Quadruped developed by Hangzhou DEEP Robotics (China). Key specifications: weight 33 kg, payload 15 kg, top speed 5 m/s, step height 250 mm.
RoboScore
Adequate evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
5 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 5 scored · blanks don't count
Ranked in the Quadruped standing, against 24 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how DEEPRobotics Lynx measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
The DEEPRobotics Lynx is an industrial application quadruped robot, designed for demanding environments such as power & utilities, rescue, tunnel, metal & mining, construction, and research. It serves as a platform for embodied AI, offering robust locomotion for inspection and surveillance tasks in unstructured terrain. The Lynx series includes the M20 and S10 variants, targeting heavy-duty industrial deployment with advanced sensing and payload capabilities.
At a glance
- Built for inspection, surveillance and search rescue
- Used across oil and gas, mining and construction
- Navigates using LiDAR SLAM
- Programmed through teleoperation
- Certified to IP66
- Rated for operation at 20°C to +55°C
Buyer decision signals
Viability
X30 substation inspection deployment
Availability
Specifications
Category: Quadruped- Weight
- 33 kg
- Payload
- 15 kg
- Top speed
- 5 m/s
- Step height
- 250 mm
- Max incline
- 45°
- IP rating
- IP66
- Battery
- 3 h
- Arm-ready
- No
- Environments
- both
Top 38% of 29 models with this spec
Top 19% of 27 models with this spec
Company profile
- Founded
- 2017
Detailed specifications
What it is built for3
- Applications
- inspection,surveillance,search rescue,construction,hazardous env,research
- Sub Category
- industrial quadruped
- Industries Served
- oil and gas,mining,construction,public safety
Size & capacity1
- Height Mm
- 570
Movement & precision1
- Navigation Type
- lidar slam,hybrid
Power & runtime1
- Charge Time Hours
- 1.5
Controls & integration4
- Sensor Suite
- lidar,stereo camera,imu
- Ros Compatible
- Yes
- Onboard Compute
- Dual octa-core 64-bit industrial processors (16 GB + 128 GB) × 2
- Programming Interface
- teleoperation
Safety & certification2
- Operating Temp
- -20°C to +55°C
- Safety Certification
- IP66
Buying & support4
- Model Variants
- LYNX M20,LYNX S10
- Warranty Years
- 1
- Availability Status
- available
- Countries Available
- China,Singapore
Other details11
- Max Payload Kg
- 50
- Electrical Ports
- 72 V power input, Gigabit Ethernet
- Lidar Point Rate
- ~860,000 pts/s
- Standing Size Mm
- 820 × 430 × 570
- Unloaded Range Km
- 15
- Wheel Leg Variant
- Yes (rescue focused)
- Series C Financing
- Over 500 million RMB
- Lidar Field Of View
- 360° × 90°
- Loaded Range Km 15kg
- 12
- Max Single Step Height Cm
- 80
- Safe Operational Speed Ms
- 2
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
1 other robot in this category has one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Hangzhou DEEP Robotics Co., Ltd. or an authorized seller.
Request a quote — goes straight to Hangzhou DEEP Robotics Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Nov 2025DeploymentX30 substation inspection deployment
- Nov 2025DeploymentRobot dogs deployed for substation inspection
- Sep 2022LaunchX30 showcased at GITEX forum
- 2026MilestoneX30 showcased at CES 2026
- 2025MilestoneLite3 Pro showcased at ICRA 2025
- 2025LaunchLYNX M20 announced
- 2025PartnershipUK-China practical cooperation event
- 2025MilestoneX20 listed as a product for power and utilities
Compare with peers
Frequently asked questions
- Who makes the DEEPRobotics Lynx?
- The DEEPRobotics Lynx is developed by Hangzhou DEEP Robotics, based in China.
- What type of robot is the DEEPRobotics Lynx?
- The DEEPRobotics Lynx is a Quadruped made by Hangzhou DEEP Robotics.
- How much does the DEEPRobotics Lynx cost?
- Pricing for the DEEPRobotics Lynx is not publicly listed — contact Hangzhou DEEP Robotics for a quote.
- What are the key specifications of the DEEPRobotics Lynx?
- Key specifications of the DEEPRobotics Lynx: weight 33 kg, payload 15 kg, top speed 5 m/s, step height 250 mm, max incline 45°.
