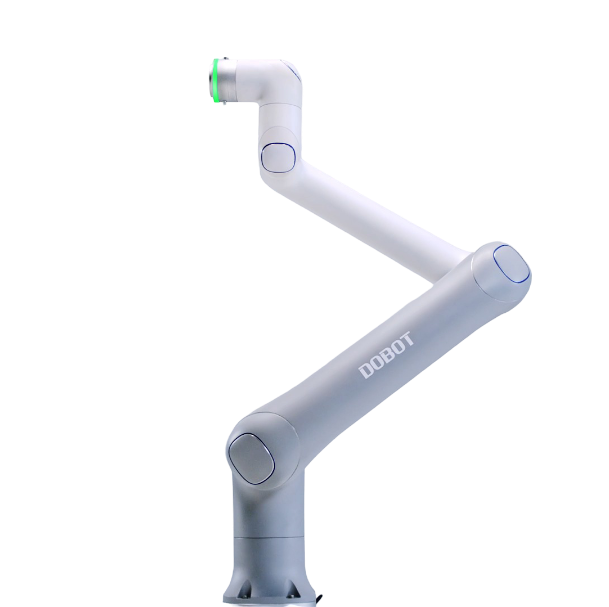

Dobot Cr30h Industrial Robot
Overview
Official Dobot Cr30h 30kg Payload Industrial Robot 1800mm Long Reach & High Stability Advanced Vibration Suppression for Precision Metal Processing & machine
Key facts
- Payload
- 30 kg
- Reach
- 1800 mm
- Repeatability
- ±0.05 mm
- Controller
- DOBOT CR Controller
- Cable routing
- through arm
Detailed specifications
Motion & kinematics5
- Dof
- 6
- Joint Range
- {"J1":"±360°","J2":"±360°","J3":"±163°","J4":"±360°","J5":"±360°","J6":"±360°"}
- Joint Speed
- {"J1":"150°/s","J2":"150°/s","J3":"200°/s","J4":"300°/s","J5":"300°/s","J6":"300°/s"}
- Repeatability Mm
- 0.05
- Max Joint Speed Deg S
- 300
Power & battery2
- Tool Voltage V
- 24
- Power Consumption
- {"average":"500W","maximum":"2500W"}
Safety & certifications3
- Safety Io Pairs
- 10
- Dual Check Safety
- true
- Safety Certification
- CE
Other32
- Arm Class
- heavy_payload
- Industries
- automotive, metal_fabrication, semiconductor, food_beverage
- Price Tier
- 40-80K
- Applications
- palletizing
- Arm Mounting
- Any Angle
- Sub Category
- collaborative
- Datasheet Url
- https://a.storyblok.com/f/298593/x/efea7f5c6c/cr30h_leaflet_en_50f0eb8c.pdf
- Max Speed M S
- 300
- Model Variants
- CR30H with force sensor
- Operating Temp
- 0-50°C
- Price Currency
- EUR
- Tool Current A
- 3
- Analog Io Count
- 4
- Control Cabinet
- {"size":"400mm*190mm*400mm","model":"CC365","weight":"19kg","power_source":"Single Phase 200~240V AC 50/60Hz"}
- Lead Time Weeks
- 3
- Controller Model
- DOBOT CR Controller
- Deployment Notes
- Excellent for food, automotive, logistics, and chemical industries. Handles up to 10 pcs/min with consistent precision. Usual delivery time is 3 weeks.
- Digital Io Count
- 48
- Mounting Options
- floor, wall, ceiling
- Industries Served
- food_and_beverage, automotive, logistics, chemical
- Vibration Damping
- active_model_based
- Fieldbus Protocols
- Modbus, TCP/IP, Profinet, EtherCAT
- Teach Pendant Type
- wired_touch
- Teaching Equipment
- Teach Pendant, PC, APP
- Availability Status
- available
- Programming Interface
- teach_pendant, drag_and_drop
- Additional Information
- - Designed for human-safe operation alongside personnel. - Suitable for diverse industrial tasks, enhancing productivity. - Aimed at multiple sectors including manufacturing and packaging. - Offers advantages in efficiency and competitive edge in automation.
- Internal Cable Routing
- through_arm
- Io Ports At Tool Flange
- {"di":4,"do":4,"power":"0/12/24V, 2A(avg),3A(max)","rs485":1}
- Temperature Range Max C
- 50
- Temperature Range Min C
- 0
- Teach Pendant Display Inches
- 10.1
