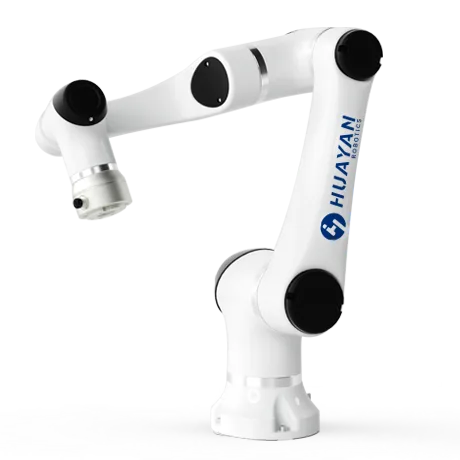

Elfin Collaborative Robot
Built by Shaanxi Jingtai Cooperation Laser Technology Co., Ltd. · CN
Overview
The Elfin collaborative robot can be used in automated integrated production lines, assembly, picking, welding, grinding, spraying and other applications, and has been exported to more than 100 countries and regions. It adopts a unique double-joint module design, where one motion module contains two joints to form a unique kinematic structure, which not only differs from most collaborative robots on the market, but also provides more flexibility when working.
Detailed specifications
Motion & kinematics1
- Joint Speeds
- {"J1-J4":"180°/s","J5-J6":"200°/s"}
Safety & certifications2
- Safety Devices
- Emergency Stop and Collision Detection
- Emergency Protection
- Configurable safe zones and joint limits
Other3
- Dimensions
- {"teach_pendant":"327 mm x 230 mm x (45+22) mm","control_box_Mini":"323mm x 221mm x 80mm","_control_box_Standard":"445.2mm x 318.8mm x (360+176)mm"}
- Contact Emails
- dxk@jtclaser.com
- Operating Conditions
- 90% relative humidity (non-condensing)
