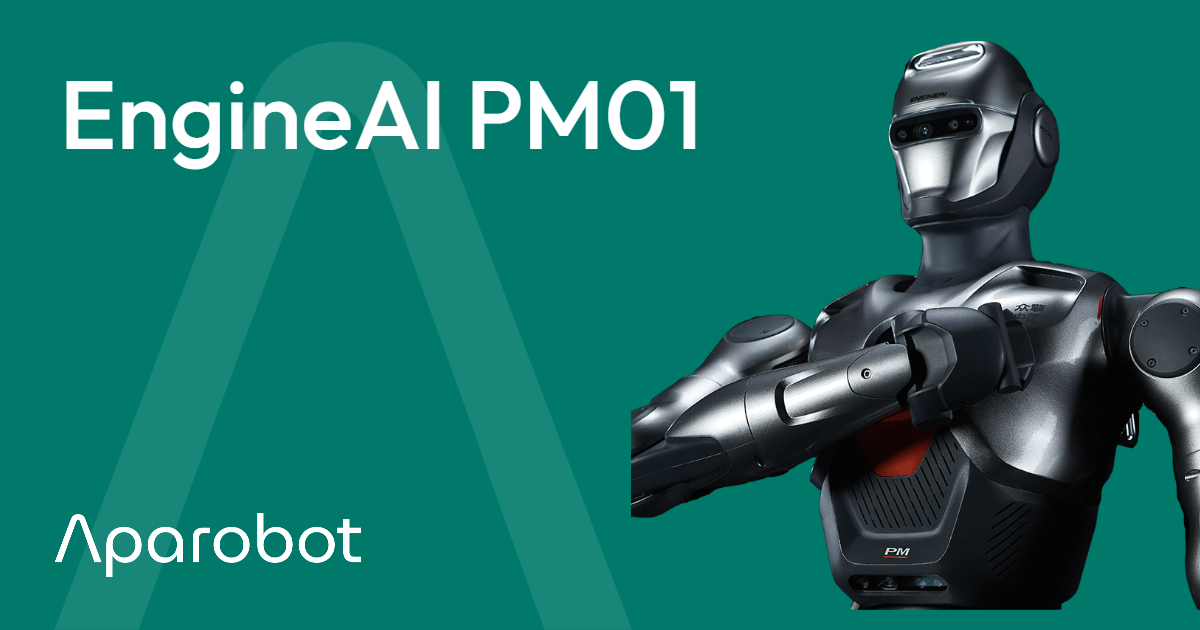

EngineAI PM01
Built by Shenzhen EngineAI Robotics Co., Ltd. · China
Overview
EngineAI PM01 is a next-generation, lightweight humanoid robot standing 1.38 meters tall and weighing approximately 40 kg. It features 24 degrees of freedom that enable smooth, dynamic, and human-like joint movements. Powered by a dual-chip architecture combining Intel N97 and NVIDIA Jetson Orin processors, PM01 delivers advanced AI capabilities for real-time control and perception and has custom electric actuators providing up to 300 N·m of joint torque. The robot is ideal for research, education, and commercial applications, offering modular hardware expansion and extensive software customization.
Key facts
- Weight
- 42 kg
Detailed specifications
Motion & kinematics4
- Torque
- 300 N·m
- Dof Total
- 24
- Dof Per Arm
- 5
- Max Torque Density
- 203 N·m/kg
Power & battery1
- Charge Time Hours
- 2
Sensors1
- Sensor Suite
- stereo_depth_camera,360° LiDAR,multiple_HD_cameras
Compute2
- Ros Compatible
- true
- Onboard Compute
- Intel N97 CPU and NVIDIA Jetson Orin GPU
Other17
- Width Mm
- 490
- Height Mm
- 1388
- Length Mm
- 220
- Price Tier
- 20-40K
- Applications
- research,service robotics,automation
- Api Available
- true
- Pricing Model
- purchase
- Waist Rotation
- 320°
- Company Country
- CN
- Deployment Notes
- ENGINEAI and Duolun Tech plan to deploy over 2,000 humanoid robots in scenario-specific implementations.
- Running Speed Ms
- 2
- Walking Speed Ms
- 2
- Industries Served
- education,industrial automation,commercial applications
- Availability Status
- available
- Programming Interface
- code_ros
- Additional Information
- - Designed for superior agility and stability with advanced body movement control algorithms. - Provides low-level hardware interfaces and extensive code support for training and deployment. - Integrates cutting-edge algorithms for optimal performance in diverse terrains. - Features a multi-dimensional interactive core display and a signature star halo light for enhanced interaction.
- Deployment Environment
- indoor
