Overview

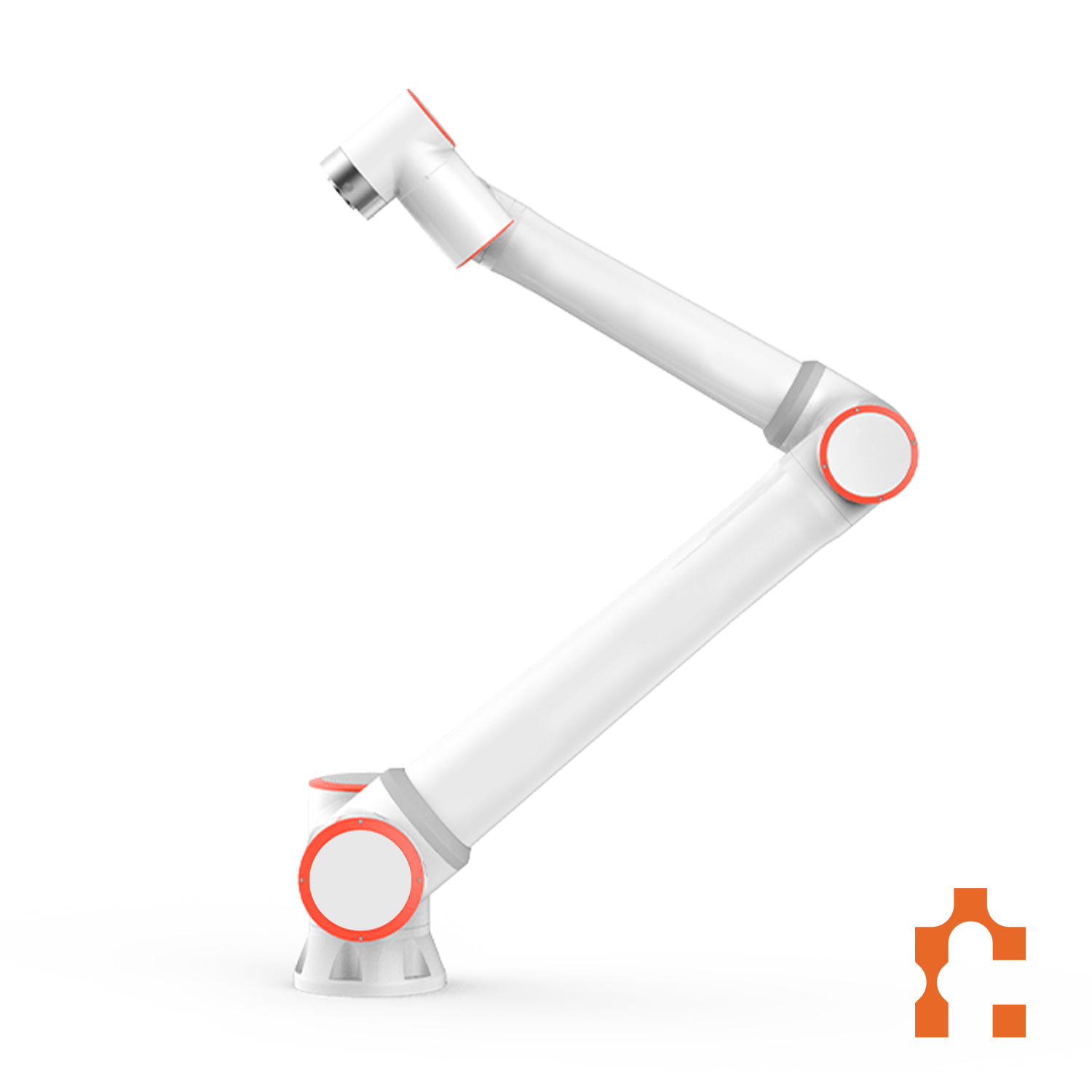

The FAIRINO FR20 is a powerful 6-axis collaborative robot arm (cobot), designed for flexibility and ease of use. What makes this cobot special is its affordability, offering the same performance as competitors at a much lower price. The FR20 can be easily programmed through an intuitive web interface without coding for quick setup, or with advanced programming languages such as Python, C#, and C++ for more complex tasks. This makes the FR20 suitable for a wide range of applications, from assembly to welding.
Key facts
- Payload
- 3 kg
- Reach
- 622 mm
- DOF
- 6
- Repeatability
- ±0.1 mm
- TCP speed
- 2 m/s
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Repeatability Mm
- 0.1
Power & battery1
- Power Consumption W
- 620
Compute1
- Ros Compatible
- true
Other16
- FPGA
- {"Materials":"Aluminum, Steel","Footprint_mm":240,"I/O_Ports_Head":{"AI":1,"AO":1,"DI":2,"DO":2},"AC_Cable_Length_m":4,"Operating_Humidity":"90% RH","I/O_Ports_Controller":{"AI":2,"AO":2,"DI":16,"DO":16},"Peak_Power_Consumption_W":810,"Robot_Main_Cable_Length_m":4,"Safety_Box_Cable_Length_m":5}
- Noise DB
- <65 dB
- Price Tier
- 20-40K
- Applications
- assembly, welding
- Api Available
- true
- Max Speed M S
- 2
- Pricing Model
- purchase
- Operating Temp
- 0–45 °C
- Warranty Years
- 1.5
- Software Platform
- Web interface
- Training Required
- basic_<1day
- Fieldbus Protocols
- Modbus TCP, Modbus RTU, TCP/IP, Profinet, Ethernet/IP, CC-Link, EtherCAT
- Availability Status
- available
- Programming Interface
- no_code_gui, code_python, proprietary_app
- Additional Information
- - Trusted by automation leaders for efficiency and reliability. - Integrated Force-Torque sensor for precision tasks. - Quick programming enables non-experts to operate with ease. - Notable for significant reduction in defect rates in high-precision tasks.
- Max Angular Speed Deg S
- 180
