Overview

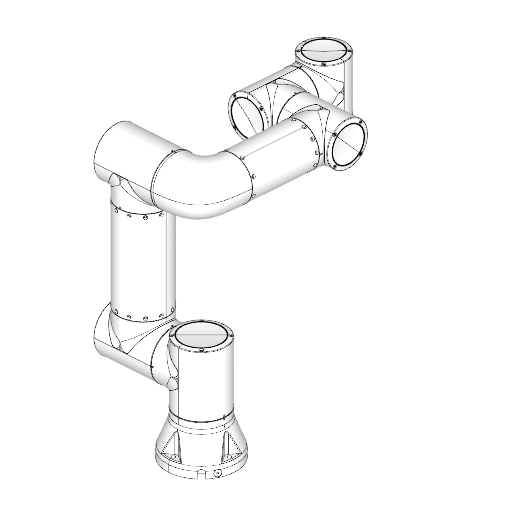

The Cobot FAIRINO FR3-WMS is a versatile 6-axis collaborative robot designed for efficient industrial automation. With a payload capacity of 3 kg and a reach of 622 mm, it boasts impressive repeatability of 0.02 mm and operates effectively within an ambient temperature range of 0-45 °C. This robust cobot, weighing 10.5 kg, is equipped with a DC or AC MINI Controller and offers various communication interfaces for seamless integration into your automation system.
Flagship features
- Features portability and rapid deployment
- Max torque for joints varies significantly for different configurations
- IP65 classification available as an option
- Operating humidity of 90%RH (non-condensing)
- Noise level below 65db
- Constructed from Aluminium and Steel materials
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 3 kg
- Reach
- 622 mm
- Repeatability
- ±0.02 mm
- Weight
- 10.5 kg
- TCP speed
- 1 m/s
- IP rating
- IP54
- Safety cert.
- ISO 9001, CE, IP65
- Force limiting
- Yes
- F/T sensing
- integrated wrist ft
- No-code
- Yes
- API / SDK
- Yes
Detailed specifications
Power & battery2
- Power Supply
- 30-60 VDC or 100-240 VAC 10A Single-phase 50/60Hz
- Power Consumption W
- 90
Compute1
- Ros Compatible
- true
Other18
- Axes
- 6
- Controller
- DC MINI Controller 2 kW / AC MINI Controller 2 kW
- Price Tier
- 40-80K
- Tool Flange
- 4 × M6 thread holes, bolt torque ≥8 Nm, strength class ≥8.8
- Applications
- deburring,multiaxis cutting,polishing,robot milling,trimming
- Pricing Model
- purchase
- Model Variants
- FR3,FR3-C,FR3-WML
- Operating Temp
- 0-45 °C
- Company Country
- China
- Deployment Notes
- The FR3-WMS is explicitly positioned for welding and complex welding scenarios where fast redeployment is useful, underscoring its application in small to medium fabrication settings.
- Mounting Options
- Any orientation
- Industries Served
- automotive,3C,food_and_beverage,healthcare
- Software Platform
- ENCY Robot
- Training Required
- basic_<1day
- Fieldbus Protocols
- I/O,TCP/IP,Modbus TCP/RTU,Profinet,Ethernet/IP,EtherCAT,CC-Link
- Availability Status
- available
- Programming Interface
- teach_pendant
- Additional Information
- - Features portability and rapid deployment. - Max torque for joints varies significantly for different configurations. - IP65 classification available as an option. - Operating humidity of 90%RH (non-condensing). - Noise level below 65db. - Constructed from Aluminium and Steel materials.
