Overview

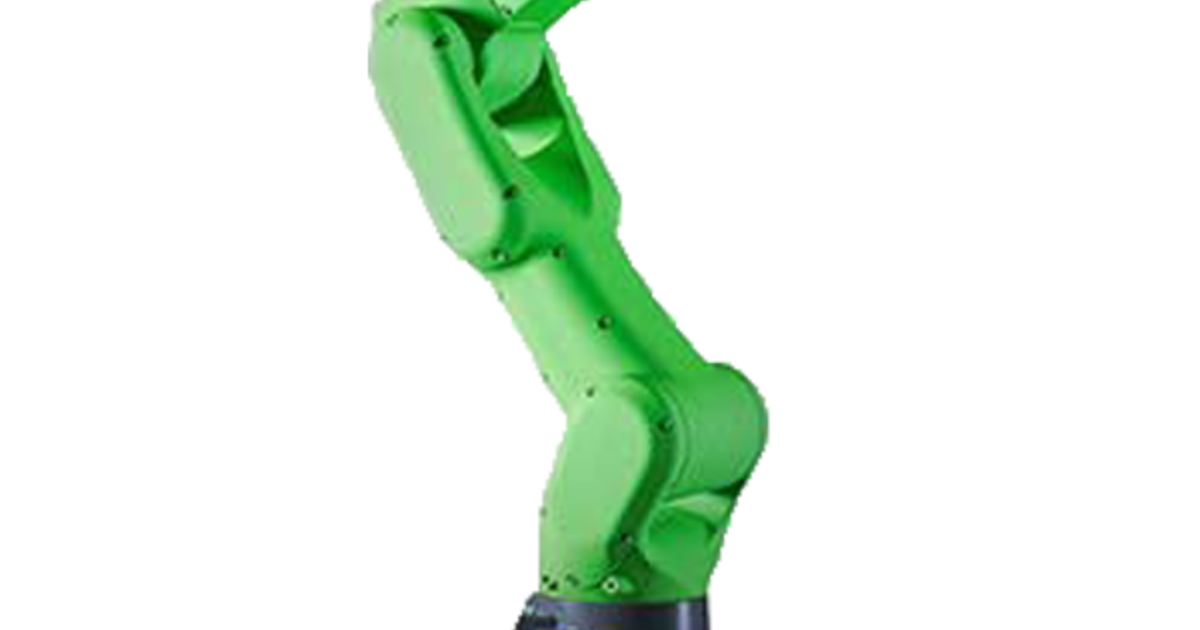

The Fanuc CR-7iA is Fanuc's newest collaborative robot resembling the LR Mate family. Painted green to show its ability to work beside humans, you can expect the same reliability as Fanuc's yellow robots. The CR-7iA is ideal for small part sorting and assembly, inspection, machine tending, and part delivery. It boasts a payload of 7 kg, a reach of 717 mm, and is equipped with iRVision and Force Sensing.
Key facts
- DOF
- 6
- Repeatability
- ±0.03 mm
Detailed specifications
Other3
- Motion Range
- {"J1":"±340°","J2":"±166°","J3":"±373°","J4":"±380°","J5":"±180°","J6":"±720°"}
- Motion Speed
- {"J1":"250 °/s (4.36 rad/s)","J2":"250 °/s (4.36 rad/s)","J3":"250 °/s (4.36 rad/s)","J4":"250 °/s (4.36 rad/s)","J5":"250 °/s (4.36 rad/s)","J6":"250 °/s (4.36 rad/s)"}
- Contact Emails
- sales@robots.com,info@robots.com
