Overview
3 kg payload
Key facts
- Payload
- 10 kg
- Reach
- 1,000 mm
- Speed
- 2 m/s
- Weight
- 12.5 kg
- IP rating
- —
- Battery
- —
- Power
- —
- Autonomy
- —
- Launch year
- 2017
- Price
- $15,000
- Status
- active
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Repeatability Mm
- 0.05
Power & battery1
- Power Consumption W
- 450
Compute1
- Ros Compatible
- true
Safety & certifications1
- Safety Certification
- CE
Other18
- Price Tier
- 40-80K
- Applications
- pick_and_place, machine_tending, quality_inspection, welding, gluing
- Datasheet Url
- https://qviro.com/product/hans-robots/elfin-e3/specifications
- Max Speed M S
- 2
- Pricing Model
- purchase
- Model Variants
- Elfin10, E3, E5, E5-L, E10, E15
- Operating Temp
- 0°C to 50°C
- Company Country
- CN
- Lead Time Weeks
- 2
- Mounting Options
- floor, ceiling, wall, rail
- Industries Served
- automotive, electronics, healthcare
- Training Required
- none
- Fieldbus Protocols
- EtherCAT, TCP/IP
- Availability Status
- available
- Compatible Grippers
- vacuum gripper, soft gripper, servo gripper
- Extras.Contact Emails
- sales@bluestar-ee.com
- Programming Interface
- teach_pendant, drag_and_drop, visual_block
- Additional Information
- Compact and requires up to 50% less floor space compared to standard industrial robots., Fast, stable EtherCAT bus communication enables excellent control performance., Open source ROS interface improves connectivity and programmability.

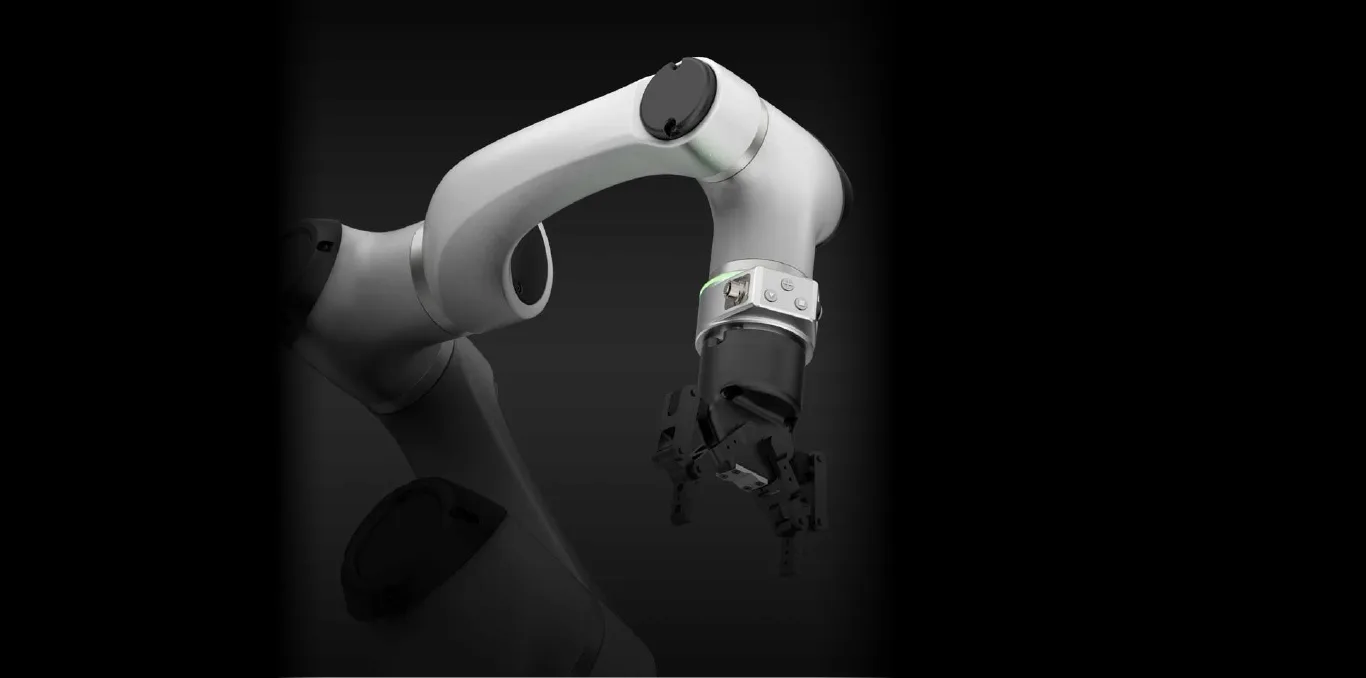

Reviews for Elfin E3 cobot
