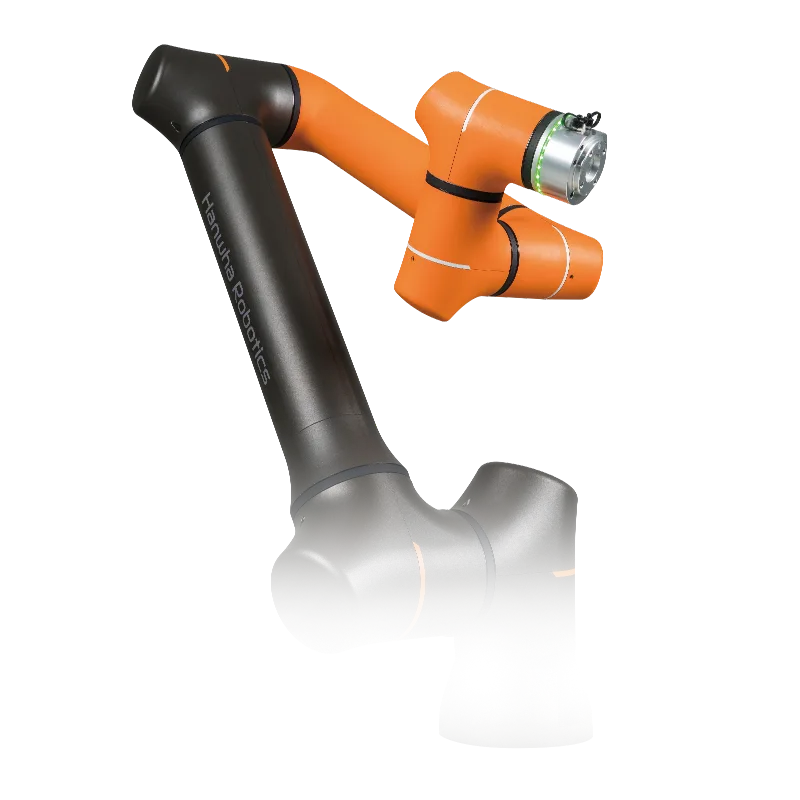

The HCR is a Cobot developed by HANWHA (South Korea), launched 2017. Key specifications: axes 6, payload 4.5 kg, reach 625 mm, repeatability ±0.02 mm.
RoboScore
Strong evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Not in the Cobot standing. The standings cover robots first sold from 2020 onward, and this one launched in 2017. Its Robo Score above is unaffected — the score is the evidence, the standing is only who it is listed against.
See the Cobot standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how HCR measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
Hanwha Robotics HCR is a series of collaborative robots (cobots) designed for direct human-robot collaboration without extensive safety fencing. Leveraging Hanwha's precision design and control technology, the HCR series offers high reliability, precision, and user-friendly operation across various industrial automation applications. The lineup includes models with payloads from 3kg to 32kg and reaches from 630mm to 1820mm. Key features include a proprietary control and operating software, a 3D vision solution (Robot AI Vision), visual safety with redundant cameras, 2D marker positioning for mobile applications, and high environmental certifications (ISO Class 2 cleanroom).
Flagship features
- **Quality & Durability:** High-end reducers, proven components, and metal materials for high reliability
- **High Precision & Usability:** In-house developed control and operating software provides high control performance and flexible operation
- **Safety/Environment Certifications:** Domestic and international safety certifications; highest cleanroom certification (ISO Class 2) among collaborative robots
- **Robot AI Vision:** AI/deep learning-based 3D Vision solution for recognizing objects of various sizes and shapes
- **Visual Safety:** Redundant 3D cameras and functional safety enable safe robot operation without fences
- **2D Marker Positioning:** Position compensation for robot arm when mounted on mobile collaborative robot platforms
Buyer decision signals
Viability
Hanwha Robotics officially inaugurated
Availability
Specifications
Category: Cobot- Axes
- 6
- Payload
- 4.5 kg
- Reach
- 625 mm
- Repeatability
- ±0.02 mm
- Weight
- 10.9 kg
- TCP speed
- 0.5 m/s
- IP rating
- IP66
- Safety cert.
- CE, ISO, SIL
- Force limiting
- Yes
- F/T sensing
- none
- No-code
- Yes
Top 79% of 429 models with this spec
Top 87% of 401 models with this spec
Top 12% of 371 models with this spec
Top 89% of 242 models with this spec
Company profile
- Founded
- 2022
Detailed specifications
What it is built for1
- Sub Category
- welding
Sensing & perception1
- Force Torque Present
- Yes
Controls & integration1
- Connectivity Options
- ethernet
Safety & certification1
- Noise Level Db
- 60
Buying & support3
- Price Tier
- 40-80K
- Model Variants
- HCR-3A,HCR-5A,HCR-5W,HCR-10L,HCR-12A,HCR-14,HCR-32
- Availability Status
- available
Other details8
- Visual Safety
- Redundant 3D cameras, functional safety
- Lineup Payloads
- {"HCR-14":"14 kg","HCR-32":"32 kg","HCR-3A":"3 kg","HCR-5A":"5 kg","HCR-5W":"4.5 kg","HCR-10L":"10 kg","HCR-12A":"12 kg"}
- Lineup Reach Mm
- {"HCR-14":1420,"HCR-32":1820,"HCR-3A":630,"HCR-5A":915,"HCR-5W":625,"HCR-10L":1800,"HCR-12A":1300}
- Quality Features
- High-end reducers, validated components, metal materials
- Ai Vision Solution
- Robot AI Vision (3D, deep learning)
- Mobile Positioning
- 2D Marker Positioning
- Lineup Robot Weight Kg
- {"HCR-14":42,"HCR-32":82,"HCR-3A":13,"HCR-5A":21,"HCR-5W":10.9,"HCR-10L":45,"HCR-12A":53}
- Cleanroom Certification
- ISO Class 2
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
14 other robots in this category have one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with HANWHA or an authorized seller.
Request a quote — goes straight to HANWHA.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- 2023LaunchHanwha Robotics officially inaugurated
- 2022MilestoneHanwha Robotics Co., Ltd. established
- 2020MilestoneDivision name changed to Hanwha Momentum
- 2017LaunchFirst collaborative robots introduced
- —LaunchHanwha Robotics launches HCR Advanced Series
- —LaunchHCR Advanced Series introduced
Compare with peers
More by HANWHA
More videos
Hanwha Robotics | HCR-14 | Introduction Video
HCR Manual 21 - Robodyn 3D Modeling
HCR Manual 20 - SA Tracker 사용 Manual
HCR Manual 19 - 3세대 Calibration
HCR Manual 01 - Product Overview & Installation
HCR Manual 03 - Product Specifications
HCR Manual 02 - Overview of Part's name & Function
HANWHA in the news
the maker8 events · last 12 months
Hanwha Robotics Gets KRW 23 Billion Lifeline as Kim Dong-seon Doubles Down
HANWHA in the news
the maker8 events · last 12 months
News about HANWHA, the maker — not about this robot specifically, except rows marked this robot. Collected and classified independently across 9 outlets, so a maker cannot add to it. It never changes this robot's RoboScore — the evidence half of the RoboIndex — and it can move it up a board by at most 15 points. See all HANWHA news
Frequently asked questions
- Who makes the HCR?
- The HCR is developed by HANWHA, based in South Korea.
- What type of robot is the HCR?
- The HCR is a Cobot made by HANWHA.
- How much does the HCR cost?
- Pricing for the HCR is not publicly listed — contact HANWHA for a quote.
- When was the HCR launched?
- The HCR was launched in 2017.
- What are the key specifications of the HCR?
- Key specifications of the HCR: axes 6, payload 4.5 kg, reach 625 mm, repeatability ±0.02 mm, weight 10.9 kg.
