The HY1006A-144 is a Industrial Arm developed by Shandong Fast CNC Machinery (China), launched 2017, priced at $6,390 USD. Key specifications: arm class welding, axes 6, payload 6 kg, reach 1400 mm.
Robo Index
Strong evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how HY1006A-144 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview

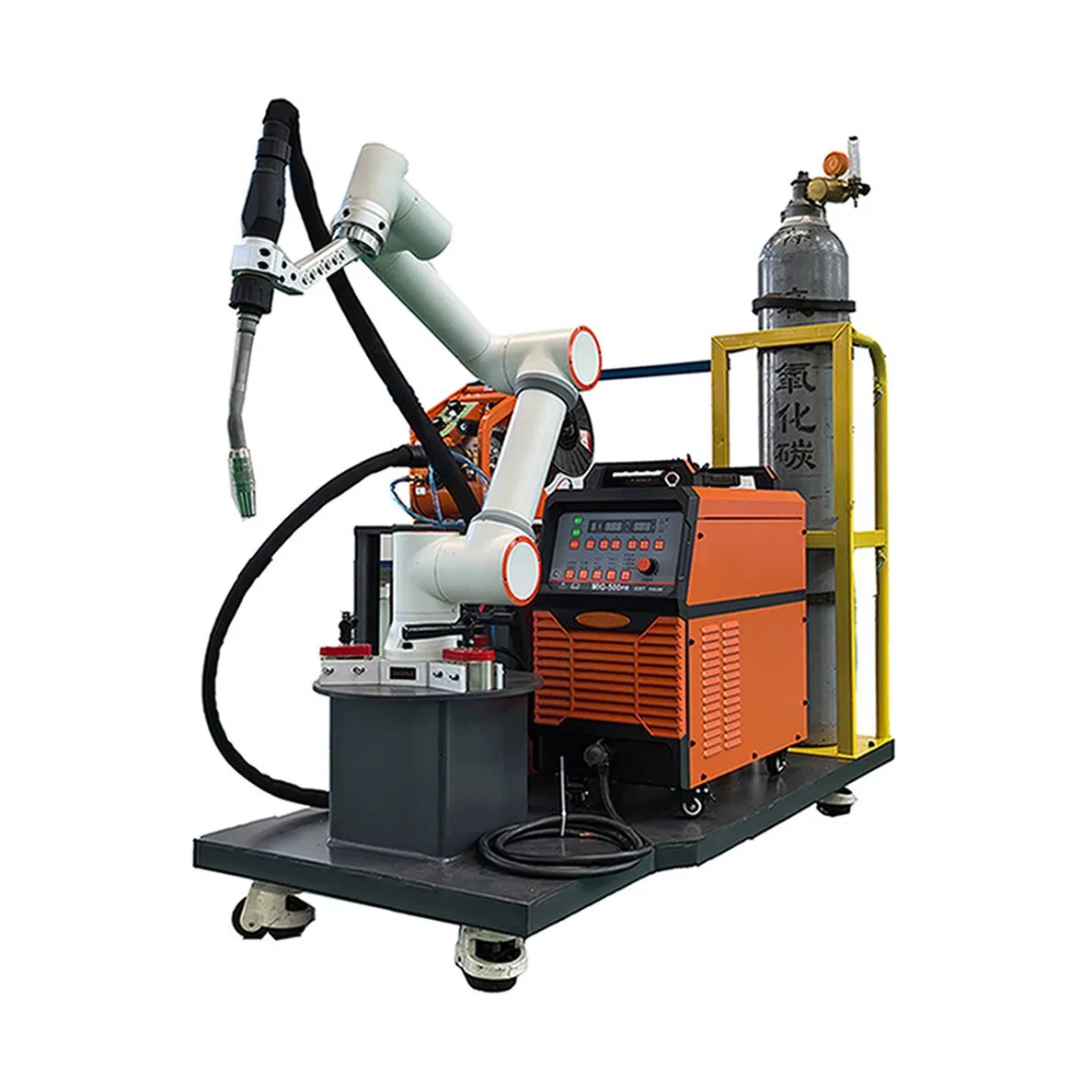

Collaborative robot welding machine (programming-free robot welding machine) Robot welding machines are industrial automation equipment that integrate precision mechanics, intelligent control, and sensor technology. They use multi-joint manipulators equipped with welding guns and other end effectors to perform automated welding operations on metal components under the coordinated action of control and sensor systems.
Flagship features
- Specialist in automation solutions concentrating on intelligent robotic applications for welding and cutting
- Operates in 56 countries, providing comprehensive services from pre-sales to after-sales
- Focused on helping metal industries enhance quality and efficiency
Buyer decision signals
Viability
Company establishment listed on supplier page
Price
purchase
Availability
Specifications
Category: Industrial Arm- Arm class
- welding
- Axes
- 6
- Payload
- 6 kg
- Reach
- 1400 mm
- Repeatability
- ±0.02 mm
- Weight
- 50 kg
- IP rating
- IP54
- Mounting
- floor, ceiling
- Controller
- Robotics Controller 2.0
- Programming
- teach pendant
- Safety cert.
- CE, ISO 10218-1
- Force limiting
- No
- Maturity
- commercial
- Industries
- welding
Company profile
- Founded
- 2023
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Positioning Accuracy
- ±0.05mm
Power & battery2
- Power Consumption W
- 500
- Welding Machine Power
- {"HX-922":"350A","HX-1400":"500A","HX-1800":"500A"}
Compute2
- Ros Compatible
- true
- Package Gross Weight
- 200
Other26
- Origin
- China
- Trademark
- HUAXIA
- Price Tier
- 20-40K
- Applications
- arc_welding
- Cycle Time S
- 0.3
- Package Size
- 150.00cm * 200.00cm * 220.00cm
- Sub Category
- 6-axis cobot
- Api Available
- true
- Arm Span Size
- {"HX-922":922,"HX-1400":1400,"HX-1800":1800}
- Max Speed M S
- 2
- Pricing Model
- purchase
- Specification
- 2500mm*1000mm*2050mm
- Model Variants
- HX-922,HX-1400,HX-1800
- Operating Temp
- 0°C to 50°C
- Warranty Years
- 2
- Company Country
- CN
- Lead Time Weeks
- 6
- Deployment Count
- 300
- Deployment Notes
- Widely used in automotive and electronics assembly lines. Partnerships with major manufacturing firms.
- Arc Welding Speed
- 0.5-2m/min
- Software Platform
- Robotics Studio
- Fieldbus Protocols
- EtherCAT,Profinet
- Availability Status
- available
- Compatible Grippers
- GripperTech Model G1
- Countries Available
- CN,Europe,North America,South America,Asia,Australia,Africa
- Additional Information
- - Specialist in automation solutions concentrating on intelligent robotic applications for welding and cutting. - Operates in 56 countries, providing comprehensive services from pre-sales to after-sales. - Focused on helping metal industries enhance quality and efficiency.
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Shandong Fast CNC Machinery Co., Ltd or an authorized seller.
Request a quote — goes straight to Shandong Fast CNC Machinery Co., Ltd.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Jan 2023MilestoneCompany establishment listed on supplier page
Frequently asked questions
- Who makes the HY1006A-144?
- The HY1006A-144 is developed by Shandong Fast CNC Machinery, based in China.
- What type of robot is the HY1006A-144?
- The HY1006A-144 is a Industrial Arm made by Shandong Fast CNC Machinery.
- How much does the HY1006A-144 cost?
- The HY1006A-144 is priced $6,390 USD.
- When was the HY1006A-144 launched?
- The HY1006A-144 was launched in 2017.
- What are the key specifications of the HY1006A-144?
- Key specifications of the HY1006A-144: arm class welding, axes 6, payload 6 kg, reach 1400 mm, repeatability ±0.02 mm.
